Piston compressor

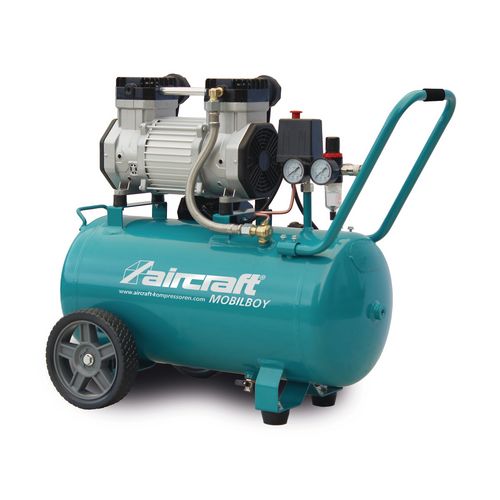

MOBILBOY SILENCE 401/50 OF E
Oil-free, very quiet compressor for mobile use
299,00
EUR excl. Tax / pc(s).
355,81 EUR incl. 19% Tax / pc(s).
355,81 EUR incl. 19% Tax / pc(s).
Promotional price *
269,00 EUR excl. Tax / pc(s).320,11 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 28.02.2025 in Germany.
Art.-No. 2002401
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Very smooth operation and therefore very quiet
- Oil-free piston compressor: no oil change necessary and no oil in the condensate for best working quality
- Compressed air reducer for stepless adjustment of the desired working pressure
- High-quality pressure switch
- Electric motor equipped with motor protection switch
- Fully automatic on/off operation
- One pressure gauge each for displaying the tank and working pressure
- Powder-coated compressed air tank
- Oil-free compressor, no oil change and no oil in condensate
- Very smooth and quiet
- One pressure gauge for displaying the container and working pressure
| Compressed air tank | |
|---|---|
| Maximum pressure | 10 bar |
| Pressure vessel capacity | 50 l |
| Tank vertical / horizontal | Prone |
| Tank surface | powder-coated |
| Compressor | |
|---|---|
| Compressor system | WDS |
| Oil-free / oil-lubricated | Oil-free |
| Suction capacity approx. | 400 l/min |
| Filling capacity approx. | 200 l/min |
| Explanation filling capacity | at 6 bar working pressure |
| Number of cylinders | 2 |
| Number of compressor stages | 1 |
| Piston stroke | 18 mm |
| Diameter of piston | 69.7 mm |
| Dimensions and weights | |
|---|---|
| Length approx. | 800 mm |
| Width/depth approx. | 360 mm |
| Height approx. | 720 mm |
| Weight approx. | 40 kg |
| Electrical Data | |
|---|---|
| Delivery power | 2,2 kW |
| Supply voltage | 230 V |
| Mains frequency | 50 Hz |
| Noise emission | |
|---|---|
| Sound pressure level Lp | 67 dB(A) |
| Explanation sound pressure level Lp | Sound pressure level at a distance of 1 m according to DIN 45635 T 13 |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
| Pressure regulation | Filter pressure regulator |
| Automatic pressure switch | ✔ |
| Drive transmission | Direct-coupled |
| Material compressed air line | Flexible armored conduit with heat protection |
| Connection cable | 1.5 m |
| Connector | CEE 7/4 |
| Compressed air outlet | Two one hand quick coupling |
| Pressure vessel | Powder-coated |
| Compressor base | Two wheels with solid rubber tyres, two rubber buffers |
