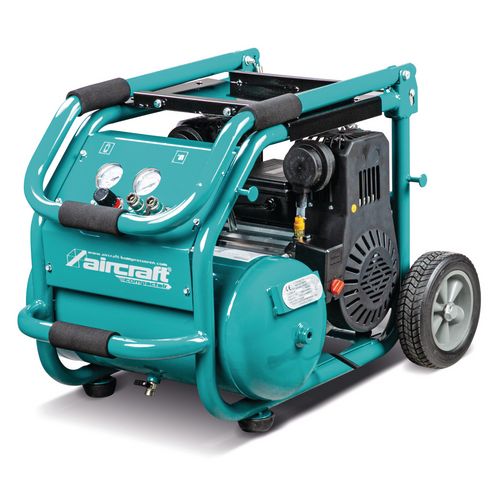

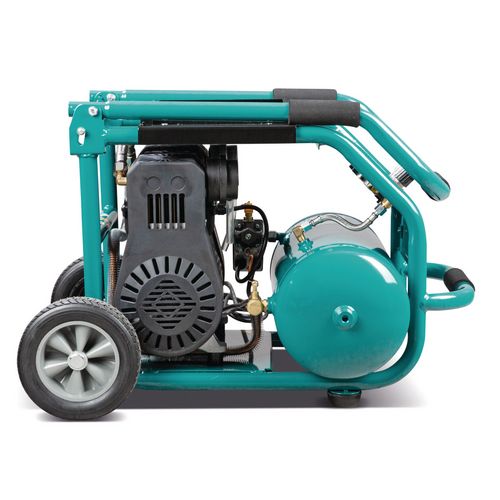

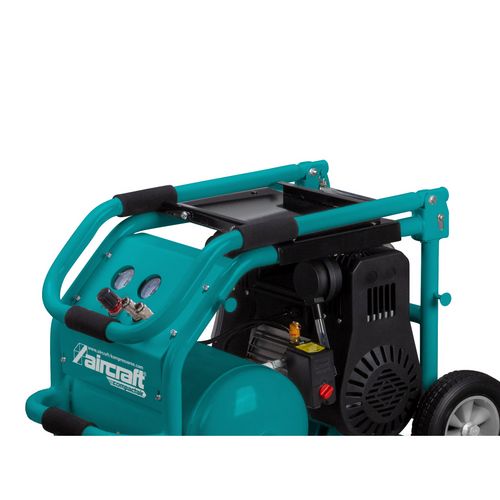

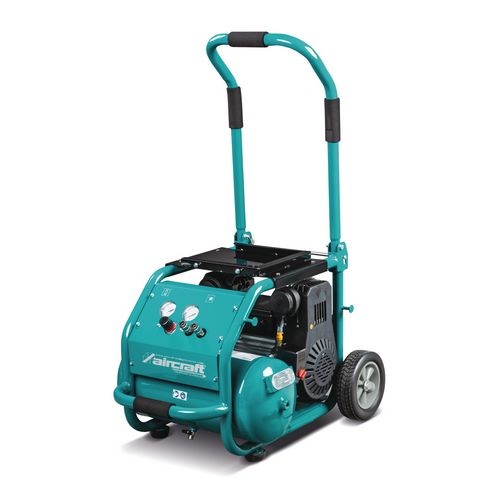

Piston compressor
COMPACT-AIR 320/24 OF E
Handy and mobile oil-free universal compressor
825,00
EUR excl. Tax / pc(s).
981,75 EUR incl. 19% Tax / pc(s).
981,75 EUR incl. 19% Tax / pc(s).
Promotional price *
699,00 EUR excl. Tax / pc(s).831,81 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 31.08.2025 in Germany.
Art.-No. 2005495
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Versatile use
- Also ideally suited in the demanding assembly and craftsman sector
- Switches and fittings are very well protected by the frame

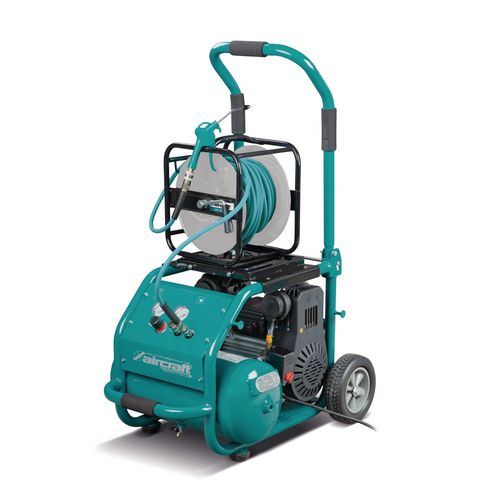

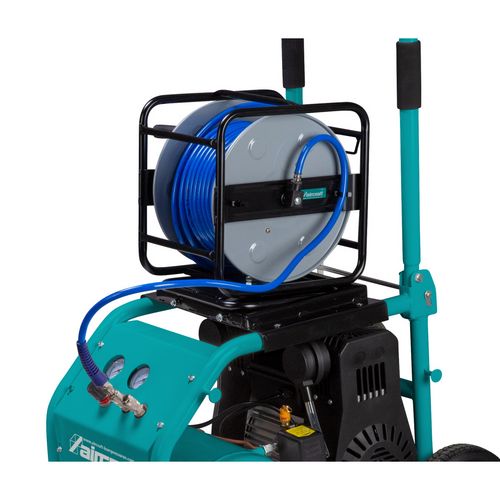

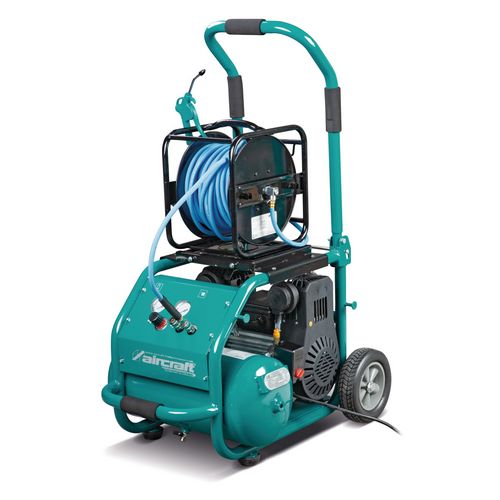

- Convenient reel holder integrated in the frame
- Oil-free piston compressor, thus no oil change necessary and no oil in the condensate
- Air sampling over two one-hand quick couplings

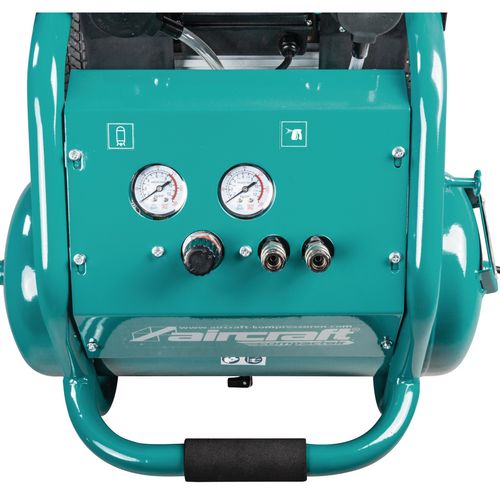

- Pressure regulator for stepless adjustment of the desired working pressure
- Based on a pressure gauge for display of the container and work pressure
- Electric motor equipped with motor protection switch
- Sturdy wheels with solid rubber tires and wide wheel base for comfortable transport also on uneven surfaces and stable stand
- Vibration damping rubber feet
- Hand grip rubberized slipping during transport and space saving foldable
- Additional handle for comfortable carrying of the compressor
- Compressed air tank powder coated
| Compressed air tank | |
|---|---|
| Maximum pressure | 10 bar |
| Pressure vessel capacity | 24 l |
| Tank surface | Powder-coated |
| Compressor | |
|---|---|
| Oil-free / oil-lubricated | Oil-free |
| Suction capacity approx. | 320 l/min |
| Filling capacity approx. | 230 l/min |
| Explanation filling capacity | at 6 bar working pressure |
| Number of cylinders | 2 |
| Number of compressor stages | 1 |
| Dimensions and weights | |
|---|---|
| Max. height | 1140 mm |
| Length approx. | 535 mm |
| Width/depth approx. | 785 mm |
| Height approx. | 535 mm |
| Weight approx. | 54 kg |
| Electrical Data | |
|---|---|
| Delivery power | 1,55 kW |
| Supply voltage | 230 V |
| Mains frequency | 50 Hz |
| Noise emission | |
|---|---|
| Whisper quiet | Yes |
| Sound power level Lw | 84 dB(A) |
| Explanation sound power level Lw | Sound power level according to DIN EN ISO 3744 (RL 2000/14/EG) |
| Sound pressure level Lp | 72 dB(A) |
| Explanation sound pressure level Lp | Sound pressure level at a distance of 1 m according to DIN 45635 T 13 |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
| Drive transmission | Direct-coupled |
| Connection cable | 2.8 m |
| ZÜS tested | Testing before commissioning can also be carried out by a qualified person |
