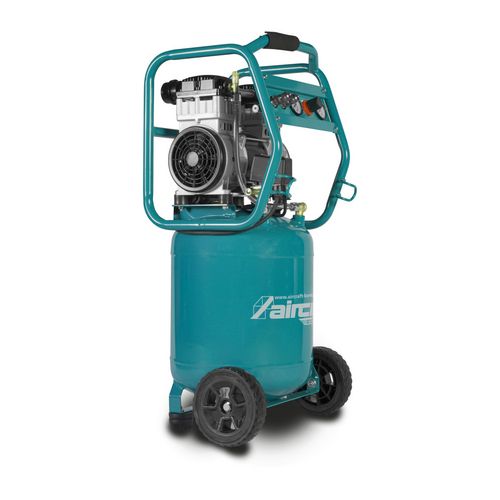

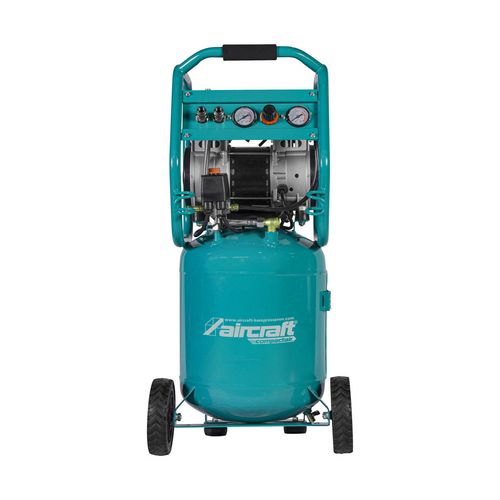

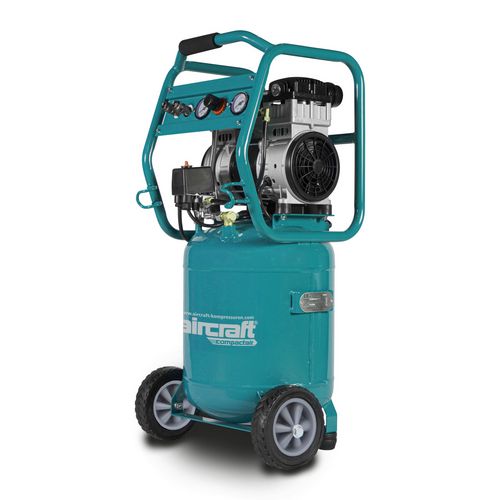

Piston compressor
COMPACT-AIR 240/40 V OF E
Handy and mobile oil-free universal compressor
569,00
EUR excl. Tax / pc(s).
677,11 EUR incl. 19% Tax / pc(s).
677,11 EUR incl. 19% Tax / pc(s).
Promotional price *
479,00 EUR excl. Tax / pc(s).570,01 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 28.02.2025 in Germany.
Art.-No. 2005493
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Versatile use
- Steel frame protects the unit, switches and fittings from shocks all around
- Oil-free piston compressor, thus no oil change necessary and no oil in the condensate
- Compressed air withdrawal via two one-hand quick couplings
- Pressure reducer for stepless adjustment of the desired working pressure

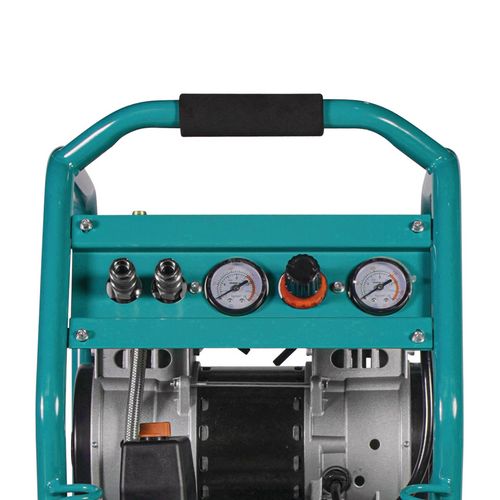

- One pressure gauge each for displaying the tank pressure and the working pressure
- Electric motor equipped with motor protection switch
- Sturdy wheels with solid rubber tires and wide wheelbase for comfortable transport even on uneven surfaces and stable standing
- Vibration damping rubber feet
- Rubberized handle to prevent slipping during transport
| Compressed air tank | |
|---|---|
| Maximum pressure | 10 bar |
| Pressure vessel capacity | 40 l |
| Compressor | |
|---|---|
| Compressor system | WDS |
| Suction capacity approx. | 240 l/min |
| Filling capacity approx. | 140 l/min |
| Explanation filling capacity | at 6 bar working pressure |
| Number of cylinders | 2 |
| Number of compressor stages | 1 |
| Dimensions and weights | |
|---|---|
| Length approx. | 460 mm |
| Width/depth approx. | 390 mm |
| Height approx. | 930 mm |
| Weight approx. | 42 kg |
| Electrical Data | |
|---|---|
| Delivery power | 1,38 kW |
| Drive motor output | 1,1 kW |
| Supply voltage | 230 V |
| Mains frequency | 50 Hz |
| Noise emission | |
|---|---|
| Sound power level Lw | 84 dB(A) |
| Explanation sound power level Lw | Sound power level according to DIN EN ISO 3744 (RL 2000/14/EG) |
| Sound pressure level Lp | 72 dB(A) |
| Explanation sound pressure level Lp | Sound pressure level at a distance of 1 m according to DIN 45635 T 13 |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
| Pressure regulation | Pressure regulator |
| Automatic pressure switch | ✔ |
| Drive transmission | direct drive |
| Material compressed air line | Flexible armoured hose line |
| Compressed air outlet | Two one-hand quick couplings |
| Pressure vessel | Powder-coated |
| Compressor base | Two wheels with solid rubber tyres, two rubber buffers |
| Connection cable | 2.8 m |
| Connector | CEE 7/4 |
