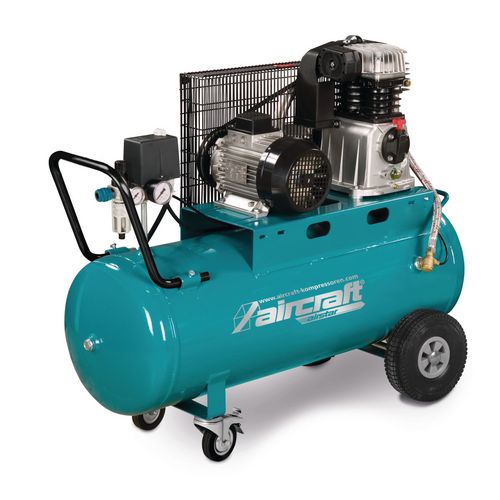

Piston compressor
AIRSTAR 503/100
solid, professionally equipped craftsman compressors with proven belt drive and two-cylinder high-performance unit made of gray cast iron
1.339,00
EUR excl. Tax / pc(s).
1.593,41
EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 2009531
Are you interested in this product?
Put a request
Find Trader
Productdetails

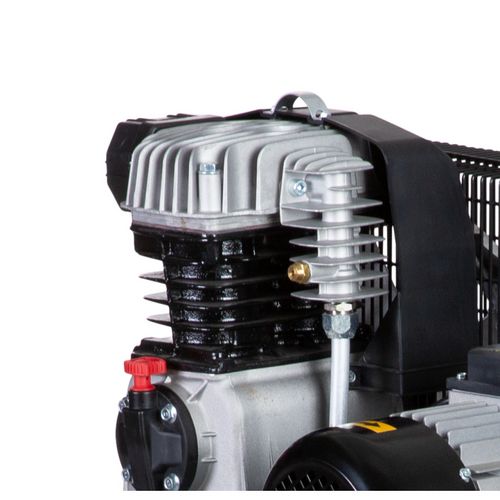

- 2-cylinder high-performance cast iron units for a long service life
- Large fan wheel and a cooling air baffle on the cylinder for optimum cooling of the compressor
- High quality electric motor with high torque
- Electric motor equipped with motor protection switch
- After cooler with cooling fins ensures a low container inlet temperature and thus less moisture in the compressed air
- Stable belt guard made of metal
- Start-up capacitor and start-up relief valve ensure easy start-up on 230 volt models
- 400 volt models with phase inverter as standard for easy manual reversal of the direction of rotation
- Compressed air tank equipped with safety valve, tank pressure gauge and condensate drain valve
- With all safety devices
- Fully wired
- Filter pressure regulator with a pressure gauge for regulated and compressed air cleaned of condensate, dirt and oil, second pressure gauge for tank pressure
- Ten-year rust-through warranty on powder-coated compressed air tank
- With quality quick couplings and high-quality CONDOR pressure switch
- With flexible armored hose line with heat protection for a long service life, since no vibration breakage is possible
- With ergonomic handle and transport handle on the compressed air tank for easy transport
- With sturdy steering wheel with parking brake in conjunction with large, puncture-proof wheels for a comfortable transport
The equipment of the mobile AIRSTARs
- At the pressure regulator, you can fix the working pressure infinitely and remove compressed air with reduced pressure.

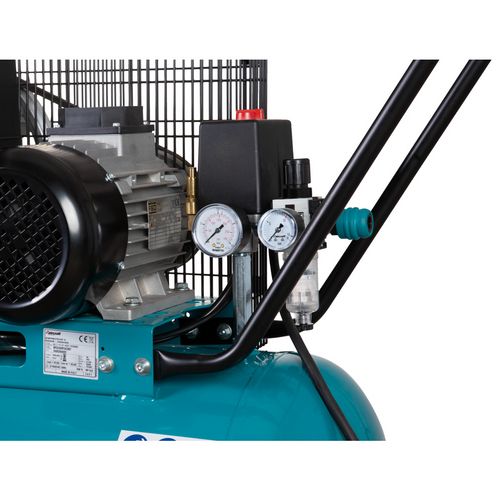

- Two pressure gauges show the tank u. Working pressure
- With filter pressure regulator
- Standard with quality quick couplings and high quality CONDOR pressure switch
- Aftercooler with large cooling fins ensures a low container inlet temperature and thus less moisture in the compressed air.
- This protects the connected compressed air tools.

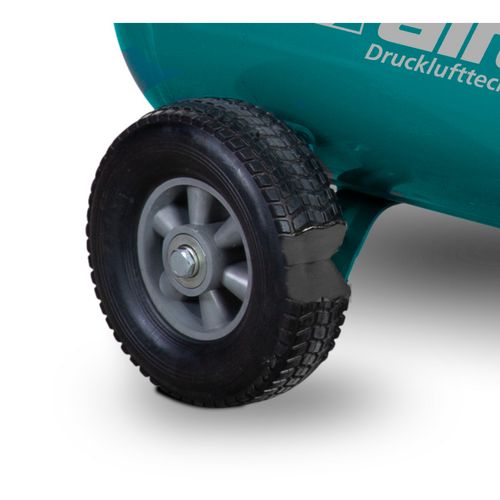

- Tire puncture proof, because not filled with air but with PU foam
- As a result, no flat tires longer possible, with full comfort
- With sturdy steering gear with parking brake
Only available in Austria!
| Compressed air tank | |
|---|---|
| Maximum pressure | 10 bar |
| Pressure vessel capacity | 100 l |
| Compressor | |
|---|---|
| Compressor system | HOS |
| Suction capacity approx. | 510 l/min |
| Filling capacity approx. | 400 l/min |
| Explanation filling capacity | at 6 bar working pressure |
| Number of cylinders | 2 |
| Number of compressor stages | 1 |
| Dimensions and weights | |
|---|---|
| Length approx. | 1125 mm |
| Width/depth approx. | 480 mm |
| Height approx. | 925 mm |
| Weight approx. | 75 kg |
| Electrical Data | |
|---|---|
| Delivery power | 3 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Noise emission | |
|---|---|
| Sound power level Lw | 94 dB(A) |
| Explanation sound power level Lw | Sound power level according to DIN EN ISO 3744 (RL 2000/14/EG) |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
| Pressure regulation | Quality filter pressure regulator |
| Automatic pressure switch | CONDOR |
| Drive transmission | V-belt |
| Material compressed air line | Flexible armored conduit with heat protection |
| Compressed air treatment | Filter pressure regulator |
| Compressed air outlet | A quality safety quick coupling |
| Condensate drain | Condensate drain valve |
| Pressure vessel | Powder-coated with a ten-year guarantee against rusting through |
| ZÜS tested | Testing before commissioning can also be carried out by a qualified person |

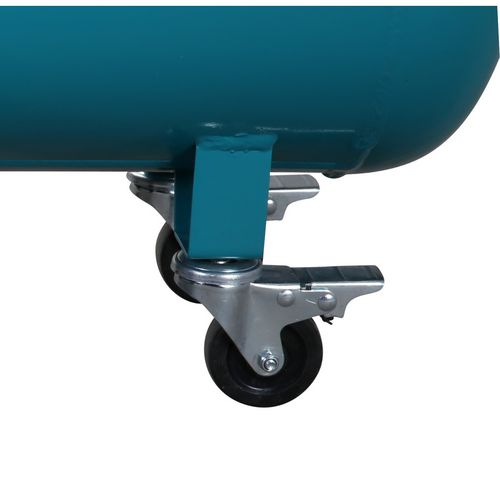

| Compressor base | Two wheels with PU foam tires, two swivel castors with locking brake |
