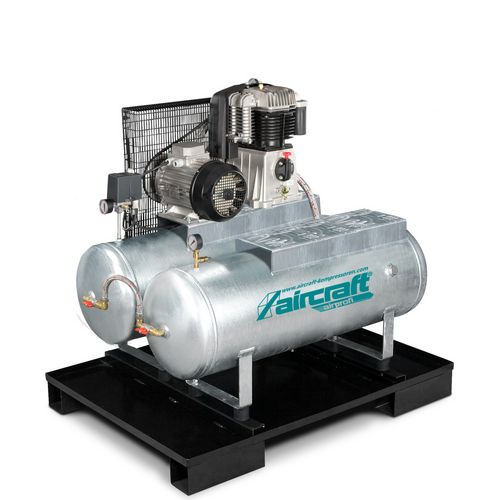

Stationary piston compressor with 2x 100 liter compressed air tanks
AIRPROFI DUO 853 / 2x100 / 10
Universal compressed air station with 2 x 100 L compressed air tanks ready mounted on a safety stand pallet, space-saving and transportable
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 2023085
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Two-stage compression 2-cylinder high-performance unit with cast iron cylinder block
- The low speed ensures quiet, low-vibration operation and a long service life
- Large fan wheel for optimal cooling
- High quality electric motor with high torque
- Electric motor equipped with motor protection switch
- With phase inverter for easy manual reversal of the direction of rotation
- Intermediate and aftercooler reduces the formation of condensation
- Maintenance block with two pressure gauges for tank pressure and working pressure and high quality CONDOR pressure switch
- Fifteen-year rust-through warranty on inside and outside hot-dip galvanized compressed air tank
- Fully automatic on-off operation
- Ready for connection with all fittings
Increased flexibility
- By connecting the second compressed air tank, the container volume is doubled, whereby a higher air supply can be established
- An increased demand for air can thus be covered in the short term.
- The second compressed air tank can be disconnected from the compressed air supply e.g. for chiselling or sandblasting. This halves the container volume and pressure builds up faster.
Equipment details:
- K version with refrigeration dryer with integrated automatic steam trap as standard
- Pressure dew point 5 °C, compressed air inlet temperature 35 °C, cooling air temperature 25 °C
- K version additionally with pre-filter for separating condensate and solid impurities with particles up to 1 μm
- Compressed air quality according to ISO 8573-1
- As a pre-filter in front of the refrigeration dryer
- KK version with automatic steam trap on the compressed air tank
- This condensate drainage without unnecessary pressure loss
- Condensate conditioner for oil-water separation
| Compressed air tank | |
|---|---|
| Maximum pressure | 10 bar |
| Pressure vessel capacity | 200 l |
| Explanation Pressure vessel capacity | 2 x 100 l |
| Compressor | |
|---|---|
| Compressor system | HOS |
| Suction capacity approx. | 850 l/min |
| Filling capacity approx. | 680 l/min |
| Explanation filling capacity | at 6 bar working pressure |
| Number of cylinders | 2 |
| Number of compressor stages | 2 |
| Dimensions and weights | |
|---|---|
| Length approx. | 1200 mm |
| Width/depth approx. | 900 mm |
| Height approx. | 1140 mm |
| Weight approx. | 235 kg |
| Electrical Data | |
|---|---|
| Delivery power | 5.5 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Noise emission | |
|---|---|
| Sound pressure level Lp | 83 dB(A) |
| Explanation sound pressure level Lp | Sound pressure level at a distance of 1 m according to DIN 45635 T 13 |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- Two-stage compression two-cylinder high-performance unit
- Automatic CONDOR pressure switch
- 2 x inside and outside hot-dip galvanized compressed air tank
- ZÜS type tested
- 1 pressure gauge for tank pressure
- 1x 3/4 inch air outlet on the boiler
- 1x 1/2 inch air outlet on the refrigerant dryer
- Flexible reinforced hoses with heat protection
- safety valve
- Shock mounts
- Ready for connection with all fittings
- On safety stand
| Automatic pressure switch | CONDOR |
| Drive transmission | V-belt |
| Material compressed air line | Flexible armored conduit with heat protection |
| Compressed air outlet | Ball valve |
| Condensate drain | 3/8" ball valve on each tank |
| Pressure vessel | Hot-dip galvanized inside and out with a fifteen-year guarantee against rust |
| ZÜS tested | Testing before commissioning can also be carried out by a qualified person |
| Compressor base | Swing elements, safety stand pallet |
