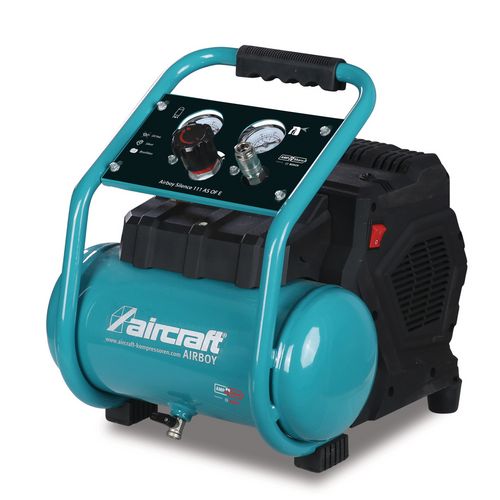

Piston compressor
Portable, oil-free compressor with six-liter tank capacity
269,00
EUR excl. Tax / pc(s).
320,11
EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 2000108
Compressed air tank | |
---|---|
Maximum pressure | 8 bar |
Pressure vessel capacity | 6 l |
Tank surface | powder-coated |
Compressor | |
---|---|
Oil-free / oil-lubricated | Oil-free |
Suction capacity approx. | 93 l/min |
Filling capacity approx. | 50 l/min |
Dimensions and weights | |
---|---|
Length approx. | 370 mm |
Width/depth approx. | 355 mm |
Height approx. | 410 mm |
Weight approx. | 14.9 kg |
Explanation Weight approx. | Without battery |
Electrical Data | |
---|---|
Drive motor output | 0.4 kW |
Supply voltage | 18 V |
Noise emission | |
---|---|
Sound pressure level Lp | 60 dB(A) |
VPE | 1 |
Pressure regulation | Pressure regulator |
Automatic pressure switch | ✔ |
Compressed air outlet | A one-hand quick coupling |
Condensate drain | Ball valve |
Pressure vessel | Powder-coated |
Compressor base | Vibration damping rubber feet |
If a guarantee is shown in the article description and/or in the description of the scope of delivery, your legal rights of liability for defects towards your seller remain unaffected. For the scope, duration, content and the guarantor, please refer to the guarantee conditions. We are not liable for printing errors, mistakes or incorrect presentation. Technical and optical changes are reserved. Fig. partly with optional accessories. Delivery is made exclusively according to our terms of delivery and payment. The sale is carried out via the specialized trade.
