Piston compressor

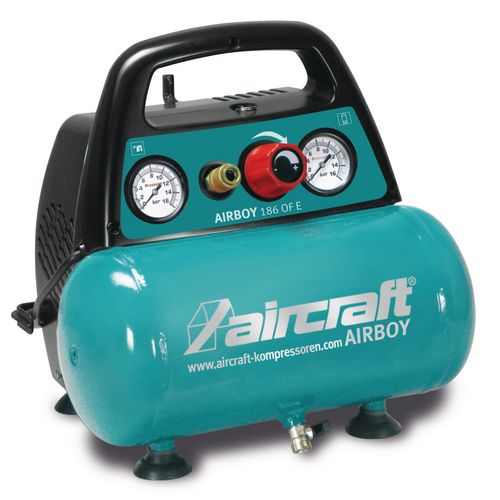

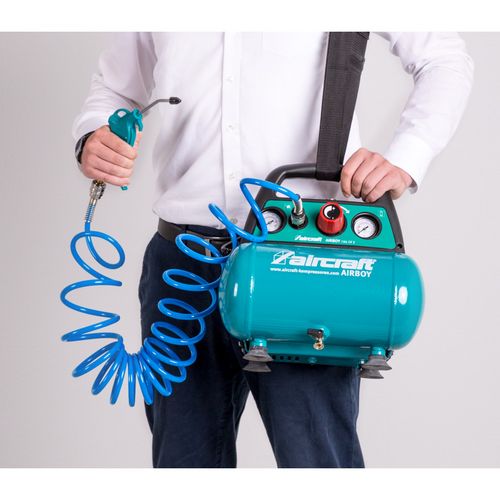

Portable compressor
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 28.02.2025 in Germany.
Art.-No. 2001230
Compressed air tank | |
---|---|
Maximum pressure | 8 bar |
Pressure vessel capacity | 6 l |
Compressor | |
---|---|
Compressor system | WDS |
Suction capacity approx. | 180 l/min |
Filling capacity approx. | 90 l/min |
Explanation filling capacity | at 6 bar working pressure |
Number of cylinders | 1 |
Number of compressor stages | 1 |
Dimensions and weights | |
---|---|
Length approx. | 315 mm |
Width/depth approx. | 355 mm |
Height approx. | 370 mm |
Weight approx. | 9.2 kg |
Electrical Data | |
---|---|
Supply voltage | 230 V |
Mains frequency | 50 Hz |
Noise emission | |
---|---|
Sound power level Lw | 97 dB(A) |
Explanation sound power level Lw | Sound power level according to DIN EN ISO 3744 (RL 2000/14/EG) |
VPE | 1 |
Pressure regulation | Pressure regulator |
Automatic pressure switch | ✔ |
Drive transmission | Direct-coupled |
Material compressed air line | Aluminum |
Compressed air outlet | A one-hand quick coupling |
Pressure vessel | Powder-coated |
Compressor base | Four suction cups |
Connection cable | 1,2 m |
