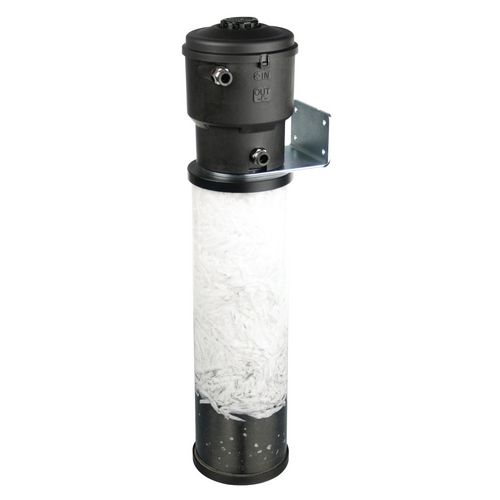

Oil-water separator
WOS 2
Patented technology
205,00
EUR excl. Tax / pc(s).
243,95
EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 2058220
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Thanks to patented technology, regular service is possible in only 30 seconds and without expensive cleaning
- Wall and floor mounting possible
- Works reliably with any steam trap
- Suitable for all common compressor oils
- Operating media: condensate (air, water, oil), non-aggressive, not suitable for emulsion
- Quick and clean change of the filter cartridge
- No settling tank necessary (no bacteria formation)
- Easy installation due to compact design and small dimensions
- Connection via quick couplings
Function Description:
- Multi-stage oil-water separation via an oil-attracting filter and activated carbon
- After the end of the service life of the filter element this is unscrewed and disposed of completely
- Filter element is tightly closed with plastic cover, so that residual condensate can remain in it
- Locked filter element can be disposed of according to current regulations
service interval
- after occurrence of one of the following three cases:
- 4,000 operating hours of the compressor at compressor oil transfer of 2.5 mg / m3
- Discoloration of the polypropylene medium - analysis by simple visual inspection
- At the latest after 12 months (regardless of the operating hours of the compressor)
| Max. oil capacity | 1.73 l |
| Residual oil content | < 20 ppm |
| Max. condensate flow | 1.87 l/h |
| Operating temperature | 1.5 – 45 (max. 65) °C |
| VPE | 1 |
| Connection | |
|---|---|
| Condensate feed | 8 mm |
| Water drain | 8 mm |
| Dimensions and weights | |
|---|---|
| Length approx. | 816 mm |
| Width/depth approx. | 146 mm |
| Height approx. | 106 mm |
| Maximum compressor output | |
|---|---|
| Maximum compressor output | 2.23 m³/min |
| Explanation Maximum compressor output | These performance data apply to temperate climates (eg Central and Southern Europe, Central America). If required, please request the compressor capacities for other climatic zones from us. |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
