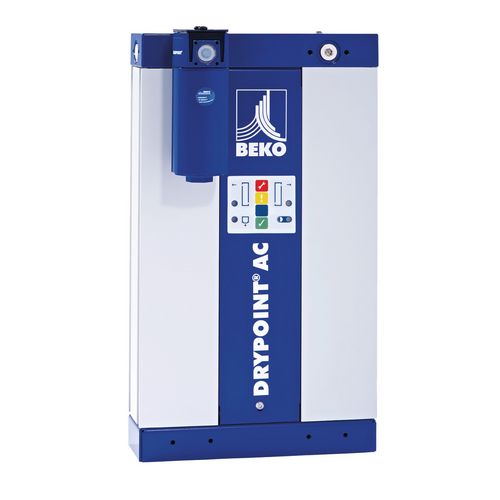

DRYPOINT AC 196

• Very compact due to aluminum profiles, highly effective adsorbent and integrated dust filter
• Prestressed adsorbent: this also makes horizontal operation possible and dryer insensitive to vibrations
• Prestressed adsorbent: therefore horizontal operation possible and dryer insensitive to vibrations
• Service and maintenance-friendly due to service display, desiccant cartridges, self-diagnosis, function display, PC interface
• Energy-saving thanks to standard memory function (compressor synchronization control); Optional additional programming option for performance adjustment

Features:

Adsorbents in exchangeable cartridges

• Dust filter elements integrated in exchangeable cartridges
• Adsorbent in spring loaded cartridges
• Adsorbent: molecular sieve

Display with displays for:

• Power supply
• Valve function left / right
• Prepare service (11,500 and 23,500 operating hours)
• Service required (12,000 and 24,000 operating hours)
• LED-coded error messages for the function of the solenoid valves and the electronics
• steam traps in operation

Electronic control:

• broadband power supply for 100 - 240 VAC; 50 - 60 Hz, 12 - 24 VDC
• processor with CPU, self-diagnosis
• service reset
• PC interface for program adaptation and error diagnosis, optional PC software
• energy management; Energy saving through compressor synchronization
• Potential-free fault signaling contact

Filtration

• CLEARPOINT micro filter at the dryer inlet
• Dust filter integrated in exchangeable cartridges

steam trap

• Integrated steam trap (time-controlled solenoid valve) or alternatively: BEKOMAT 20 FM on the inlet filter
