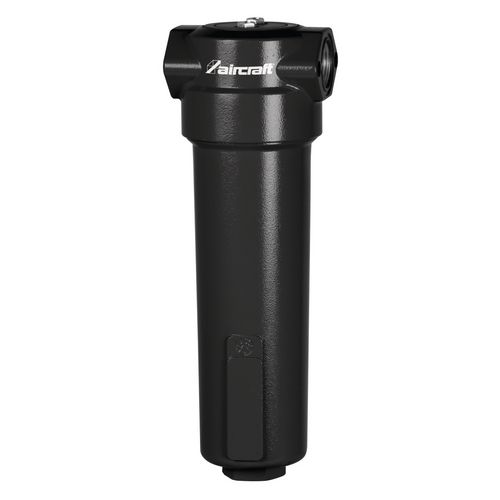

Nanofilters
ANF 0510
Optimum air quality for all applications
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 2053440
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Compressed air filters are used for highly efficient removal of solid particles, water, oil, aerosols, hydrocarbons, odors and vapors from compressed air systems.
- To achieve the required quality of compressed air, filters that gradually remove all types of solid and liquid contaminants from the compressed air must be installed in the compressed air line
- Your advantages through better quality compressed air:
- Safe filtration of both liquids such as water and aerosols as well as particles, dust and gases
- Better working and production conditions
- Optimum protection of connected tools and machines
- Improved product quality through reduction of rejects
- Protection of the compressed air system against contamination
- Increase of productivity by reduction of instant maintenance
- for separating solid contaminants up to 0.01μm
- Residual oil aerosol content up to 0.01 mg / m³ at 20 ° C and 1 bar
- Operating temperature 1.5 to 65 ° C
- absolute compressed air quality according to ISO 8573-1
- for safe separation of condensate and particles

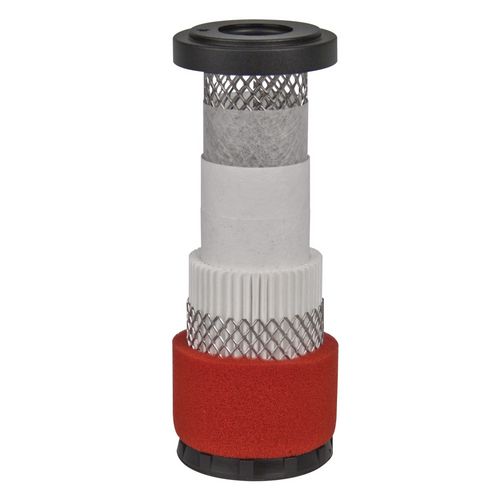

- complete with filter element and float valve
| Volume flow m³/h | 510 test |
| Volume flow l/min | 8500 l/min |
| Volume flow measured at operating pressure | 7 bar |
| Air connection | 1.5 " |
| VPE | 1 |
| Dimensions and weights | |
|---|---|
| Width/depth approx. | 125 mm |
| Height approx. | 461 mm |
| Technical data | |
|---|---|
| Particle size | 0,01 μm |
| Residual oil aerosol content | 0,01 mg/m³ |
