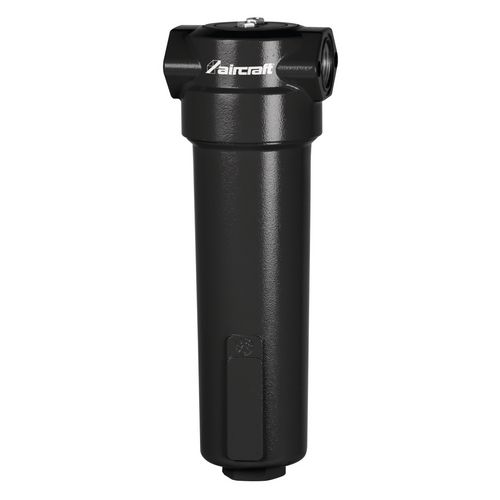

Activated carbon filter
AAF 0335
Optimum air quality for all applications
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 2053538
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Compressed air filters are used for highly efficient removal of solid particles, water, oil, aerosols, hydrocarbons, odors and vapors from compressed air systems.
- To achieve the required quality of compressed air, filters that gradually remove all types of solid and liquid contaminants from the compressed air must be installed in the compressed air line
- Your advantages through better quality compressed air:
- Safe filtration of both liquids such as water and aerosols as well as particles, dust and gases
- Better working and production conditions
- Optimum protection of connected tools and machines
- Improved product quality through reduction of rejects
- Protection of the compressed air system against contamination
- Increase of productivity by reduction of instant maintenance
- for the separation of oil vapors, odors and flavorings via adsorption and in the second stage of solid particles
- Residual content of oil vapor up to 0.005 mg / m³ at 20 ° C and 1 bar
- Operating temperature 1.5 to 45 ° C
- Compressed air quality according to ISO 8573-1
- For compressed air of the highest quality, eg, for breathing air, in analytical technology or semi-luxury bottling
- Pure compressed air in connection with upstream ultrafine filter

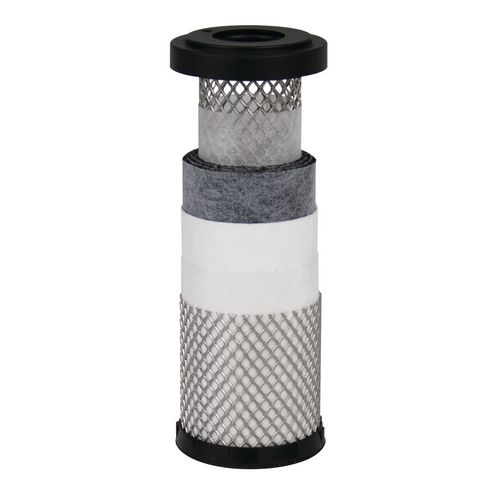

- with filter element and manual drain
| Volume flow m³/h | 335 test |
| Volume flow l/min | 5580 l/min |
| Volume flow measured at operating pressure | 7 bar |
| Air connection | 1 " |
| Min. operating temperature | 1,5 °C |
| Max. operating temperature | 45 °C |
| VPE | 1 |
| Dimensions and weights | |
|---|---|
| Width/depth approx. | 125 mm |
| Height approx. | 363 mm |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
| Drainage | Float valve |
