    Brandimage to Product

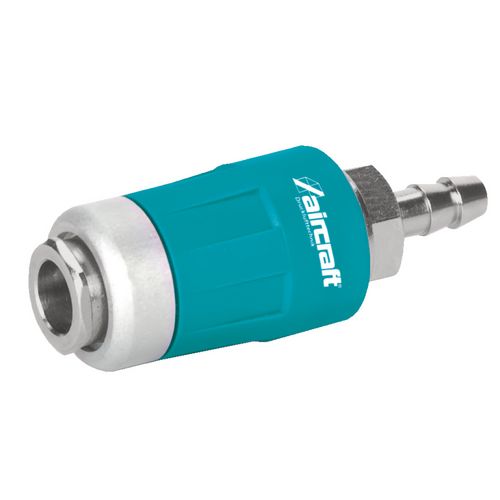

    Safety quick coupling

    with hose nozzle

    pressure-free coupling of the plug nipple systems from Germany, Switzerland, Italy and the USA

    From 20,90 EUR excl. Tax / pc(s).
    From 24,87 EUR incl. 19% Tax / pc(s).
    Promotional price *
    From 17,50 EUR excl. Tax / pc(s).
    From 20,83 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 28.02.2025 in Germany.

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Variations

    General Price Promotional price *
    TitleArt.-No.Connection dimensions (mm)VPE EUR excl. TaxEUR incl. 19% TaxEUR excl. TaxEUR incl. 19% Tax
    with hose nozzle 6 mm22031076122,5026,78--
    8 mm with hose nozzle22031088121,9026,0617,5020,83
    10 mm with hose nozzle220310910122,5026,7818,5022,02
    13 mm with hose nozzle220311113120,9024,87--
    Select Attributes
    General
    Price

    Productdetails

    • Comfortable, safety couplings
    • AIRCRAFT is the first manufacturer to use one-hand safety clutches as standard equipment at all compressed air supply points in the Airprofi series.


    Your benefits at a glance:
    work safety

    • No parts and dirt particles are thrown off
    • No whipping of the hose as in a conventional quick disconnect coupling
    • The system fulfills the requirements of ISO 4414 and is BIA compliant. Increased safety standard in the workplace as standard!


    Very high flow rate
    High resistance

    • Plug nipple is not exposed to mechanical stress, brass nipples also last longer


    Comfort

    • COMFORT safety couplings - incomparably easy to use
    • Pressure-free coupling Nipple guide with two fingers possible


    Universal clutch

    • Equally applicable with the plug nipple systems from Germany, Switzerland, Italy and the USA



    ConnectionHose nozzle
    Throughput at 6 bar2500 l/min
    Dimensions and weights
    Length approx.81 mm
    Diameter (product) approx.28 mm
    Weight approx.125 g
    Technical data
    Maximum pressure20 bar
    Temperature-15 – 80 °C
    Plug-in nipple systemGerman, Swiss, Italian, US-American
    Unit: pc(s).
