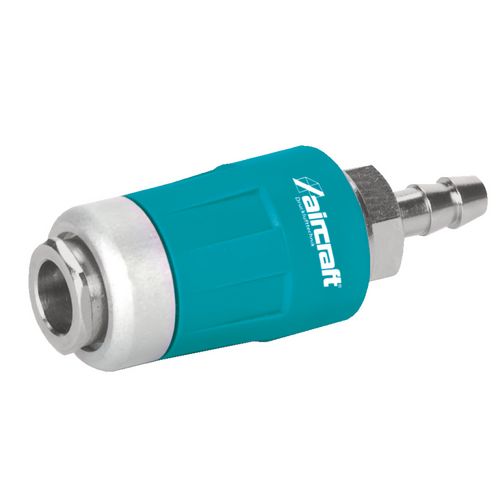

Safety quick coupling
13 mm with hose nozzle
pressure-free coupling of the plug nipple systems from Germany, Switzerland, Italy and the USA
20,90
EUR excl. Tax / pc(s).
24,87
EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 2203111
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Comfortable, safety couplings
- AIRCRAFT is the first manufacturer to use one-hand safety clutches as standard equipment at all compressed air supply points in the Airprofi series.
Your benefits at a glance:
work safety
- No parts and dirt particles are thrown off
- No whipping of the hose as in a conventional quick disconnect coupling
- The system fulfills the requirements of ISO 4414 and is BIA compliant. Increased safety standard in the workplace as standard!
Very high flow rate
High resistance
- Plug nipple is not exposed to mechanical stress, brass nipples also last longer
Comfort
- COMFORT safety couplings - incomparably easy to use
- Pressure-free coupling Nipple guide with two fingers possible
Universal clutch
- Equally applicable with the plug nipple systems from Germany, Switzerland, Italy and the USA
| Connection | Hose nozzle |
| Connection dimensions | 13 mm |
| Throughput at 6 bar | 2500 l/min |
| VPE | 1 |
| Dimensions and weights | |
|---|---|
| Length approx. | 81 mm |
| Diameter (product) approx. | 28 mm |
| Weight approx. | 125 g |
| Technical data | |
|---|---|
| Maximum pressure | 20 bar |
| Temperature | -15 – 80 °C |
| Plug-in nipple system | German, Swiss, Italian, US-American |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
