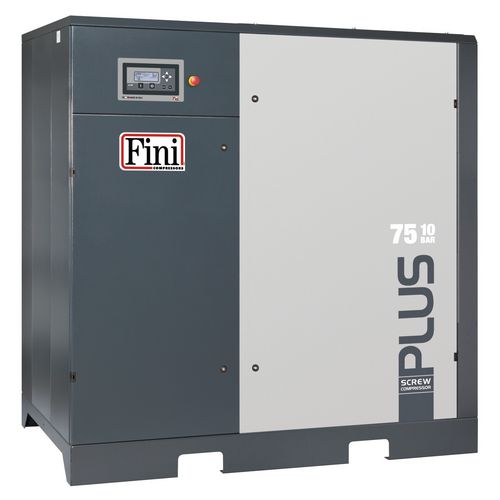

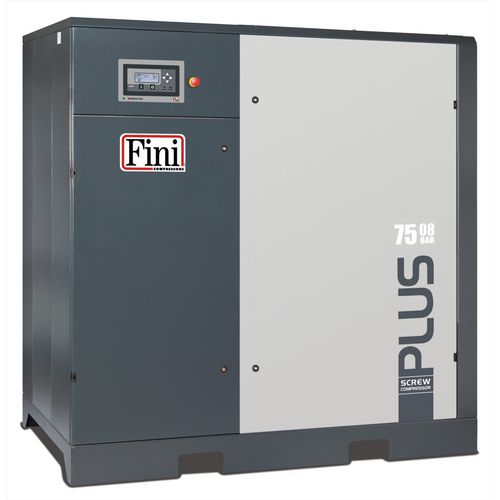

Screw compressor
PLUS 75-08
Soundproofed from 30 to 75 kW
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 2954802
Are you interested in this product?
Put a request
Find Trader
Productdetails
- All main components of the compressor are manufactured by machining using numerically controlled machine tools, including suction regulator, separator block and minimum pressure valve
- The cooling takes place via a temperature-controlled centrifugal fan and an oversized combination cooler. This ensures optimal cooling even under the most extreme conditions.
- Generous access panels allow easy maintenance and immediate control of the internal components, reducing the time required for inspection and maintenance to one medium.
- The main operating parameters are monitored by the electronic microprocessor control NRG: In addition to the various functions, a weekly timer for switching on and off is available to meet the requirements of each customer. In addition, up to 4 machines can be controlled simultaneously according to the master / slave principle.
- Standard with star-delta connection
Energy savings through frequency-controlled compressors
- Today, reducing energy consumption has become a global challenge given its impact on the environment.
- One of the biggest challenges of our time is to reduce energy consumption and protect our precious energy resources.
- The A-PLUS 22, 37, 55 and 75kW range is also available in a speed control version that combines high performance with energy saving solutions.
Room amenities:
Minimum pressure valve
- Made of oxidation-resistant material
- Great care in manufacturing ensures safe operation even under the most extreme conditions
Prefilter panel
- The cabin is equipped with a pre-filter plate, which retains the dusts and ensures that the inside of the machine is kept clean.
| Effective delivery volume approx. | 12200 l/min |
| Maximum Pressure | 7,5 bar |
| Air outlet | 2 " |
| VPE | 1 |
| Dimensions and weights | |
|---|---|
| Length approx. | 1800 mm |
| Width/depth approx. | 1100 mm |
| Height approx. | 2150 mm |
| Weight approx. | 1720 kg |
| Electrical Data | |
|---|---|
| Absorbed power electric motor | 75 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Motor(s) | |
|---|---|
| Motor type | Electrical |
| Noise emission | |
|---|---|
| Sound pressure level Lp | 72 dB(A) |
| Explanation sound pressure level Lp | Sound pressure level at a distance of 1 m according to DIN 45635 T 13 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
| Drive transmission | Ribbed belt |
