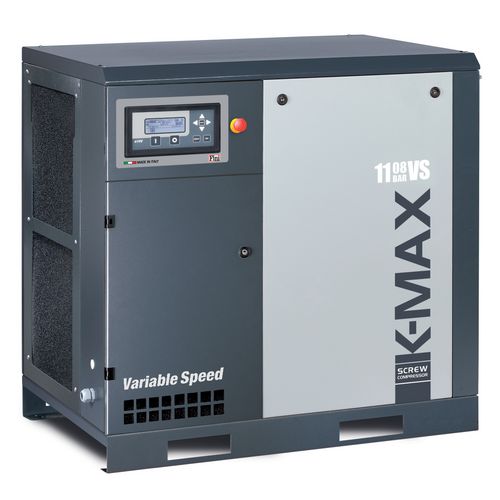

Screw compressor
K-MAX 1108 VS
Direct-coupled for continuous operation and 100% utilization - with frequency control (SpeedTronic Control)
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 2965702
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Absolute Low maintenance drive with maximum energy efficiency through direct-coupled coaxial screw compressors
- Standard EasyTronic IV control prevents engine overload, reduces wear and ensures a longer service life
- High cooling effect and lower noise level due to thermostatically controlled centrifugal fan
- Longer life of the device and lower fluctuations of the oil temperature thanks to thermostatically controlled fan, optimal cooling air flow and generously dimensioned heat exchanger
- Less effort for drying and filtration of the compressed air generated by integrated aftercooler
- Secured maintenance intervals by recording the load and follow-up times via operating hours counter
- Display of the maintenance requirement via automatic message
- Avoidance of damage during commissioning or after relocation due to integrated direction of rotation control for the motor
- Service-friendly due to optimal accessibility and easy assembly / disassembly of all serviceable components
- Easy transport and setup due to small outer dimensions
- Monitoring of engine and compressor speed by SpeedTronic Control
Equipment details:
- Highest safety even at high temperatures due to rubber hoses with steel braid sheathing
- Clean interior by cleaning the incoming cooling and intake air via a pre-filter mat
- High cooling effect and lower noise level due to thermostatically controlled centrifugal fan
Energy savings with frequency-controlled compressors:
- Based on the frequency converter technology, the delivery volume of the compressor adapts to the actual consumption. The electronic control monitors the engine and compressor speed and keeps the network pressure constant. The user receives advanced advanced technology in a small space.
Your advantages:
- Active energy saving
- Ideal for frequently changing compressed air consumption
- The variable speed compressor achieves maximum efficiency and keeps the network pressure constant, even when consumption fluctuates widely.
| Effective delivery quantity of up to approx. | 680 1700 l/min |
| Maximum Pressure | 8 bar |
| Air outlet | 3/4 " |
| VPE | 1 |
| Dimensions and weights | |
|---|---|
| Length approx. | 1000 mm |
| Width/depth approx. | 700 mm |
| Height approx. | 1000 mm |
| Weight approx. | 240 kg |
| Electrical Data | |
|---|---|
| Absorbed power electric motor | 11 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Motor(s) | |
|---|---|
| Motor type | Electrical |
| Noise emission | |
|---|---|
| Sound pressure level Lp | 68 dB(A) |
| Explanation sound pressure level Lp | Sound pressure level at a distance of 1 m according to DIN 45635 T 13 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
| Drive transmission | Direct coupling |
| Compressor type | FSC 50 |
