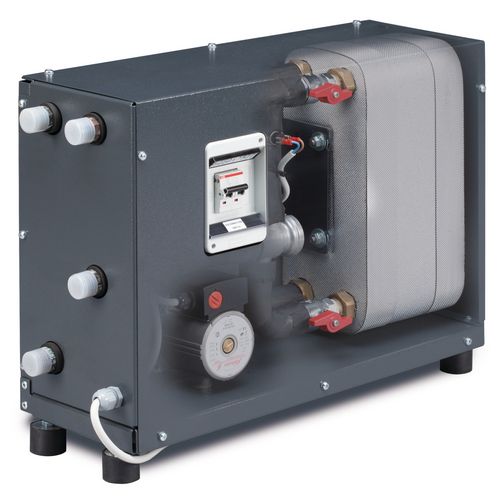

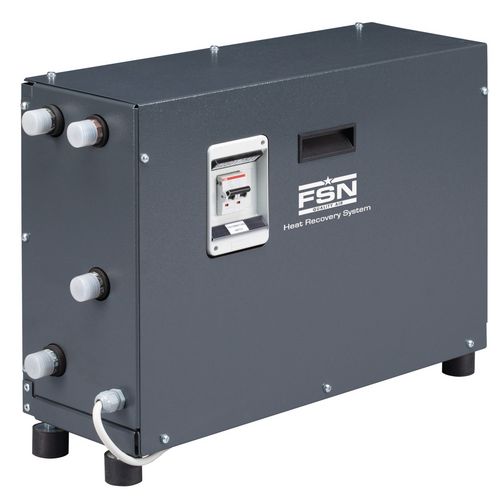

Heat recovery module with thermostatic valve IN
External heat recovery module for service water support in the heating circuit. Save money and save the environment!
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 2049902
Approximately 90% of the heat lost in the compressor during operation. In times of constantly rising electricity and energy costs, this heat can be used meaningfully. With the HRS heat recovery module you can save money in your company. An integrated plate heat exchanger additionally heats your water.
Facts and arguments:
The amount of recovery depends on the size of the compressors and the type of energy exchanged (electricity, gas, fuel oil), but for compressors with 11 kW connected power and above, such an investment becomes interesting. In view of the current energy costs, the depreciation period of heat recovery systems is between 6 months and 2 years (for a plate heat exchanger for heating systems).
Heat recovery provides a real opportunity to increase the effectiveness of a compressed air system. The energy cost implications are three times greater than those of a variable speed compressor and 20 times greater than those of an IE3 or permanent magnet motor.
Compressor output | 18.5 – 22 kW |
Operating pressure | 10 bar |
Thermostat | NYL 43.-15 |
Thermostat valve | X1.252 71 |
Max. flow rate | 3.5 m³/h |
Max. exchange performance | 17.5 kW |
Oil temperature at inlet | 80 °C |
Oil temperature at outlet | 70 °C |
Water inlet temperature | 50 °C |
Water outlet temperature | 60 °C |
Plate heat exchanger | 20 St |
VPE | 1 |
Dimensions and weights | |
---|---|
Weight approx. | 24.4 kg |
Electrical Data | |
---|---|
Supply voltage | 230 V |
Mains frequency | 50 Hz |
