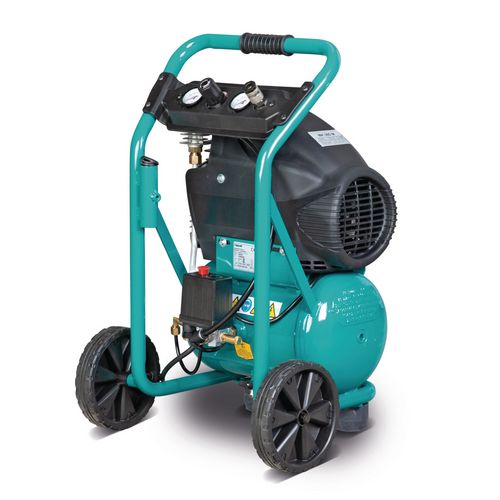

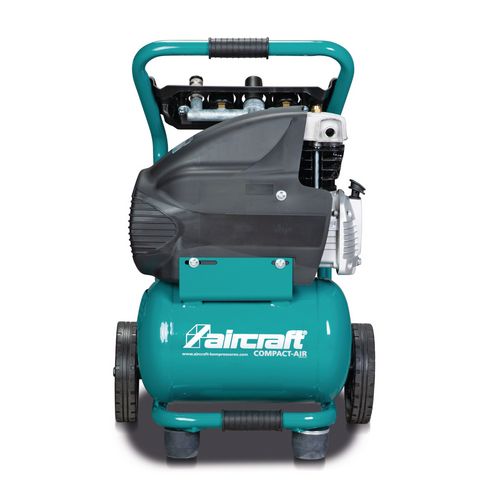

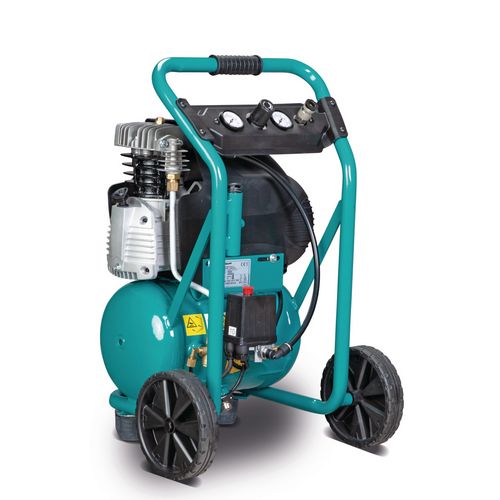

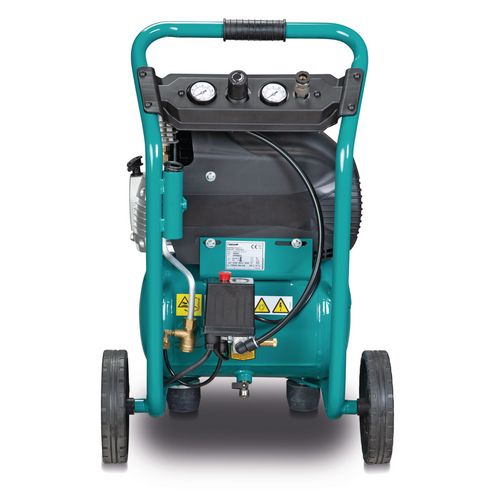

Mobile piston compressor
COMPACT-AIR 265/10 E
The handy universal compressors for occasional assembly use
285,00
EUR excl. Tax / pc(s).
339,15 EUR incl. 19% Tax / pc(s).
339,15 EUR incl. 19% Tax / pc(s).
Promotional price *
259,00 EUR excl. Tax / pc(s).308,21 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 31.08.2025 in Germany.
Art.-No. 2005261
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Quality electric motors with high torque and motor start unloading, thus no startup problems
- Electric motor equipped with motor protection switch
- Fully automatic on-off operation
- With all safety devices
- Good protection of all transport-endangered parts
- Complete maintenance block inside
- Compressed air tank powder coated
- Rubber carrying handle to prevent slippage during transport
- Extra carrying handle allows convenient carrying of the compressor with two hands
| Compressed air tank | |
|---|---|
| Maximum pressure | 10 bar |
| Pressure vessel capacity | 10 l |
| Tank surface | Powder-coated |
| Compressor | |
|---|---|
| Compressor system | HOS |
| Oil-free / oil-lubricated | Oil lubricated |
| Suction capacity approx. | 250 l/min |
| Filling capacity approx. | 155 l/min |
| Explanation filling capacity | at 6 bar working pressure |
| Number of cylinders | 1 |
| Number of compressor stages | 1 |
| Dimensions and weights | |
|---|---|
| Length approx. | 420 mm |
| Width/depth approx. | 350 mm |
| Height approx. | 730 mm |
| Weight approx. | 24,1 kg |
| Electrical Data | |
|---|---|
| Delivery power | 1,5 kW |
| Supply voltage | 230 V |
| Mains frequency | 50 Hz |
| Noise emission | |
|---|---|
| Whisper quiet | No |
| Sound power level Lw | 97 dB(A) |
| Explanation sound power level Lw | Sound power level according to DIN EN ISO 3744 (RL 2000/14/EG) |
| Sound pressure level Lp | 75 dB(A) |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- Pressure reducer for stepless adjustment of the desired working pressure
- Automatic pressure switch

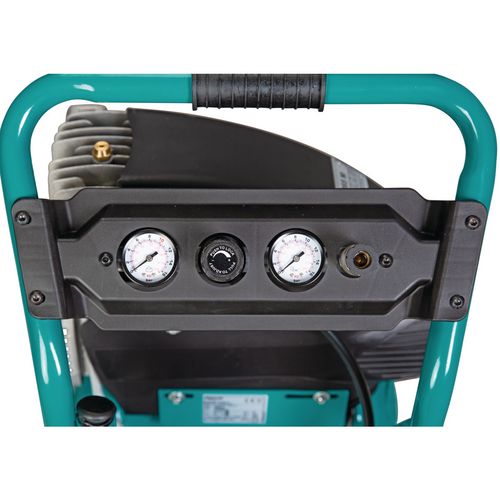

- One pressure gauge each for indication of tank and working pressure
- Hand quick coupling
- Aluminum air ducts
| Pressure regulation | Pressure regulator |
| Automatic pressure switch | ✔ |
| Drive transmission | Direct-coupled |
| Material compressed air line | Copper |
| Connection cable | 1.85 m |
| Connector | 1/4 " |
| Compressed air outlet | A one-hand quick coupling |
| Condensate drain | 3/8 " |
| ZÜS tested | Testing before commissioning can also be carried out by a qualified person |
