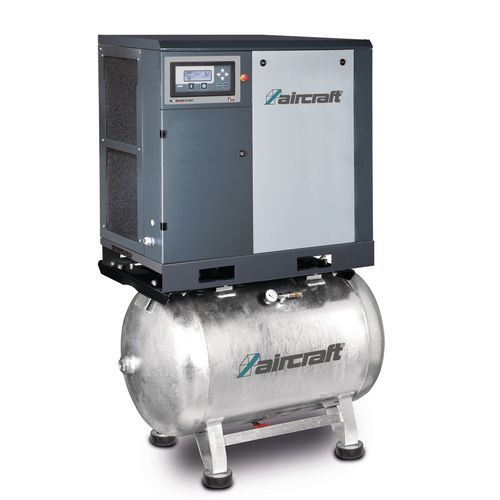

Direct coupled screw compressor
A-K-MAX 7,5-10-270F
on compressed air tank, for 100% utilization
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 2095424
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Low maintenance coaxial screw compressor with maximum energy efficiency
- EasyTronic IV electronic control with pressure sensor operation prevents motor overload and reduces wear and tear
- Operating hours per hourhler records load and run-on times, display of maintenance requirement via automatic message
- direction of rotation check for the motor, prevents damage during commissioning or after a change of location

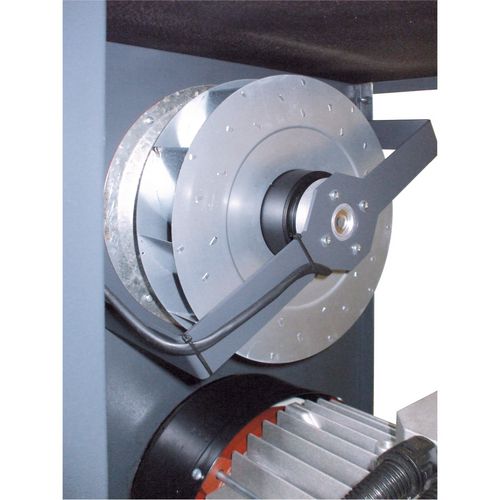

- high coolinghlwirkung and low noise level by thermostatically controlled radial fan
- Optimum operating temperature and low fluctuation of oil temperature by thermostatically controlled radial fan, optimum cooling air flow and largequickly dimensioned heat exchangers
- aftercooler reduces the effort for drying and filtering the generated compressed air
- standard with star-delta connection

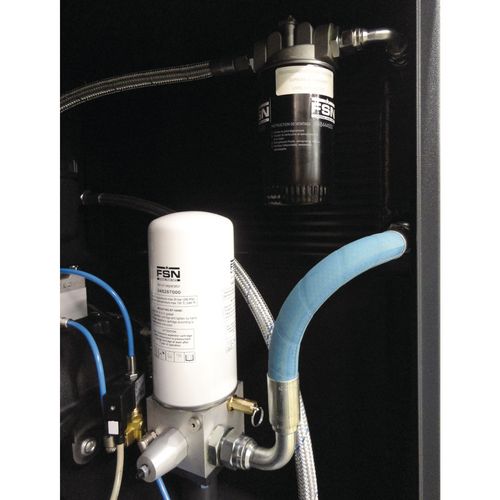

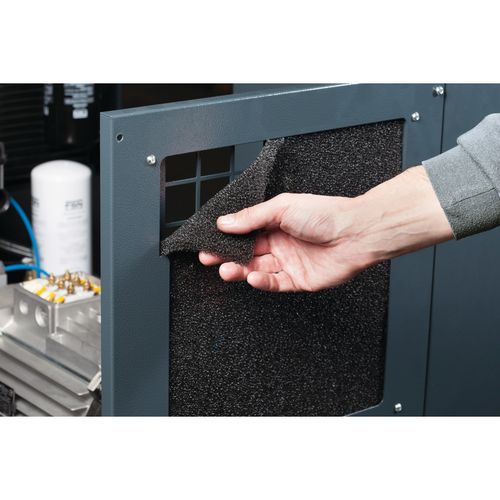

- easy to service: easy removal and installation of all components to be serviced
- Permanent protection against rust by hot-dip galvanizing of the container - 15 years warranty against rusting through
| Effective delivery volume approx. | 1050 l/min |
| Maximum Pressure | 10 bar |
| Air outlet | 1/2 " |
| VPE | 1 |
| Compressed air tank | |
|---|---|
| Pressure vessel capacity | 270 l |
| Dimensions and weights | |
|---|---|
| Length approx. | 1280 mm |
| Width/depth approx. | 650 mm |
| Height approx. | 1540 mm |
| Weight approx. | 260 kg |
| Electrical Data | |
|---|---|
| Absorbed power electric motor | 7,5 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Motor(s) | |
|---|---|
| Motor type | Electrical |
| Noise emission | |
|---|---|
| Sound pressure level Lp | 62 dB(A) |
| Explanation sound pressure level Lp | Sound pressure level at a distance of 1 m according to DIN 45635 T 13 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
| Compressed air tank | Hot-dip galvanised inside and out |

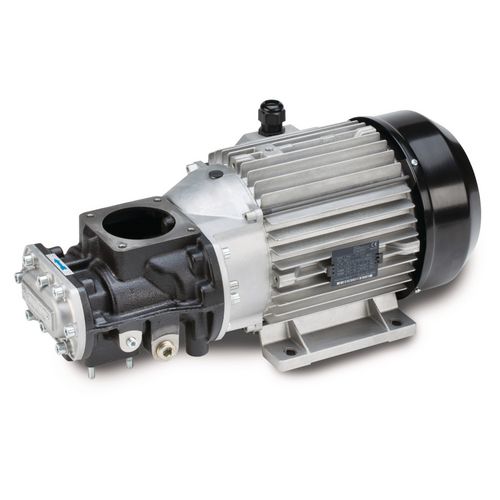

| Drive transmission | Direct coupling |
| Compressor type | FSC 26 |
