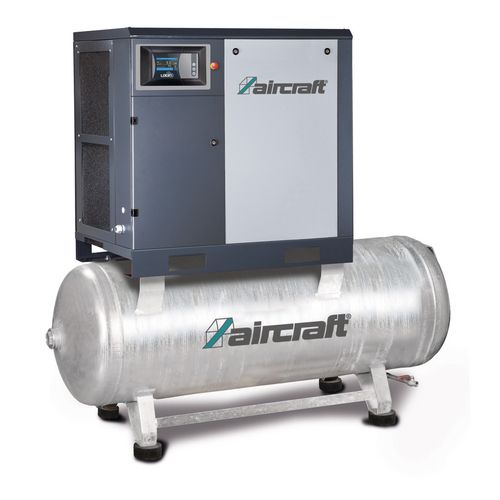

Screw compressor
A-K-MAX 15-13-500 (IE3)
Compact screw compressor with constant speed and innovative LOGIN control system
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 2095836.2
Are you interested in this product?
Put a request
Find Trader
Productdetails

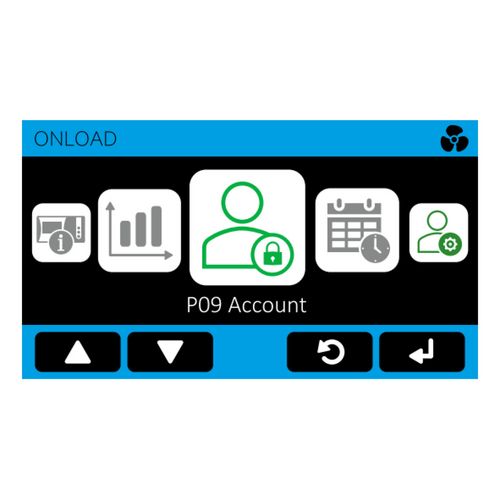

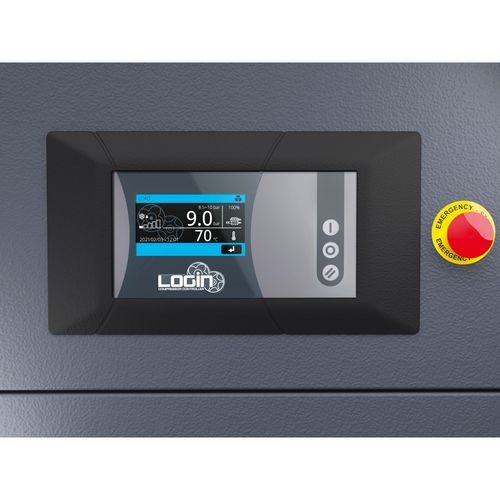

- Innovative LOGIN control with 4.3" touch screen for easy operation and complete control over all functions
- Connection of up to eight compressors possible, no matter if with constant or variable speed
- All information on current operating status at a glance
- Rotation direction control for the motor, prevents damage during start-up or after a change of location
- Low noise emission (only max. 67 dB) during operation, due to extremely low speed of the screw compressor and use of a low-noise radial fan

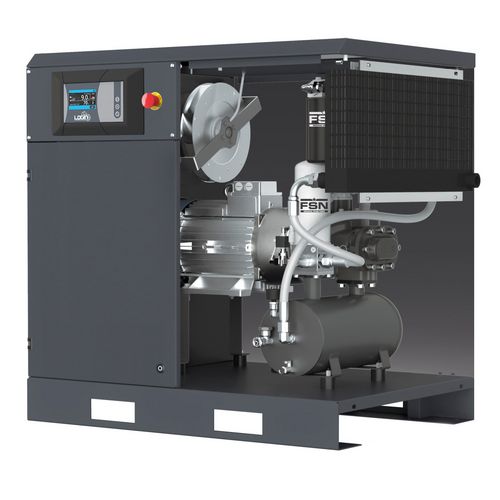

- Optimum operating temperature and low fluctuation of oil temperature due to thermostatically controlled centrifugal fan, optimum cooling air flow and generously dimensioned heat exchangers
- Aftercooler reduces the effort for drying and filtration of the generated compressed air
- Star-delta switching as standard
- Easy to service: simple removal and installation of all components requiring maintenance
| Effective delivery volume approx. | 1550 l/min |
| Maximum Pressure | 13 bar |
| Air outlet | 3/4 " |
| Oil-free / oil-lubricated | Oil lubricated |
| Mobile / Stationary | Stationary |
| VPE | 1 |
| Compressed air tank | |
|---|---|
| Pressure vessel capacity | 500 l |
| Dimensions and weights | |
|---|---|
| Length approx. | 2000 mm |
| Width/depth approx. | 730 mm |
| Height approx. | 1660 mm |
| Weight approx. | 404 kg |
| Electrical Data | |
|---|---|
| Absorbed power electric motor | 15 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Motor(s) | |
|---|---|
| Motor type | Electrical |
| Noise emission | |
|---|---|
| Sound pressure level Lp | 67 dB(A) |
| Explanation sound pressure level Lp | Sound pressure level at a distance of 1 m according to DIN 45635 T 13 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
| Control | Electronical |
| Oil heat exchanger | ✔ |
| Compressed air tank | Hot-dip galvanised inside and out |
| Drive transmission | Direct coupling |
| Compressor type | FS50 |
| Star-delta switch | ✔ |
| AD 2000 compliant | yes |
