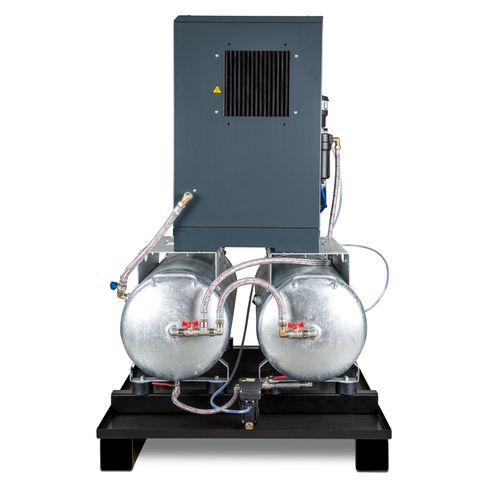

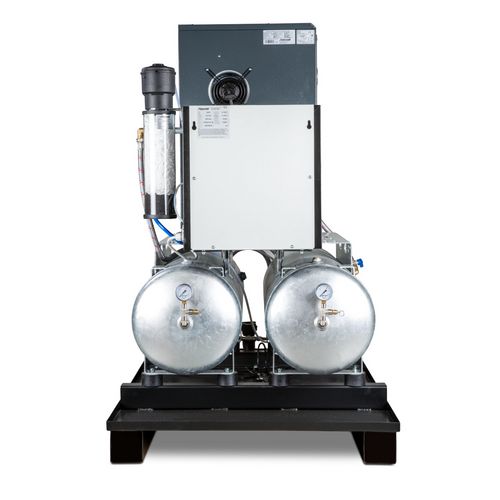

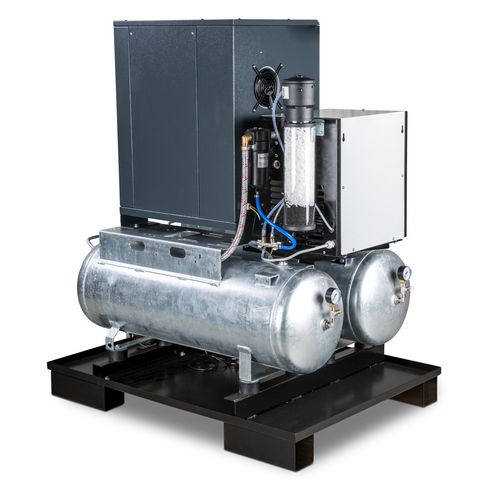

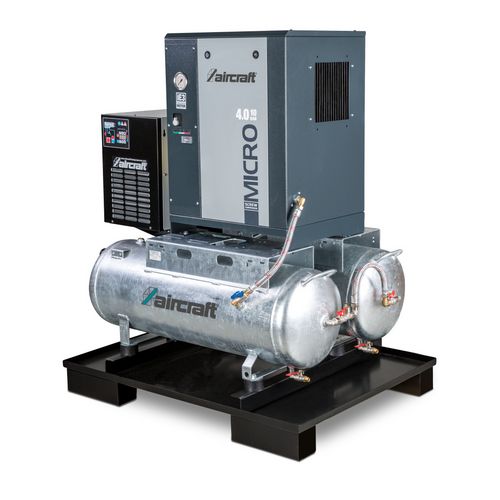

Screw compressor with ribbed belt drive with mounted refrigeration dryer on 2 x 100 l container
A-DUO-MICRO SE 4.0-10 2x100 K
4 kW screw compressor with ribbed belt drive on 2 x 100 l boilers on safety stand pallet
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 2091664
Are you interested in this product?
Put a request
Find Trader
Productdetails

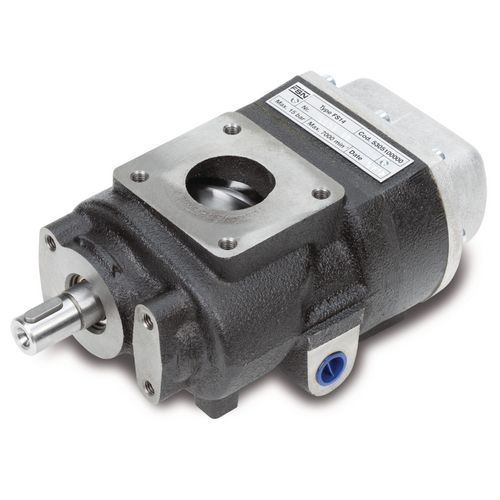

- Screw compressor with ribbed belt drive
- Start-stop operation via pressure switch, thereby saving energy compared to idling control
- Minimal and easy maintenance
- Ready for connection with all fittings
- Fifteen-year rust-through warranty on inside and outside hot-dip galvanized compressed air tank
- Easily transportable and deployable thanks to the safety pallet.
- KK version as standard with automatic steam trap for the reliable and economical discharge of the condensate without unnecessary loss of compressed air
- K and KK version with refrigeration dryer as standard with pressure dew point at 3 °C, ambient temperature 25 °C
Increased flexibility
- Enabling the second compressed air vessel doubles the pressure vessel volume, thus creating a greater compressed air reserve. Helps to cover short-term peaks in compressed air requirements
- For, e.g., chisel, hammer or sandblasting work, the second vessel can be isolated from the compressed air supply. This halves the vessel volume helping to build up the pressure more quickly.
| Effective delivery volume approx. | 485 l/min |
| Maximum Pressure | 10 bar |
| Air outlet | 1/2 " |
| VPE | 1 |
| Compressed air tank | |
|---|---|
| Pressure vessel capacity | 200 l |
| Remark Container contents | 2 x 100 l |
| Dimensions and weights | |
|---|---|
| Length approx. | 1250 mm |
| Width/depth approx. | 950 mm |
| Height approx. | 1430 mm |
| Weight approx. | 221 kg |
| Electrical Data | |
|---|---|
| Absorbed power electric motor | 4,0 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Motor(s) | |
|---|---|
| Motor type | Electrical |
| Noise emission | |
|---|---|
| Sound pressure level Lp | 61 dB(A) |
| Explanation sound pressure level Lp | Sound pressure level at a distance of 1 m according to DIN 45635 T 13 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- Shock mounts
- Safety pedestal range
- refrigeration dryer
- fine filter
| Compressed air tank | Hot-dip galvanised inside and out |
| Drive transmission | Ribbed belt |
