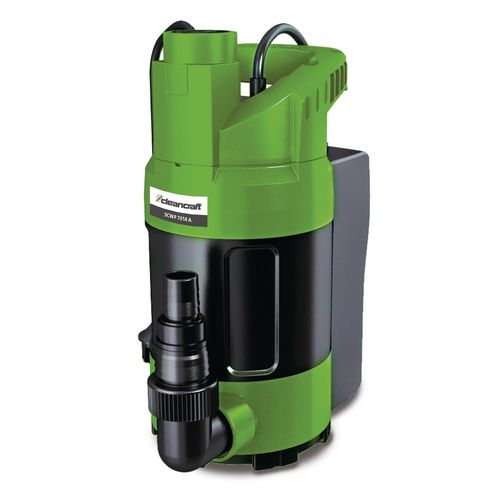

Submersible water pump
SCWP 7014A
Submersible pressure pump with automatic start/stop, suitable for clear water
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 7520110
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Suitable for pumping out pools, drainage shafts, water damage in house and cellar or for circulating water, among other things
- Integrated float switch regulates the pump depending on the water level with a selector switch for manual or automatic operation. Ideal for small sumps or barrels due to the smaller surface area required
- flat pumping down to a few millimetres is possible
- Dry-running protection integrated
- High-quality seals guarantee long service life
- Equipped with thermal protection
- High-quality and robust plastic housing
- Light and compact, very mobile
- Ergonomic handle design
- Suitable for pumping out pools, drainage shafts, water damage to house and cellar or for circulating water
- Integrated float switch switches the pump depending on the water level
- Integrated dry-running protection
| Dimensions and weights | |
|---|---|
| Length approx. | 232 mm |
| Width/depth approx. | 148 mm |
| Height approx. | 332 mm |
| Weight approx. | 6,4 kg |
| Drive | |
|---|---|
| Motor output | 0,75 kW |
| Electrical Data | |
|---|---|
| Supply voltage | 230 V |
| Mains frequency | 50 Hz |
| Pump | |
|---|---|
| Type | Clearwater |
| Max. lift | 8 m |
| Discharge capacity | 233 l/min |
| Discharge port diameter | 25/32 mm |
| Max. grain size | 5 mm |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
Multiadapter 1¼'' with angle connection for 25mm and 32mm hoses
