Wet/dry vacuum cleaner

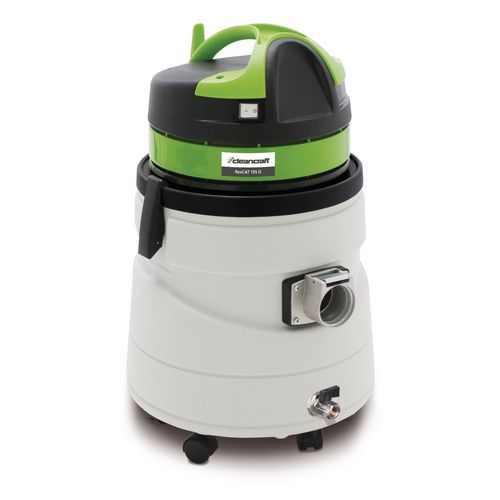

flexCAT 135 O
Special vaccum cleaner with oil strainer
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 7003395
Are you interested in this product?
Put a request
Find Trader
Productdetails
- For vacuuming liquids, chips and other solid particles e.g. Cooling lubricants, heavily oil-containing liquids and metal chips

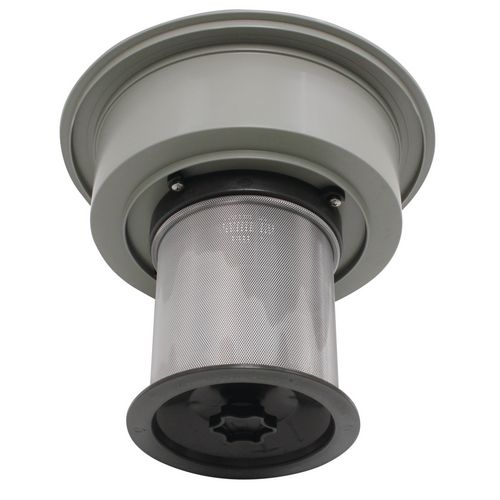

- Between the container and the head there is a separation container with an integrated oil strainer

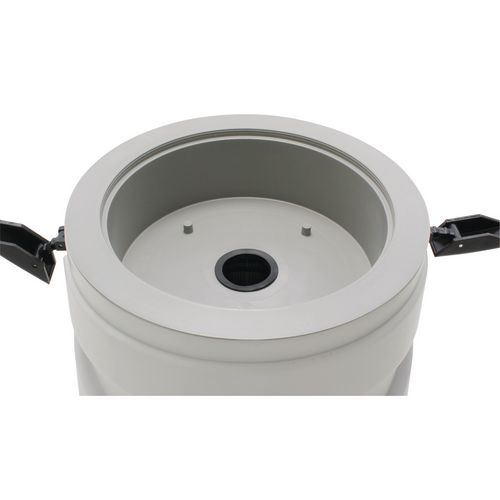

- Special seal between the head and the container is resistant to oil and chemical residues without flexibility lose
- Float for a safe stop when the tank is full of liquid
- Drain valve for quick and easy tank emptying
- Elastic and flexible suction hose withstands high loads and any kind of twisting
- Motors equipped with copper windings and motor protection
- Ergonomic head design with cable hook
- For vacuuming liquids, chips and other solid particles
- Between the tank and the head there is a separation tank with an integrated oil strainer
- Float for safe stop at full container with liquid
| Vacuum cleaner type | Wet and dry |
| Airflow | 3583 l/min |
| Tank volume | 35 l |
| Tank material | plastic |
| Hose diameter | 38 mm |
| Sound pressure level | 72 dB(A) |
| Cable length | 8.5 m |
| Motor(s) number | 1 |
| Negative pressure | 245 mbar |
| VPE | 1 |
| Dimensions and weights | |
|---|---|
| Length approx. | 380 mm |
| Width/depth approx. | 380 mm |
| Height approx. | 660 mm |
| Weight approx. | 10,6 kg |
| Electrical Data | |
|---|---|
| Absorbed power drive motor | 1,0 kW |
| Supply voltage | 220 – 240 V |
| Mains frequency | 50/60 Hz |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1

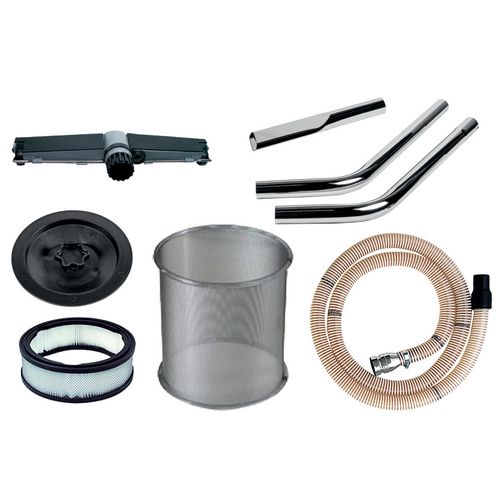

- Poly cartridge filter
- Metal protection basket
- Mounting ring and seal for cartridge filters
- PU hose, antistatic Ø 38 mm / 3 m
- Suction pipe Ø 34 mm / 2 x 0.58 m, chrome-plated
- Floor nozzle with brush strip Ø 38 mm, metal
- Flat nozzle, chrome-plated
| Antistatic connection | ✔ |
| Cable holder | ✔ |
| Hose and nozzle set | ✔ |
| Copper windings for motor | ✔ |
