Dry vacuum cleaner

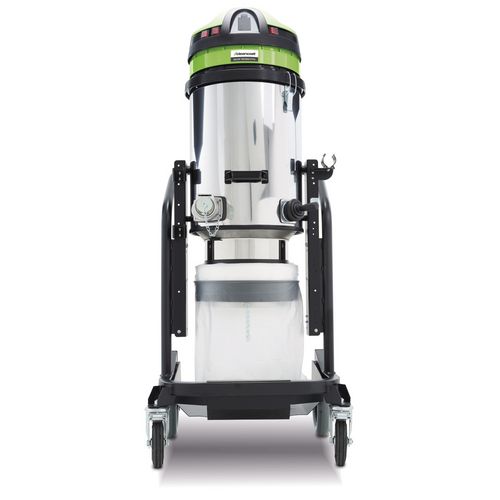

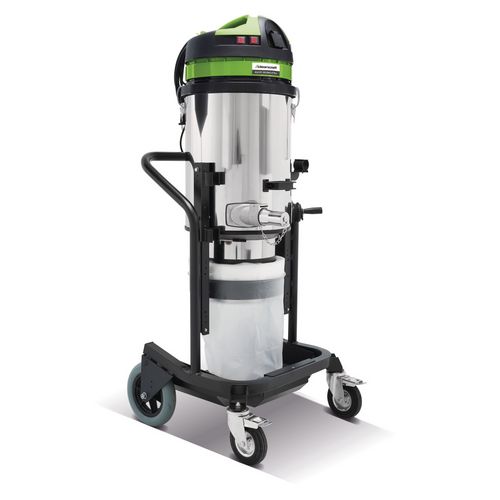

dryCAT 320 BAG-H Pro
With 20 meter long endless collection bag and manual filter cleaning
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 7002185
Are you interested in this product?
Put a request
Find Trader
Productdetails
- For extracting sanding dust or wood sawdust in the workshop
- With 20 meter long endless collection bag for safe and dust-free disposal
- Easy to use: For disposing the filled bag, close it with a cable tie or knot and cut it off - pull the new bag out of the endless cassette and close it at the bottom - done
- Easy to maneuver on all surfaces due to the robust trolley with large wheels
- Manual filter cleaning for consistently high filter performance
- Motor with copper winding and motor protection
- HEPA H14 filter cartridge and additional pocket filter ensure a high filter effect

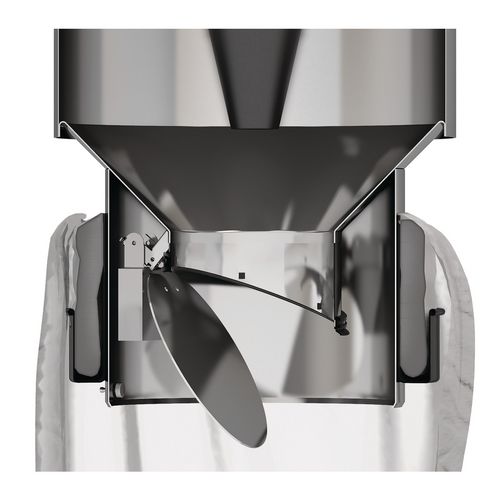

- The flap closes automatically as long as the vacuum cleaner is out of order. This prevents dust from sliding down if the collection bag is disposed.
- Equipped with integrated 230 V Schuko socket outlet
- For vacuuming sanding dust or wood sawdust in the workshop
- With 20 meter long, endless collection bag for safe, dust-free and easy-to-use disposal
- Easy to maneuver on all surfaces due to a robust trolley with large wheels
- Manual filter cleaning for consistently high filter performance
- HEPA H14 filter cartridge and additional pocket filter ensure a high filter effect
- Closure flap closes automatically, as long as the vacuum cleaner is out of operation. This prevents dust from sliding down if the collection bag is disposed.
| Vacuum cleaner type | dry |
| Airflow | 10750 l/min |
| HEPA filter class | H14 |
| Hose diameter | 38 mm |
| Sound pressure level | 76 dB(A) |
| Cable length | 8.5 m |
| Motor(s) number | 3 |
| Motor stages | 2 |
| Negative pressure | 245 mbar |
| VPE | 1 |
| Dimensions and weights | |
|---|---|
| Max. height approx. | 1450 mm |
| Length approx. | 590 mm |
| Width/depth approx. | 590 mm |
| Height approx. | 1120 mm |
| Weight approx. | 72 kg |
| Electrical Data | |
|---|---|
| Absorbed power drive motor | 3.3 kW |
| Supply voltage | 220 – 240 V |
| Mains frequency | 50 – 60 Hz |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1

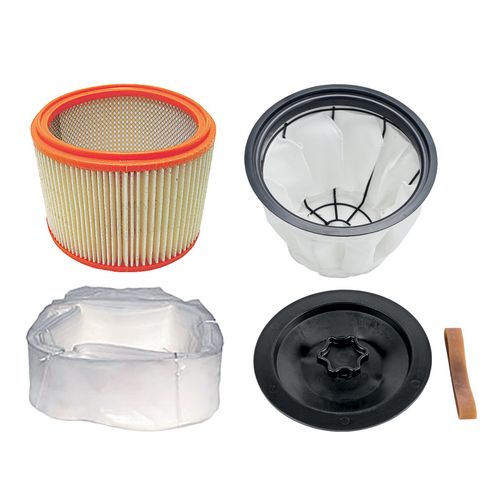

- Endless collection bag 20 m (7013651)
- HEPA H14 cartridge filter (7013602)

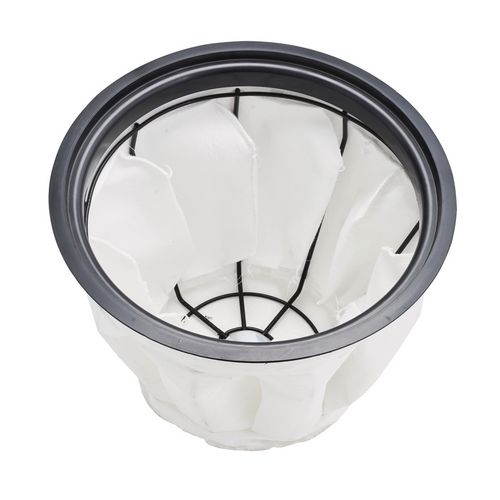

- Pre-filter 5000 cm² (7013644)
- Fixing ring for cartridge filter (7010110)
| Antistatic connection | ✔ |
| Integrated socket for power tools | ✔ |
| Copper windings for motor | ✔ |
| Motor protection | ✔ |
| Thermal protection sensor | ✔ |
| Travel device | ✔ |
| Cartridge filter | HEPA H14 |
| Filter cleaning | ✔ |
