HDR-K 126-21

with powerful high pressure pump

2.699,00 EUR excl. Tax / pc(s).
3.211,81 EUR incl. 19% Tax / pc(s).

Promotional price *

2.229,00 EUR excl. Tax / pc(s).
2.652,51 EUR incl. 19% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 31.08.2025 in Germany.

Sicherheits- und Warnhinweise

Safety and warning notices

Art.-No. 7102126

Are you interested in this product?

Put a request

Find Trader

Productdetails

Mobile, robust model with handle
High working pressure and high delivery rate
Ideal for agriculture or the construction industry
Total Stop pump control: start and stop the pump motor without delay via a pressure switch by opening and closing the gun
LED lights up when a leak is detected
Integrated five-liter cleaning tank including filter

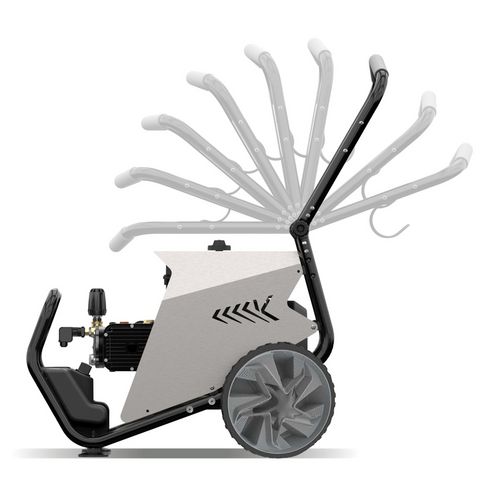

Folding handle with aluminum hinges
Large, rubberized wheels for easy handling even on uneven surfaces or stairs
Robust metal frame and stainless steel covers
Easy to carry out maintenance by simply removing the cover
Very robust design for a long service life
Made in Europe quality
Operation with a water tank or similar possible - The HDR-K is self-priming up to a depth of 0.5 m.

High working pressure and high flow rate
Optimal for agriculture or the construction industry
Very robust design for long service life
Integrated five litre cleaning tank including filter
Large, rubberised wheels for easy handling even on uneven ground or stairs
Easy maintenance by simply removing the cover
Total Stop - pump control: start and stop of the pump motor without delay via a pressure switch by opening and closing the gun
Quality Made in Europe

Data sheets
Sicherheits- und Warnhinweise
Safety and warning notices

Dimensions and weights
Max. height (product) approx.	950 mm
Length approx.	850 mm
Width/depth approx.	540 mm
Height approx.	550 mm
Weight approx.	65 kg

Electrical Data
Input power	8.9 kW
Connection cable length	5 m
Supply voltage	400 V
Mains frequency	50 Hz

Noise emission
Sound pressure level	86 dB(A)
Explanation about sound pressure level	EN60704-1

Pump
Working pressure	200 bar
Pump pressure	200 bar
Max. pump pressure	210 bar
Flow rate max	1260 l/h
Operating position	horizontal

Water connection
Max water inlet temperature	60 °C

VPE

Unit: pc(s).
Packaging unit: 1

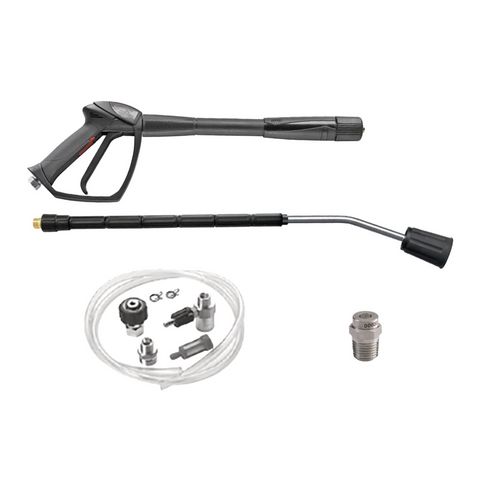

Cable and hose holder
High pressure hose 15 m
Manual spray gun
Curved lance with spray head
Jet nozzle 25°
Hose for cleaning agent container
Lance with rotating nozzle

Piston	Ceramics
Pump control	Total Stop Timed and Microleaks alarm
Self-priming pump	✔
Cleaning agent tank	5 l
Cleaning agent regulation	✔
High pressure hose pressure bearing	Steel reinforcement
High pressure hose length	15 m
Water filter	✔
Working pressure regulated	✔
Pressure gauge for working pressure	✔
Integrated hose reel	✔
Hose connection pump outlet	Screw connection M22x1,5
Hose connection manual spray gun	Screw connection M22x1,5
Wheels	260 mm
Cylinder head material	Brass
