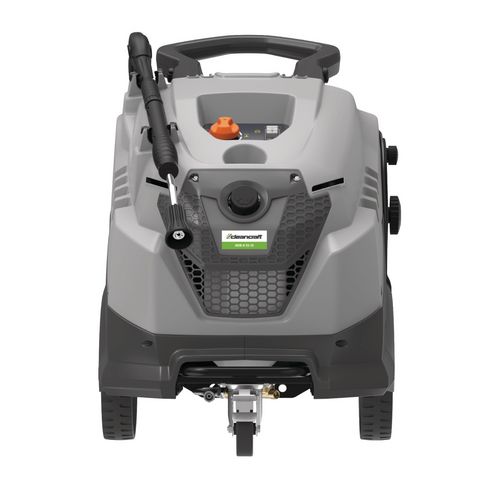

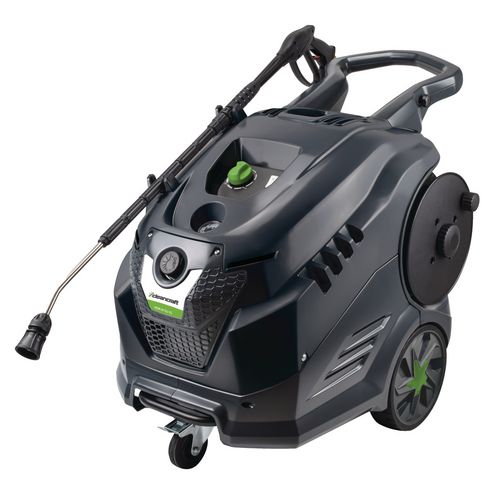

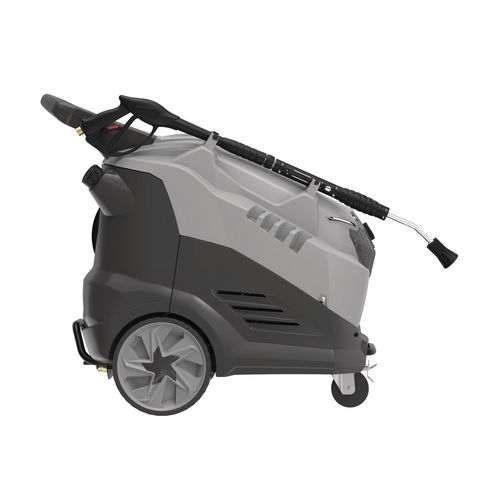

Hot Water Pressure Washer
HDR-H 55-15 (230 V)
Entry-level model with a maximum pressure of 150 bar and a water temperature of up to 90 ° C
1.749,00
EUR excl. Tax / pc(s).
2.081,31 EUR incl. 19% Tax / pc(s).
2.081,31 EUR incl. 19% Tax / pc(s).
Promotional price *
1.539,00 EUR excl. Tax / pc(s).1.831,41 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 28.02.2025 in Germany.
Art.-No. 7150551
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Heating of the water through diesel combustion
- Adjustable water temperature for adaptation to the respective cleaning task
- Easy-Start function: Start-up relief by reducing the pressure when starting the pump
- Total stop pump control: Start and stop the pump motor without delay via a pressure switch by opening and closing the gun
- Motor protection switch protects the motor against overload
- Very robust 3-piston axial pump with brass head
- Practical, integrated hose reel with 10-meter high-pressure hose
- Easy to maneuver thanks to ergonomic handle and two large wheels and one swivel castor
- Powerful and compact high-pressure cleaner with a modern design

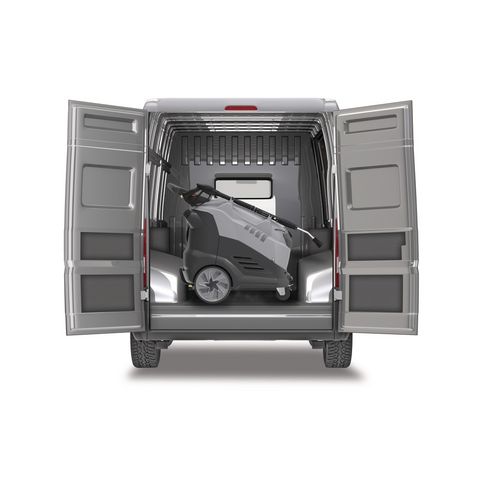

- Easy to transport
- Easy maintenance of internal components and motor pump
- Easily accessible detergent tank (3.5 l) with suction option
- Lance holder with non-slip rubber pads
- Water temperature adjustable, up to 90 ° C
- Integrated hose reel with 10 m high pressure hose
- 230 volt model with start-up relief through easy-start function
- Quality Made in Europe
| Max. operating pressure | 140 bar |
| Max. volume flow | 540 l/h |
| Max. temperature | 90 °C |
| Fuel | diesel |
| VPE | 1 |
| Dimensions and weights | |
|---|---|
| Length approx. | 825 mm |
| Width/depth approx. | 570 mm |
| Height approx. | 895 mm |
| Weight approx. | 66 kg |
| Electrical Data | |
|---|---|
| Absorbed power drive motor | 2.7 kW |
| Supply voltage | 230 V |
| Mains frequency | 50 Hz |
| Noise emission | |
|---|---|
| Sound power Level | 94 dB(A) |
| Sound pressure Level | 79.8 dB(A) |
| Tank(s) | |
|---|---|
| Fuel tank volume | 15 l |
| Fuel consumption | 3,1 l/h |
| Cleaning agent tank valume | 3.5 l |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1

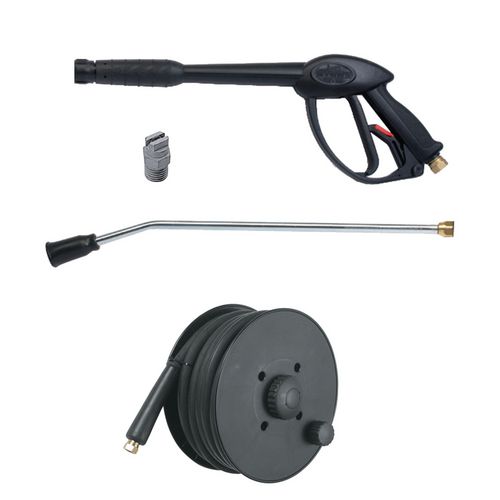

- Trigger gun
- lance
- Flat jet nozzle 15 °
- Hose reel with high pressure hose 10 m
- Nozzle cleaning needle
| Motor | 2-pole |
| Motor circuit switch | ✔ |
| Pump | Three-piston axial pump with brass head |
| Pump control | Total Stop System |
| Easy-start function | ✔ |
| Self-priming pump | ✔ |
| Safety valve | ✔ |
| Integrated detergent tank | 3.5 l |
| Detergent intake system | low pressure |
| Water temperature can be regulated | ✔ |
| Manometer for operating pressure | ✔ |
| Delayed burner start | ✔ |
| Flow monitoring | ✔ |
| Integrated hose reel | ✔ |
| High pressure hose | 10 m |
| High pressure hose pressure bearing | Rubber hose, reinforced with textile fabric |
| Storage | Compartments for hand spray gun, jet pipe and accessories |

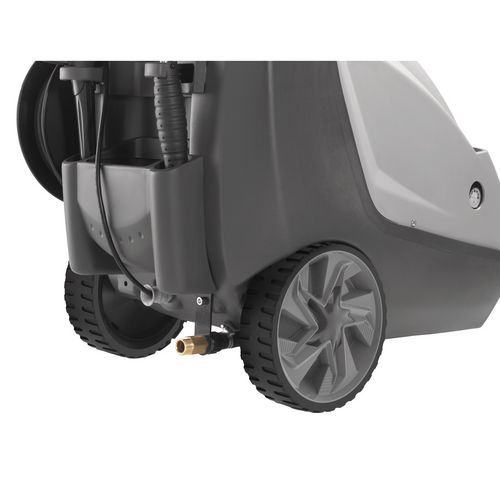

| Carriage/transport equipment | 2 large wheels, 1 swivel castor, rigid handles |
| Wheel diameter | 250 mm |
