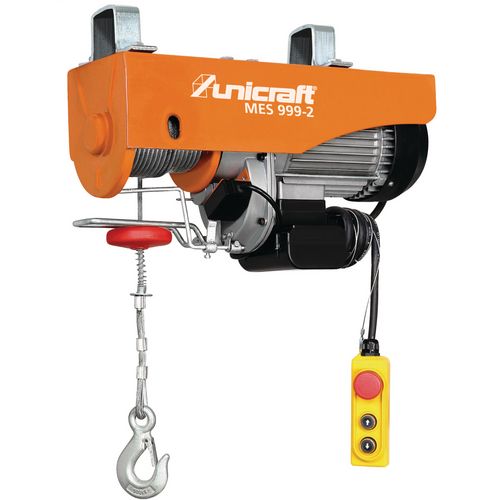

    Productimage for MES 999-2
    Brandimage to Product MES 999-2

    Mini electric cables

    MES 999-2

    With deadman switch for safe working

    349,00 EUR excl. Tax / pc(s).
    415,31 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 6198299

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Emergency stop switch for safe working
    • Lifting height without/with deflection pulley 12 m/6 m
    • Pulley with load hook
    • With two sturdy double clamps for fastening
    • Control switch insulated according to IP54
    • Limit switch for immediate shutdown in upper and lower end position

    Note: The standard version of the electric wire rope hoist is equipped with a special clamp mounting system with a special profile for mounting on edge tubes. Accessories are required for mounting on round tubes.



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Control unit cable length1,5 m
    Lifting force without deflection pulley500 kg
    Lifting force with deflection pulley999 kg
    Stroke without deflection pulley12 m
    Stroke with deflection pulley6 m
    Max. lifting speed without deflection pulley8 m/min
    Max. lifting speed with deflection pulley4 m/min
    VPE1
    Dimensions and weights
    Cable diameter6 mm
    Inside dimensions of fastening clamps59 x 59 mm
    Weight approx.33 kg
    Electrical Data
    Degree of protectionIP 54
    Main motor1600 W
    Supply voltage230 V
    Mains frequency50 Hz
    Unit: pc(s).
    Packaging unit: 1
