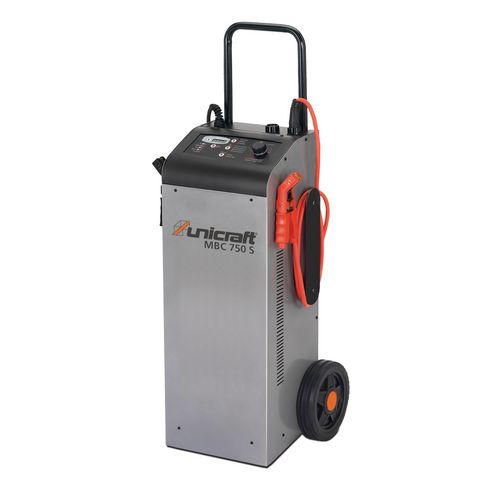

Battery charger/starter
MBC 750 S
multifunctional device for batteries with charging voltage of 12 and 24 volts
845,00
EUR excl. Tax / pc(s).
1.005,55 EUR incl. 19% Tax / pc(s).
1.005,55 EUR incl. 19% Tax / pc(s).
Promotional price *
789,00 EUR excl. Tax / pc(s).938,91 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 28.02.2025 in Germany.
Art.-No. 6850510
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Suitable for all motor vehicles from motorcycles to articulated vehicles and motor boats
- Microprocessor controlled device
- Automatic charging cycles with up to ten charging and analysis phases
- Three programmed and one manual charging cycles
- Fast charging function
- Protection of vehicle electronics against voltage peaks during start-up
- For regeneration of deeply discharged batteries
- In back-up charging mode, use as a power supply unit to preserve the settings of the vehicle electronics when the battery is removed (memory saver) - important function for modern cars where battery replacement may only be performed in back-up charging mode in order to preserve the settings of the electronic devices in the vehicle (radio code, seat and driver comfort settings, ...)
- Suitable for wet, gel and AGM batteries with 12 or 24 Volt charging voltage
- Regeneration and maintenance function
- Support loading operation (Memory Saver)
- Model with suspension
- Quality Made in Europe
| Performance | 2 – 12 kW |
| Charging voltage | 12 / 24 V |
| Charging current | 100 / 70 A |
| Charging capacity | 4 – 700 Ah |
| Starting current output | 450 A |
| Starting current peak output | 650 A |
| Number of operating modes | 6 |
| Degree of protection | IP 20 |
| VPE | 1 |
| Application scope | |
|---|---|
| Suitable for battery types | Wet, Gel, AGM |
| Charging applications | Krad, cars, kB, kT, Lw, boats, trucks < 7.5 t, trucks>7.5 t, commercial vehicles, construction |
| Start applications | Krad, cars, kB, kT, Lw, boats, trucks < 7.5 t, trucks>7.5 t, commercial vehicles, construction |
| Charging | multifunctional |
| Receiving | ✔ |
| Starting | ✔ |
| Regenerating | ✔ |
| Backup charging operation (memory saver) | ✔ |
| Dimensions and weights | |
|---|---|
| Output cable length | 1800 mm |
| Connecting cable length | 1800 mm |
| Length approx. | 380 mm |
| Width/depth approx. | 310 mm |
| Height approx. | 950 mm |
| Weight approx. | 29.5 kg |
| Electrical Data | |
|---|---|
| Supply voltage | 230 V |
| Mains frequency | 50 Hz |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- Cable holders
- Chassis (transport bracket, wheelset)
| Remote start | ✔ |
| Digital display | Lade- und Startspannung, Ladestrom, Batteriestatus |
| Amperemeter | digital |
| Signal with wrong polarity/voltage or fault | LED |
| Reverse polarity short circuit protection | ✔ |
| Thermal protection switch with auto-reset | ✔ |
| Overload protection | ✔ |
| Charging cable +/- with standard crocodile clips | 1.6 m |
| Landing gear | ✔ |
