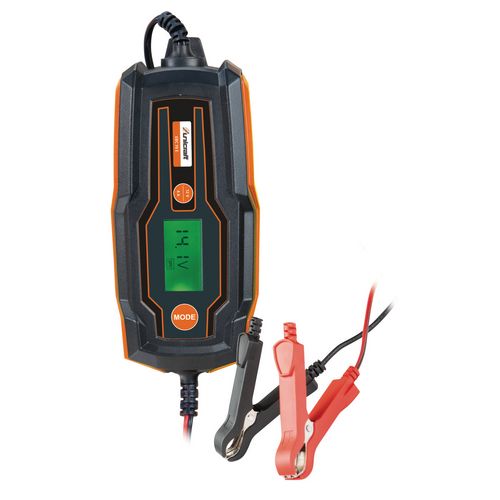

EBC 70 E

for batteries with a charging voltage of 6 or 12 volts

49,90 EUR excl. Tax / pc(s).
59,38 EUR incl. 19% Tax / pc(s).

Promotional price *

39,90 EUR excl. Tax / pc(s).
47,48 EUR incl. 19% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 28.02.2025 in Germany.

Sicherheits- und Warnhinweise

Safety and warning notices

Art.-No. 6851000

Are you interested in this product?

Put a request

Find Trader

Productdetails

Battery-saving charging through charging phases automatically matched to the battery condition
Charging and conservation take place according to special characteristic curves matched to the battery type
Optimal charging of the battery even at temperatures below 0 °C with special winter mode, device charges with higher charging current and increased charging voltage
Memory Saver function: In back-up charge mode, use as a power supply unit to retain the settings of the vehicle electronics when the battery is removed
IP65: device is dustproof and has protection against water jets from any angle
Different battery types can be selected via the MODE function

Charging and conservation take place according to special characteristic curves adapted to the battery type
Optimal charging even at temperatures below 0 °C with special winter mode
IP65: dustproof and protection against water jets from any angle
In back-up charging mode, use as a power supply unit to maintain the settings of the vehicle electrics when the battery is removed

Data sheets
Sicherheits- und Warnhinweise
Safety and warning notices

Performance	70 W
Charging voltage	6 / 12 V
Charging current	2 / 4 A
Charging capacity	4 – 120 Ah
Maintenance capacity	4 – 120 Ah
Charge cycles	10
Start voltage	3 V
Number of operating modes	1
Degree of protection	IP 65
VPE	1

Application scope
Suitable for battery types	Wet, Gel, AGM, Lithium (LiFePO4)
Charging applications	Krad, cars, minibus, vans, trucks<7,5t, boats
Charging	electronic
Receiving	✔
Backup charging operation (memory saver)	✔

Dimensions and weights
Charging cable length	1.1 + 0.4 m
Connecting cable length	1,5 m
Length approx.	193 mm
Width/depth approx.	85.4 mm
Height approx.	52 mm
Weight approx.	0.5 kg

Electrical Data
Fuse protection	3.15 A
Supply voltage	230 V
Mains frequency	50 Hz

Unit: pc(s).
Packaging unit: 1

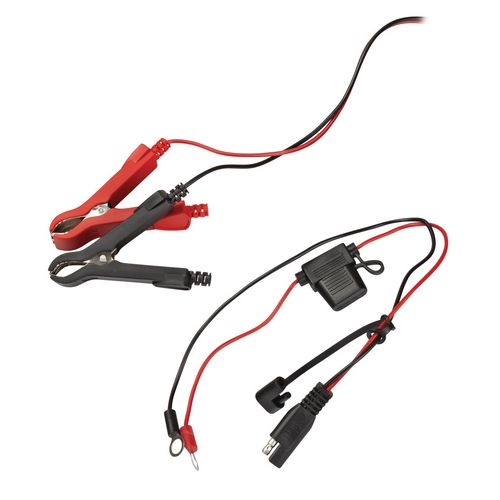

Charging cable 0.4 m with quick connector and fully insulated terminals
Cable 0.4 m with quick connector and ring eyelet terminals

Winter mode	✔
Digital display	Battery voltage, battery status, reverse polarity/short circuit, back-up charge mode on/off, battery type selection.
Reverse polarity short circuit protection	✔
Thermal protection switch with auto-reset	✔
Overload protection	✔
Voltage peak protection	✔
Charging cable +/- with standard crocodile clips	0.4 m
Charging cable +/- with M6 eye clamps	0.4 m
Connecting cable	230 Volt with Schuko plug
