Welding robot station
02.04 FD-V8 Welbee A350P wassergekühlt, Option 03
The mobile welding cell for the craftsman's workshop: simple, inexpensive, safe
85.490,00
EUR excl. Tax / pc(s).
101.733,10
EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 1850115
Are you interested in this product?
Put a request
Find Trader
Productdetails
Basic Features
Method
- 141
Sheet thicknesses
- 0.5 – 15 mm
Base materials
- DIN-CEN ISO/TR 15608
Typical applications
- Plant construction
- Series manufacturing
- Pipeline construction
Description
Shortage of skilled labour? Optimized production! Production costs under pressure?
The EASY-ARC welding robot is the answer
Compact, mobile and quickly ready for use
- Cost-effective to purchase
- Ready assembled and documented
- Space-saving and flexible
Time-saving operation
- Simple creation of the welding program via the OTC Easy Teach control system
- No extensive training necessary
Stable, precise welding robot
- Physical relief for employees
- Optimized, consistent welding quality
Safe operation

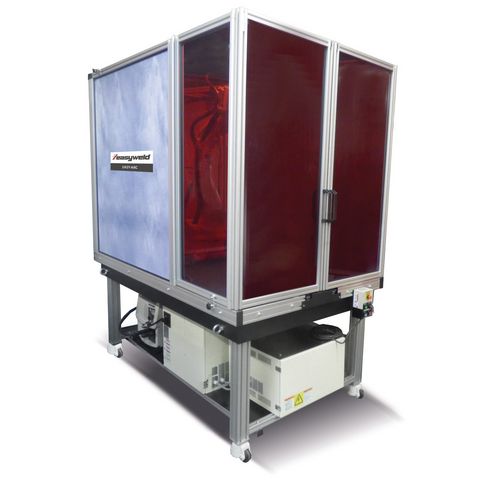

- Protection against access and glare by electrically monitored lightweight protective housing
- Safety engineering with Monitoring Unit (RMU)
| Device data | |
|---|---|
| Pulse frequency | 0,1 - 999 Hz |
| Ignition | High frequency |
| Dimensions and weights | |
|---|---|
| Length approx. | 2140 mm |
| Width/depth approx. | 1380 mm |
| Height approx. | 2200 mm |
| Weight approx. | 1650 kg |
| Duty cycle | |
|---|---|
| at Imax. 40°C TIG | 30 % |
| Current at 100% DC 40°C TIG AC | 270 A |
| Current at 100% DC 40°C TIG DC | 300 A |
| Electrical Data | |
|---|---|
| Input current TIG AC | 18,5 A |
| Input current TIG DC | 19 A |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Horizontal rotary positioner | |
|---|---|
| Maximum load capacity | 250 kg |
| Rotation speed | 26 °/s |
| Torque | 205 Nm |
| Repetition accuracy | ± 0,1 mm |
| Power consumption | |
|---|---|
| TIG DC | 12,2 kVA |
| Setting range | |
|---|---|
| TIG AC | 2 – 350 A |
| TIG DC | 5 – 350 A |
| Standards and certifications | |
|---|---|
| Standard | 2006/42/EG |
| Torch | |
|---|---|
| Cooling | Fluid |
| Welding robot | |
|---|---|
| Type | FD-V8 |
| Kinematics | vertically articulated robot |
| Number of axes | 6 |
| Working range max. | 1437 mm |
| Maximum load capacity | 8 kg |
| Repetition accuracy | ± 0,08 mm |
| Ambient temperature | 0 – 45 °C |
| Air humidity | 20 – 80 % |
| Welding table | |
|---|---|
| Length | 2000 mm |
| Width | 1200 mm |
| Load capacity approx. | 1000 kg |
| Bore diameter | 28 mm |
| Bore distance | 100 mm |
| Table top material | Steel S355J2+N, plasma nitrided and BAR-coated |
| Table top surface hardness approx. | 450 – 750 Vickers |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
| Cooling | Water |

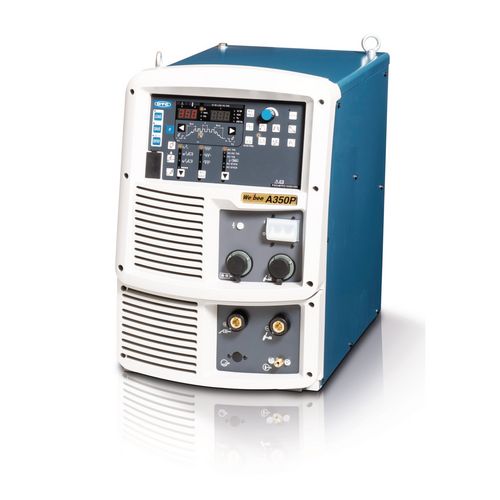

| Welding device | Welbee A350P (water-cooled inverter-pulse power source) |
| Torch | Binzel, robot welding torch with 3D forced shutdown, Push-pull system for feeding welding wire into the molten pool |

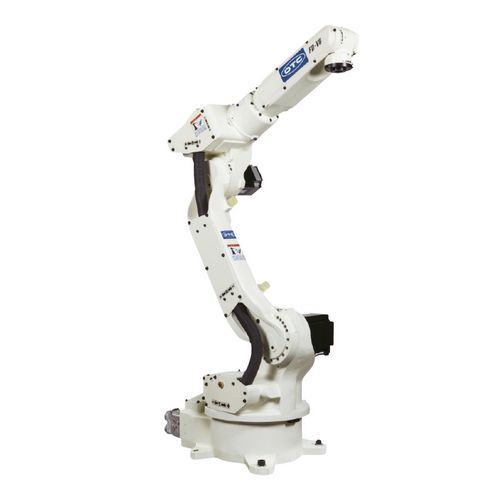

| Welding Robot | Six-axis robot FD-V8 for maximum flexibility |

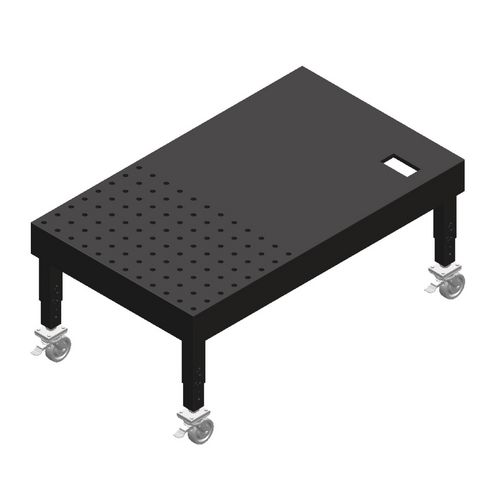

| Welding table | 2000 x 1200 mm, 3D welding table with intelligent system grids for clamping and positioning workpieces |

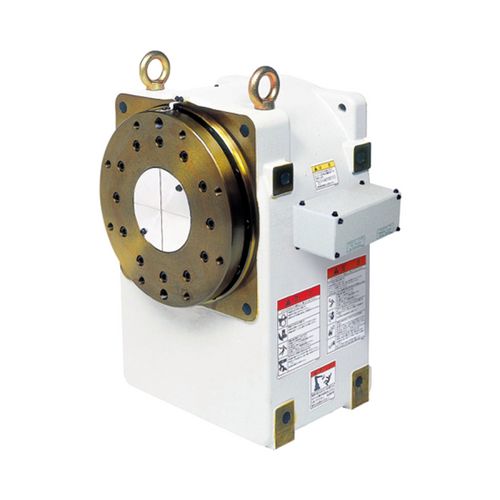

| Positioner | Horizontal rotary positioner A2-1PB250 incl. Synchromotion software and integration into the Easy Teach control system |
