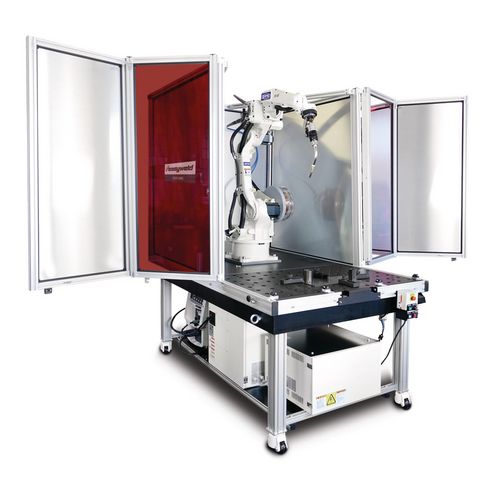

    MIG/MAG welding robot station

    01.04 FD-B6 Welbee P500L, water cooled, option 03

    The mobile welding cell for the craftsman's workshop: simple, inexpensive, safe

    76.340,00 EUR excl. Tax / pc(s).
    90.844,60 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.

    Art.-No. 1850015

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    Basic Features


    Method

    • 131/135


    Sheet thicknesses

    • 1 – 15


    Base materials

    • DIN-CEN ISO/TR 15608


    Typical applications

    • Plant construction
    • Series manufacturing
    • Pipeline construction


    Description



    Shortage of skilled labour? Optimized production! Production costs under pressure?
    The EASY-ARC welding robot is the answer


    Compact, mobile and quickly ready for use

    • Cost-effective to purchase
    • Ready assembled and documented
    • Space-saving and flexible

    Time-saving operation

    • Simple creation of the welding program via the OTC Easy Teach control system
    • No extensive training necessary

    Stable, precise welding robot

    • Physical relief for employees
    • Optimized, consistent welding quality

    Safe operation

    • Protection against access and glare by electrically monitored lightweight protective housing
    • Safety engineering with Monitoring Unit (RMU)



    Cooling
    Cooling typeAF
    Device data
    Pulse rate0,1 - 999 Hz
    Ignitionhigh frequency
    Torch coolingwater
    Volume gas cylinder max.50 l
    Dimensions and weights
    Power source weight80 kg
    Power source length710 mm
    Power source width395 mm
    Power source height762 mm
    Length approx.2140 mm
    Width/depth approx.1380 mm
    Height approx.2400 mm
    Weight approx.1350 kg
    Duty cycle
    at Imax. 40°C TIG DC30 %
    Current at 100% DC 40°C TIG DCAC 270 / DC 300 A
    Duty cycle at Imax. 40°C50 %
    Current at 60% DC 40°C500 A
    Current at 100% DC 40°C410 A
    Electrical connections
    Input current22.9 kVA
    Electrical Data
    Current consumption TIG AC18,5 A
    Input current TIG DC19 A
    Input current electrode AC24 A
    Current consumption electrode DC24,5 A
    Supply voltage400 V
    Mains frequency50 Hz
    Horizontal rotary positioner
    Maximum load capacity250 kg
    Rotation speed26 °/s
    Torque205 Nm
    Repetition accuracy± 0,1 mm
    Power consumption
    TIG DC12,2 kVA
    MIG/MAG25 kVA
    Permanent output at 100% DC410 kVA
    Setting range
    TIG DC5 350 A
    MIG/MAG20 – 500 A
    Switching stagescontinuously variable
    Standards and certifications
    Standard2006/42/EG
    Torch
    Coolingwater
    Torch neck45 °
    Original equipment contact tipsteel 1.2 mm
    Maximum load500 A
    Collision protectionB-type integrated
    Welding robot
    TypeFD-B6
    Kinematicsvertically articulated robot
    Number of axes6
    Working range max.1445 mm
    Maximum load capacity6 kg
    Repetition accuracy± 0,08 mm
    Ambient temperature0 – 45 °C
    Air humidity20 – 80 %
    Welding table
    Length2000 mm
    Width1200 mm
    Load capacity approx.1000 kg
    Bore diameter28 mm
    Bore distance100 mm
    Table top materialSteel S355J2+N, plasma nitrided and BAR-coated
    Table top surface hardness approx.450 – 750 Vickers
    Wire feed
    weldable wires steelDIN EN ISO 14341-A
    weldable wires stainless steelDIN EN ISO 14343-A
    weldable wires aluminiumDIN EN ISO 18273
    weldable wires CuSi 3DIN EN ISO 24373
    weldable wires flux core wireDIN EN ISO 17632-A
    Wire feet unit4 Rollers
    Speed0 – 22 m/min
    Wire feed rolls/driven2 Rollers
    VPE1
    Unit: pc(s).
    Packaging unit: 1







    CoolingWater

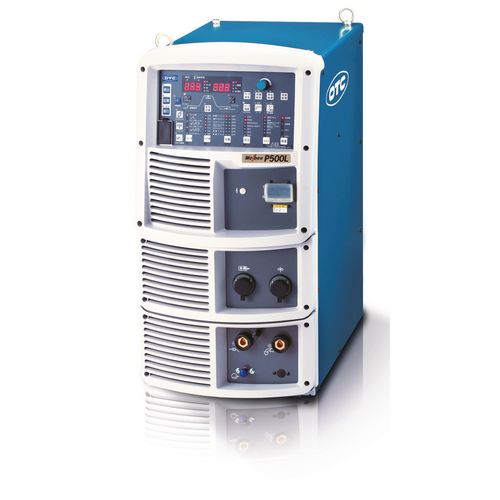

    Welding deviceWelbee P500L (water-cooled inverter pulse power source

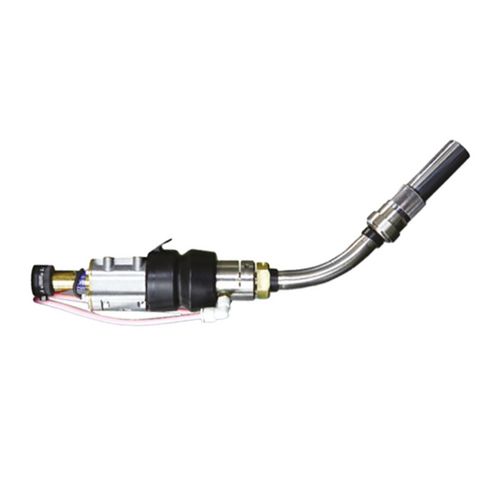

    TorchRTW5000H, robot welding torch with forced shut-off

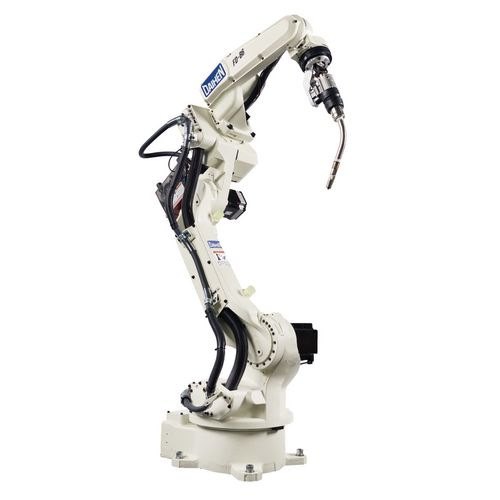

    Welding RobotSix-axis robot FD-B6 with integrated cable routing for optimum accessibility
    Welding table2000 x 1200 mm, 3D welding table with intelligent system grids for clamping and positioning workpieces

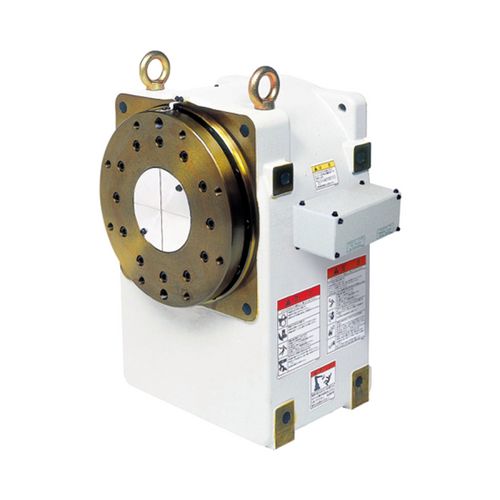

    PositionerHorizontal rotary positioner A2-1PB250 incl. Synchromotion- Software and integration into the Easy Teach control system
