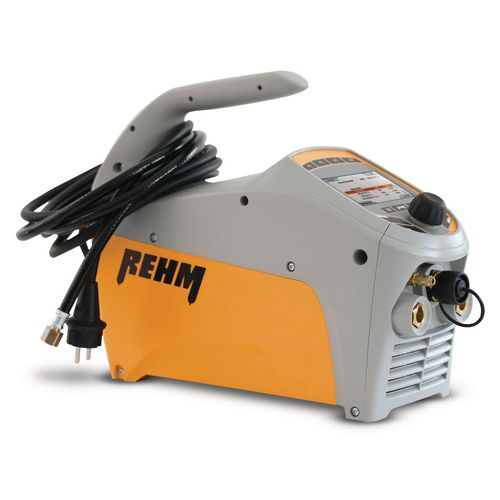

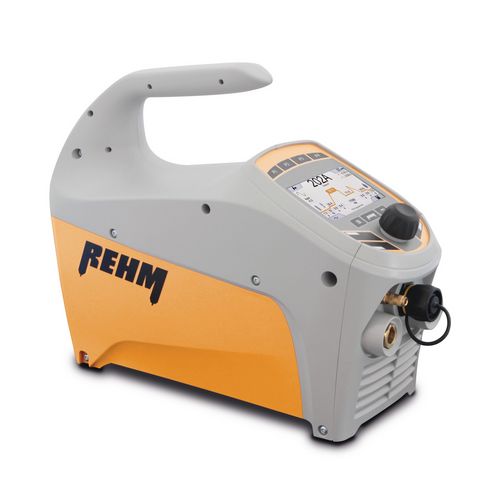

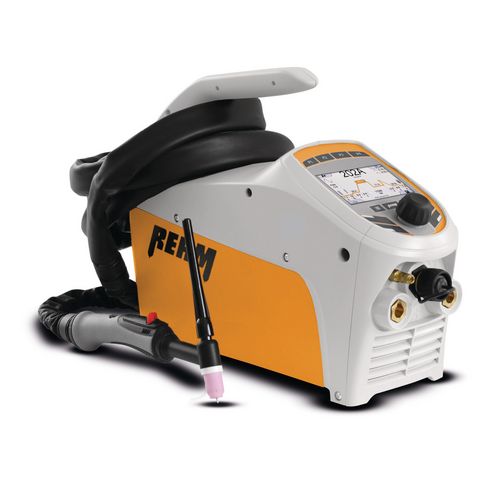

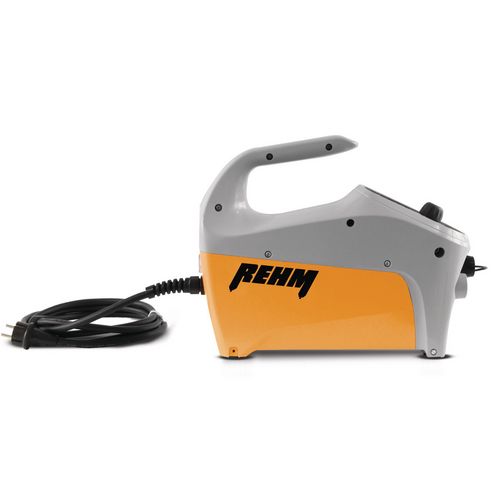

TIG Inverter
TIGER 230AC / DC ULTRA digital
Tacking and welding in perfection, for trade and industry. Revolutionary simple and safe operating concept!
4.225,90
EUR excl. Tax / pc(s).
5.028,82 EUR incl. 19% Tax / pc(s).
5.028,82 EUR incl. 19% Tax / pc(s).
Promotional price *
3.799,00 EUR excl. Tax / pc(s).4.520,81 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 28.02.2025 in Germany.
Art.-No. 1403566
Are you interested in this product?
Put a request
Find Trader
Productdetails
Basic Features
Method
Description

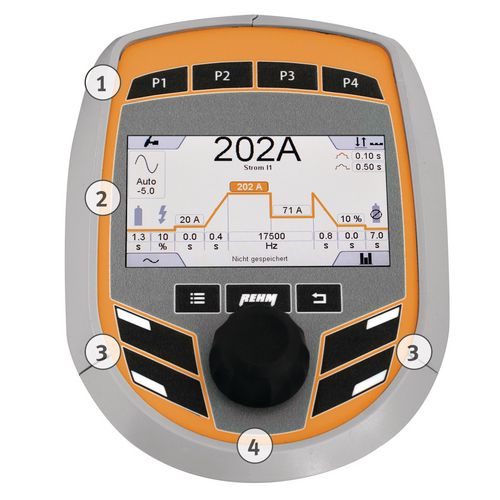

- New, patented operation with full colour display supports the operator with self-explanatory graphics and the display of all set welding parameters
- Working with PFC therefore use on all types of generators is possible as well as worldwide use due to multi-voltage

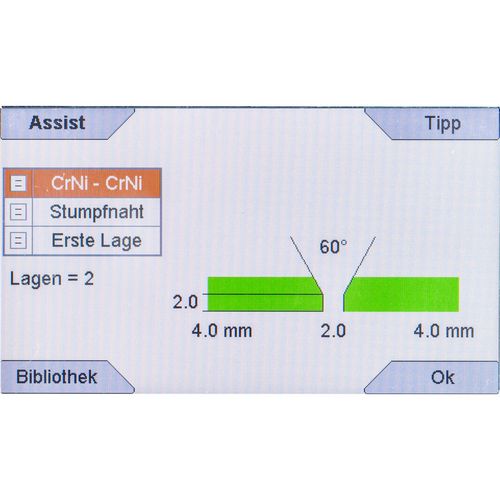

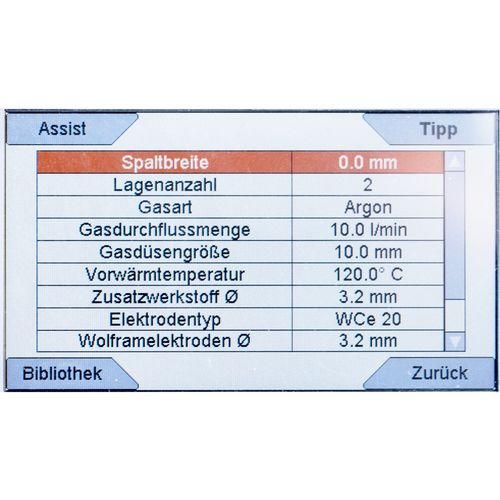

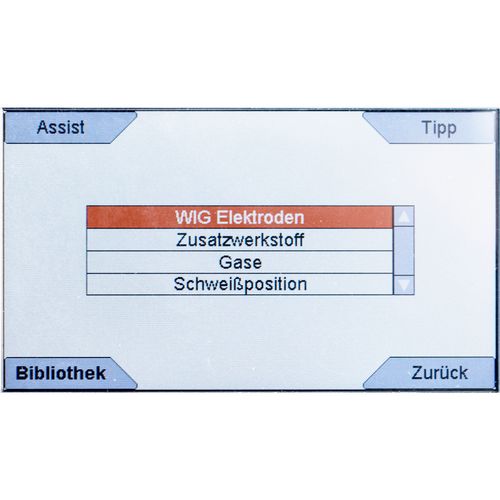

- software with digital assistant and welding material library
- Four Quick-Choice buttons for easy and quick saving of welding tasks
- State-of-the-art primary inverter technology
- At 7.1 to 7.9 kg, the TIGER digital is the lightest REHM TIG machine on the market

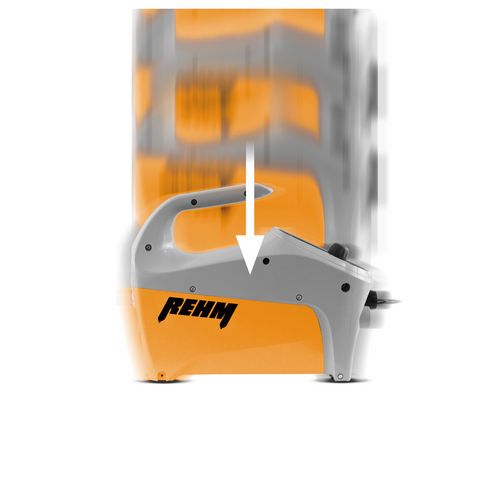

- Very stable and functional housing withstands falls from a height of up to 90 cm without affecting the power electronics
- Dust-protected electronics
- Separate air duct prevents polluted air and particles from reaching the electronics and the device is optimally cooled
- Integrated compartment for storing accessories and consumables
- Up to 230 amperes from 230 volts
- Perfect seam appearance and thus significantly reduced reworking
- With quick connection for
water cooling unit prepared
ULTRA models with the additional highlights:
- hyperpulse with 17,500 Hz
- DUAL.WAVE technology
- point function from 0.01 seconds
- ignition energy adjustable
- end current adjustable
- start current adjustable
- AC- frequency adjustable
- AC- waveform triangle and rectangle selectable
- Display of welding voltage
- 99 programs storable

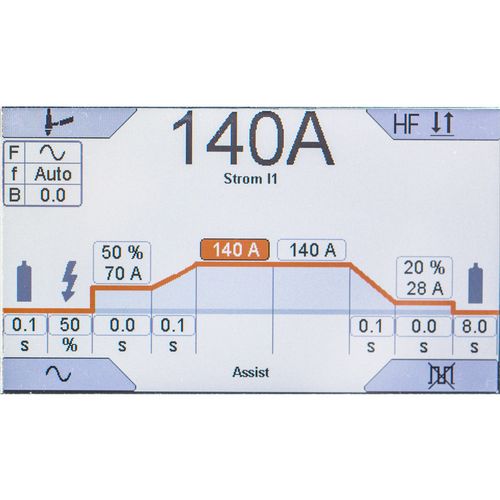

- High resolution display
- High performance primary inverter technology
- PFC
- Dust-protected electronics
- Optimum cooling
- Very light
- Up to 230 amperes from 230 volts
| Device data | |
|---|---|
| Torch cooling | gas / water |
| Dimensions and weights | |
|---|---|
| Length approx. | 480 mm |
| Width/depth approx. | 160 mm |
| Height approx. | 320 mm |
| Weight approx. | 7.9 kg |
| Duty cycle | |
|---|---|
| at Imax. 40°C TIG DC | 35 % |
| Electrical Data | |
|---|---|
| Supply voltage | 230 V |
| Mains frequency | 50/60 Hz |
| Power consumption | |
|---|---|
| TIG DC | 5.8 kVA |
| Setting range | |
|---|---|
| TIG DC | 4 – 230 A |
| Standards and certifications | |
|---|---|
| EMC class | A |
| Explanation EMC class | This Class A welding equipment is not intended for use in residential areas where power is supplied by a public low-voltage power supply system. |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- Cooling device connection
