    5. TIGER 182 AC / DC ULTRA digital
    Brandimage to Product TIGER 182 AC / DC ULTRA digital

    TIG Inverter

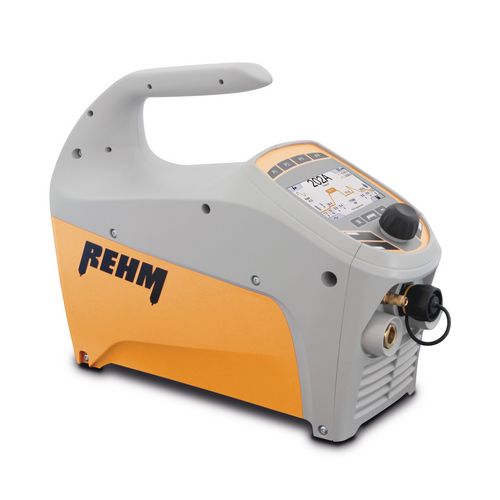

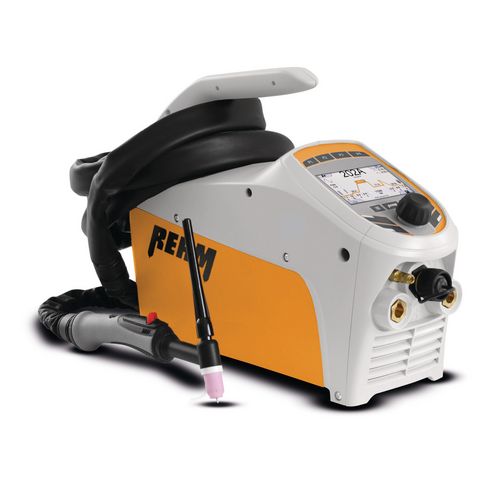

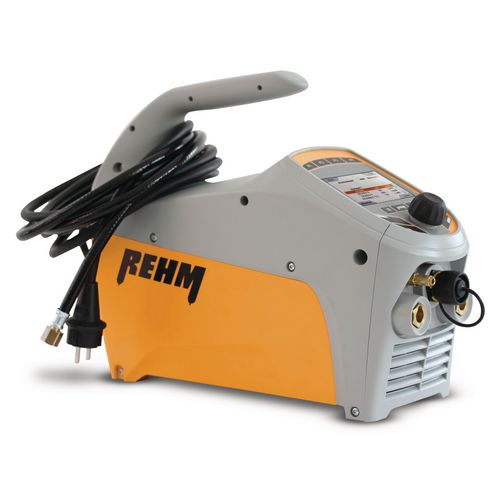

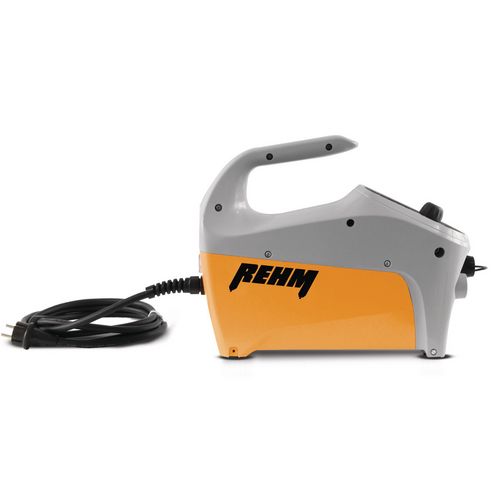

    TIGER 182 AC / DC ULTRA digital

    Tacking and welding in perfection, for trade and industry. Revolutionary simple and safe operating concept!

    3.507,00 EUR excl. Tax / pc(s).
    4.173,33 EUR incl. 19% Tax / pc(s).
    Promotional price *
    3.159,00 EUR excl. Tax / pc(s).
    3.759,21 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 28.02.2025 in Germany.

    Art.-No. 1403524

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    Basic Features


    Method

    TIG

    Description

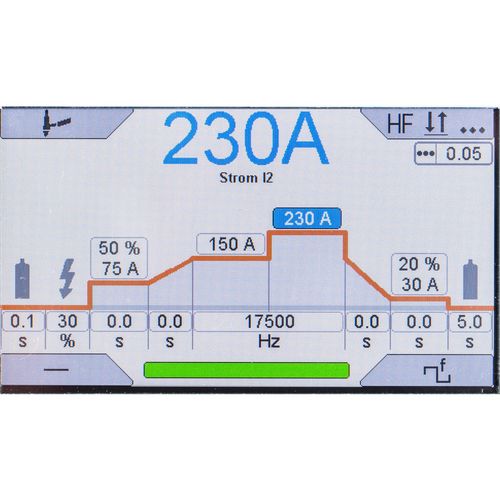

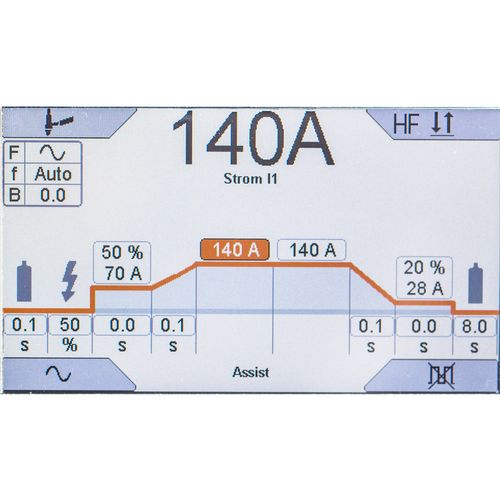

    • New, patented operation with full colour display supports the operator with self-explanatory graphics and the display of all set welding parameters
    • Working with PFC therefore use on all types of generators is possible as well as worldwide use due to multi-voltage

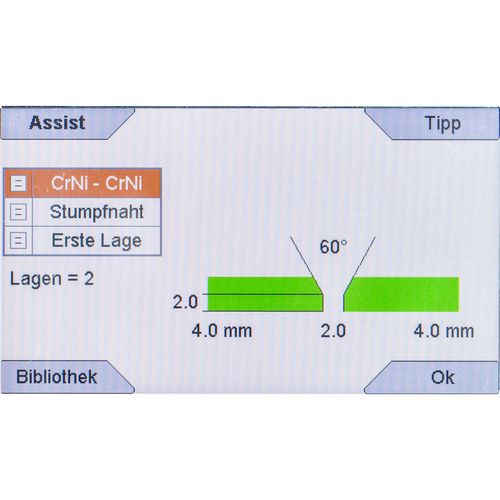

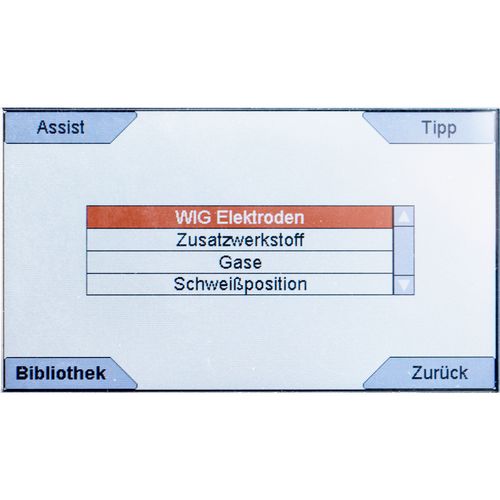

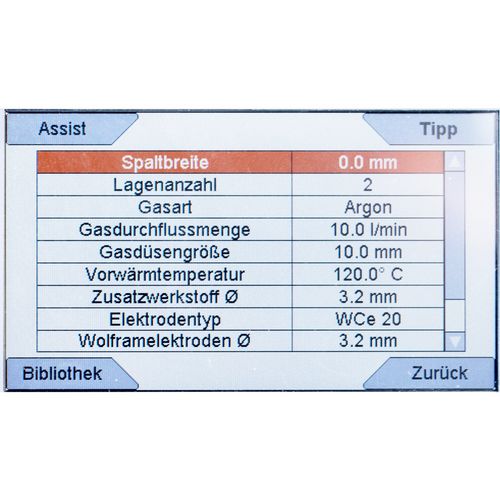

    • software with digital assistant and welding material library
    • Four Quick-Choice buttons for easy and quick saving of welding tasks
    • State-of-the-art primary inverter technology
    • At 7.1 to 7.9 kg, the TIGER digital is the lightest REHM TIG machine on the market

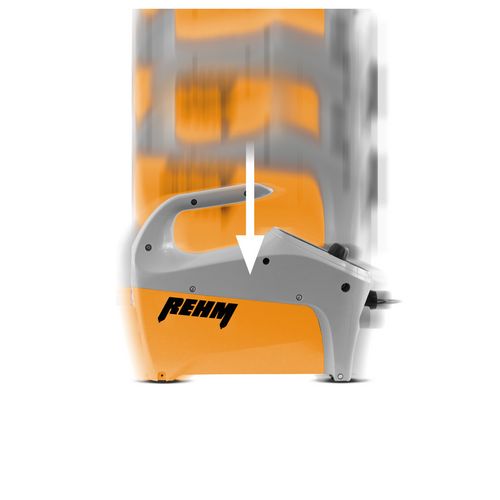

    • Very stable and functional housing withstands falls from a height of up to 90 cm without affecting the power electronics
    • Dust-protected electronics
    • Separate air duct prevents polluted air and particles from reaching the electronics and the device is optimally cooled

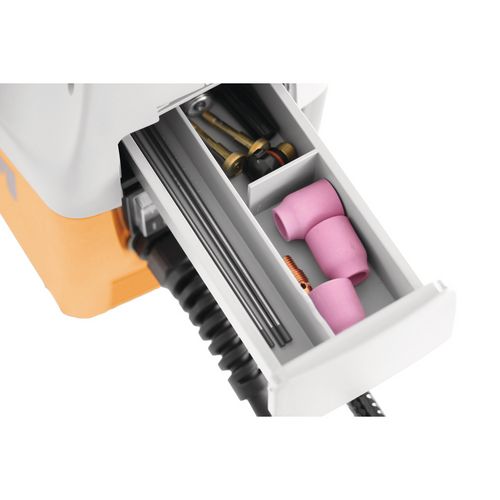

    • Integrated compartment for storing accessories and consumables
    • Up to 230 amperes from 230 volts
    • Perfect seam appearance and thus significantly reduced reworking
    • With quick connection for
      water cooling unit prepared

    ULTRA models with the additional highlights:

    • hyperpulse with 17,500 Hz
    • DUAL.WAVE technology
    • point function from 0.01 seconds
    • ignition energy adjustable
    • end current adjustable
    • start current adjustable
    • AC- frequency adjustable
    • AC- waveform triangle and rectangle selectable
    • Display of welding voltage
    • 99 programs storable



    • High resolution display
    • High performance primary inverter technology
    • PFC
    • Dust-protected electronics
    • Optimum cooling
    • Very light
    • Up to 230 amperes from 230 volts



    Device data
    Torch coolinggas / water
    Dimensions and weights
    Length approx.480 mm
    Width/depth approx.160 mm
    Height approx.320 mm
    Weight approx.7.9 kg
    Duty cycle
    at Imax. 40°C TIG DC40 %
    Electrical Data
    Supply voltage230 V
    Mains frequency50/60 Hz
    Power consumption
    TIG DC6.1 kVA
    Setting range
    TIG DC4 – 180 A
    Standards and certifications
    EMC classA
    Explanation EMC classThis Class A welding equipment is not intended for use in residential areas where power is supplied by a public low-voltage power supply system.
    VPE1
    Unit: pc(s).
    Packaging unit: 1







    Rehm GmbH & Co. KG
    Ottostraße 2
    73066 Uhingen
    Deutschland / Germany
    rehm@rehm-online.de

    If a guarantee is shown in the article description and/or in the description of the scope of delivery, your legal rights of liability for defects towards your seller remain unaffected. For the scope, duration, content and the guarantor, please refer to the guarantee conditions. We are not liable for printing errors, mistakes or incorrect presentation. Technical and optical changes are reserved. Fig. partly with optional accessories. Delivery is made exclusively according to our terms of delivery and payment. The sale is carried out via the specialized trade.

    Optional parts

    Optional parts can not be retrofitted and are available only when ordering new machines.
