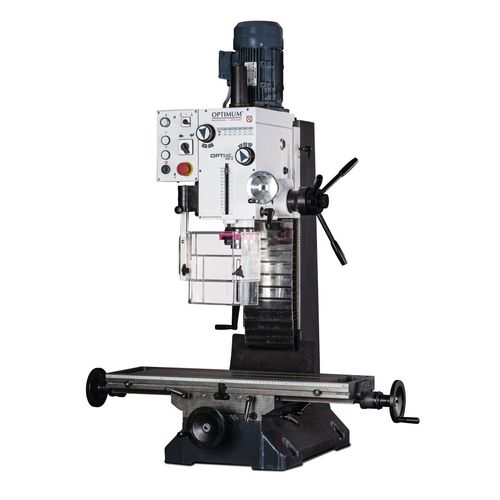

    • Productimage for OPTImill MB 4
    • Productimage for OPTImill MB 4
    • Productimage for OPTImill MB 4
    • Productimage for OPTImill MB 4
    • Productimage for OPTImill MB 4
    • Productimage for OPTImill MB 4
    • Productimage for OPTImill MB 4
    • Productimage for OPTImill MB 4
    • Productimage for OPTImill MB 4
    • Productimage for OPTImill MB 4
    Brandimage to Product OPTImill MB 4

    Precision drilling-milling machine

    OPTImill MB 4

    Universal precision drilling-milling machine with two-stage drive motor with gearbox for optimal power transmission

    2.899,00 EUR excl. Tax / pc(s).
    3.449,81 EUR incl. 19% Tax / pc(s).
    Promotional price *
    2.749,00 EUR excl. Tax / pc(s).
    3.271,31 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 28.02.2025 in Germany.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 3338451

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Heavy, solid
    • cast
    • designQuality industrial electric motorHighly
    • smooth running thanks to ground gear wheels running in an oil
    • bathRight/left
    • rotationMassive
    • and generously dimensioned cross table, with T-slots and adjustable gibsDrilling
    • depth
    • stopManual
    • spindle sleeve feed with fine
    • feedAdjustable and readjustable feed spindle playOperator-friendly
    • control panel with emergency stop switchColumn
    • with hand-scraped dovetail guideHeight-adjustable
    • , large protective screen with microswitch
    • Wide speed range from 60 - 3.000 min¯¹ with two stages, electronically controlled



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Dimensions and weights
    Length approx.1155 mm
    Width/depth approx.775 mm
    Height approx.1420 mm
    Weight approx.320 kg
    Drilling/milling output
    Max. size milling head63 mm
    Max. size shaft milling cutter28 mm
    Drilling performance steel (S235JR)32 mm
    Continuous drilling performance steel (S235JR)28 mm
    Electrical Data
    Supply voltage400 V
    Mains frequency50 Hz
    Milling table horizontal
    Table length800 mm
    Table width240 mm
    Max. clearance vertical spindle - milling table460 mm
    T-groove size14 mm
    T-groove number3
    T-groove spacing63 mm
    Max. load bearing capacity80 kg
    Travel
    X axis manual450 mm
    Y axis manual195 mm
    Z axis manual430 mm
    Vertical spindle
    Reach275 mm
    Spindle chuckMT 4
    Speed range95 – 3200 min¯¹
    Tightening barM16
    Vertical spindle normal operation1,1 / 1,5 kW
    Swivel range milling cutter head Z - X plane± 45 °
    Quill diameter75 mm
    Quill stroke120 mm
    VPE1
    Unit: pc(s).
    Packaging unit: 1

    • Adapter MK4/MK 3
    • Pull rod M 16
    • Operating tool
