    Brandimage to Product OPTIsaw CS 315

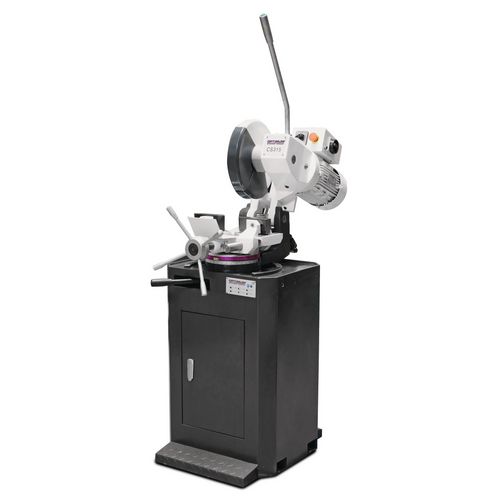

    Manual metal-cutting circular saw

    OPTIsaw CS 315

    Manual version saws for steel, iron, light metals, solid material and profiles

    2.355,00 EUR excl. Tax / pc(s).
    2.802,45 EUR incl. 19% Tax / pc(s).
    Promotional price *
    2.259,00 EUR excl. Tax / pc(s).
    2.688,21 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 28.02.2025 in Germany.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 3302300

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Swivel range of ± 45 °
    • Easy-to-read angle scale enables precise work
    • Seconds adjustment of the miter
    • Protected vise spindle

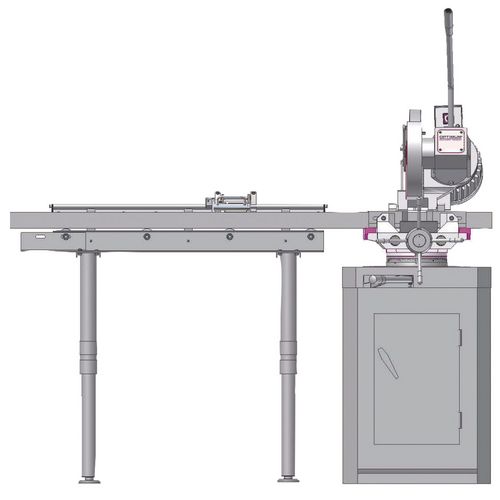

    • Massive machine base on both sides with holes for the mounting of the material stand MSR
    • Long handle allows sawing without great effort with integrated push-button (on / off)
    • Automatic switching on of the coolant pump when sawing
    • Functional protection device, closed construction, movable
    • Fast opening mechanism for optimum safety when cutting

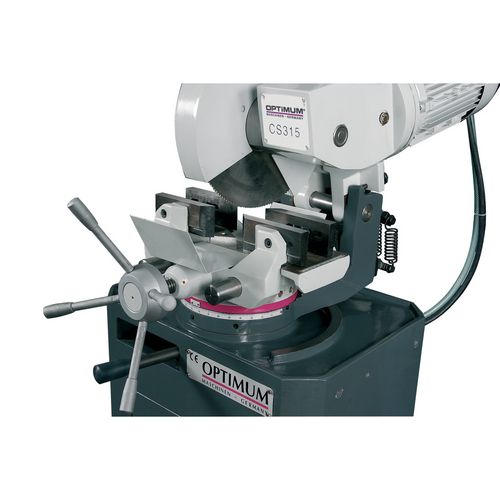

    • Centrally exciting vise, 4-fold guided with individually adjustable clamping jaws. Cutting always takes place in optimal position to the workpiece
    • Massive machine base
    • Protected vise spindle
    • Machine base sizes:
      - CS 275 - 460 x 515 x 775 mm and
      - CS 315 - 546 x 620 x 801 mm
    • The saw is delivered without circular saw blade (saw blade division freely selectable)



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Saw blade speed(s)19/38 min¯¹
    Saw blade diameter315 mm
    Miter angle-45 – +45 °
    FeedManual
    VPE1
    Cutting capacity
    0° (round) solid material85 mm
    0° (square) solid material85 mm
    0° (rectangle) solid material70 x 130 mm
    +45° (round) solid material85 mm
    +45° (square) solid material85
    +45° (rectangle) solid material70 x 90 mm
    Dimensions and weights
    Length approx.560 mm
    Width/depth approx.902 mm
    Height approx.1765 mm
    Weight approx.235 kg
    Electrical Data
    Drive motor output0.75;1.5 kW
    Supply voltage400 V
    Mains frequency50 Hz
    Unit: pc(s).
    Packaging unit: 1

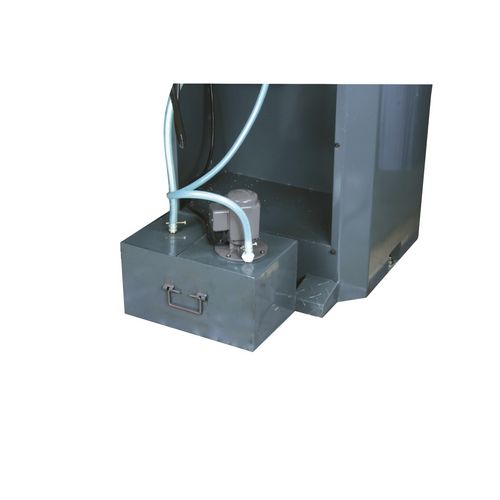

    • Coolant system
    • substructure
