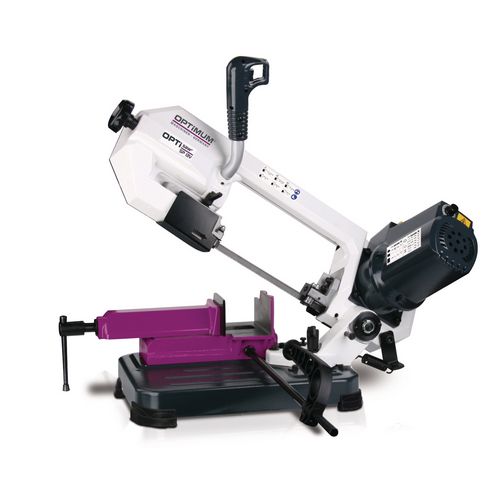

    Miter band saw

    OPTIsaw SP 13V

    Portable miter band saws with high cutting precision, particularly low noise. With continuously adjustable saw blade speed

    630,00 EUR excl. Tax / pc(s).
    749,70 EUR incl. 19% Tax / pc(s).
    Promotional price *
    599,00 EUR excl. Tax / pc(s).
    712,81 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 28.02.2025 in Germany.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 3300075

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Standard with high-quality bi-metal saw band
    • Adjustable material stop for serial work
    • Pushbutton for the saw blade running switches the run of the saw blade on and off
    • Base plate with non-slip feet
    • Low vibration and low wear due to special gearbox with two hardened steel gears

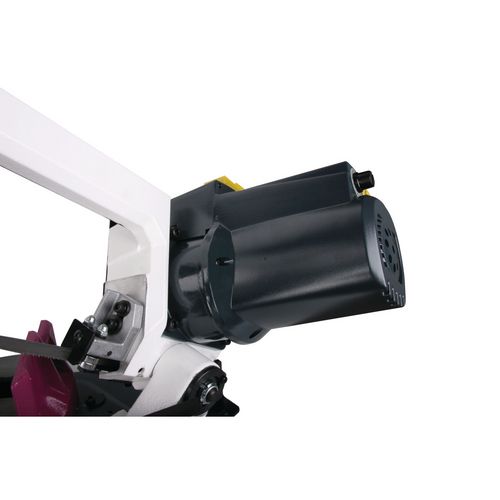

    • Low-speed Vario drive motor with carbon brushes for up to 10 times longer service life

    SP 11V

    • Saw bar can be swiveled from 0 ° to + 45 ° to allow angled saw cuts

    SP 13V

    • Saw bar can be swiveled from 0 ° to + 60 ° to allow angled saw cuts


    The metal band saw (frequency converter) complies with the standard DIN EN 55011: Class C2



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Cutting ranges
    0° round (full material)125 mm
    0° quadratic (full material)125 mm
    0° rectangle horizontal (full material)125 x 125 mm
    0° rectangle horizontal vertical cut125 x 125 mm
    +45° round (full material)85 mm
    +45° quadratic (full material)85 mm
    +45° rectangle horizontal (full material)85 x 85 mm
    +60° round (full material)45 mm
    +60° quadratic (full material)45 mm
    +60° rectangle horizontal (full material)45 x 50 mm
    Explanation Cutting rangeThe cutting range was determined with aluminum. It may vary when using different materials and may be smaller under certain circumstances (not cutting capacity).
    Dimensions and weights
    Max. width/depth650 mm
    Max. height680 mm
    Length approx.720 mm
    Width/depth approx.300 mm
    Height approx.420 mm
    Weight approx.19.5 kg
    Electrical Data
    Drive motor output1 kW
    Supply voltage230 V
    Mains frequency50 Hz
    Machine data
    Saw band speed(s)30 – 80 m/min
    Saw band length1440 mm
    Saw band width13 mm
    Saw band thickness0,65 mm
    Cutting angle0 – 60 °
    VPE1
    Unit: pc(s).
    Packaging unit: 1

    • Bi-metal saw band
    • material stop
