Lathe

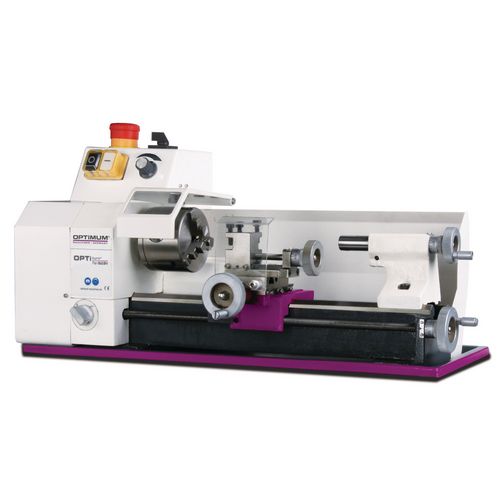

OPTIturn TU 1503V
The smallest lathe with electronically adjustable speed
955,00
EUR excl. Tax / pc(s).
1.136,45 EUR incl. 19% Tax / pc(s).
1.136,45 EUR incl. 19% Tax / pc(s).
Promotional price *
889,00 EUR excl. Tax / pc(s).1.057,91 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 28.02.2025 in Germany.
Art.-No. 3420260
Are you interested in this product?
Put a request
Find Trader
Productdetails
- DC motor
- Verrippt prism bed made of gray cast iron, inductively hardened and ground
- Hardened and ground Z-axis guideway
- Guaranteed concentricity of the spindle nose better than 0.015 mm
- Concentricity - lathe chuck max 0.05 mm
- Lead screw for thread cutting or automatic longitudinal turning
- Longitudinal, level and upper slide
- Automatic longitudinal / lead screw drive
- Large threading area due to change gear set
- 3-jaw lathe chuck in the standard scope of delivery
- Easy and fast speed change via V-belt
- Safety switch in the cover
- Right / left rotation in the control panel switchable
- Chuck protection with microswitch
- Handwheels with adjustable fine scale 0.04 / 0.01 mm
- All guides can be adjusted without clearance by means of wedge strips
- Emergency stop impact switch
- Low voltage electronics
- EMC filter class C1
| Dimensions and weights | |
|---|---|
| Length approx. | 570 mm |
| Width/depth approx. | 340 mm |
| Height approx. | 300 mm |
| Weight approx. | 23 kg |
| Electrical Data | |
|---|---|
| Drive motor output | 0,45 kW |
| Supply voltage | 230 V |
| Mains frequency | 50 Hz |
| Feed | |
|---|---|
| Longitudinal feed range | 0,05 – 0,1 mm/rev |
| Number of longitudinal feeds | 2 |
| Pitches | |
|---|---|
| Metric pitch | 0,5 – 1,5 mm/rev |
| Number of metric pitches | 8 |
| Diametrical pitch | 30 |
| Speed range | |
|---|---|
| Number of gears | 1 |
| Speed range | 120 – 3000 min¯¹ |
| Speed control | electronically adjustable |
| Spindle | |
|---|---|
| Spindle chuck | cylindrical Ø 22 |
| Spindle bore/rod passage diameter | 11 mm |
| Tool holder max. chuck height | 12 mm |
| Spindle cone | MT 1 |
| Standards and certifications | |
|---|---|
| Standard | DIN EN 55011 |
| EMC level | C1 |
| Tailstock | |
|---|---|
| Chuck | Shortened MT 1 |
| Quill stroke | 30 mm |
| Travel | |
|---|---|
| Travel upper slide | 40 mm |
| Travel cross slide | 55 mm |
| Travel carriage saddle | 270 mm |
| Work areas | |
|---|---|
| Max. height | 75 mm |
| Max. width | 265 mm |
| Swing diameter above planing slide | 70 mm |
| Bed width | 70 mm |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- Three-jaw lathe chuck Ø 80 mm,
centrically exciting - Fixed center point MK1
- bulkhead
- chip pan
- Change gear set
- Double tool holder
- operating tool
