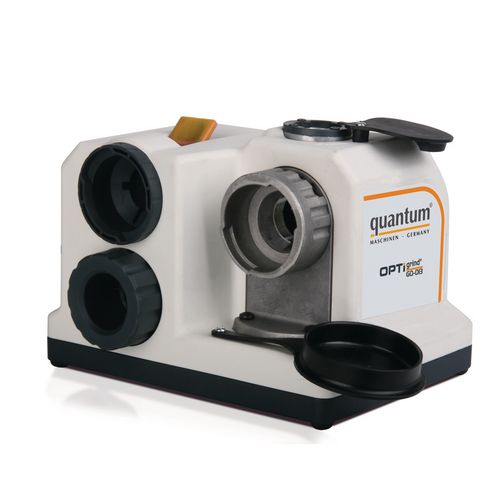

Drill grinding machine
quantum GQ-D13
The handy drill grinder from quantum. For easy regrinding of twist drills from Ø 3 mm to Ø 13 mm
73,00
EUR excl. Tax / pc(s).
86,87 EUR incl. 19% Tax / pc(s).
86,87 EUR incl. 19% Tax / pc(s).
Promotional price *
68,90 EUR excl. Tax / pc(s).81,99 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 28.02.2025 in Germany.
Art.-No. 3140020
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Easy operation for cost-effective grinding of double-edged twist drills
- Drill loops with no previous knowledge - clean, fast and precise
- Easy to transport
- Easy replacement of the grinding wheel
- Sharpening forced action and therefore easy to use
- Automatic grinding of the tip geometry thanks to the cam
- Robust plastic housing with non-slip feet
- Diamond grinding stone with long life for a perfect finish
In three steps to the ground drill

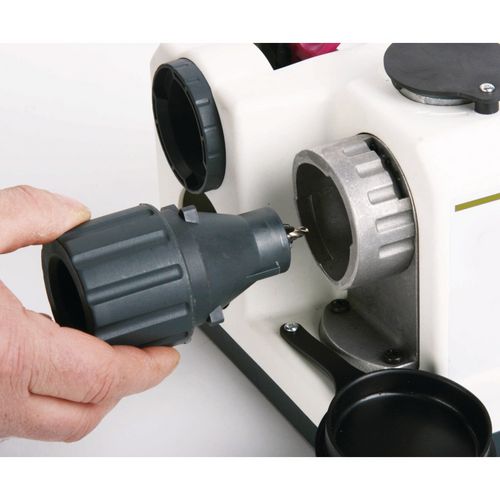

- Adjust drill bit - Twist drill is aligned in the overhang length and in the correct angle
- Regrind the drill - by turning it from one stop to the other

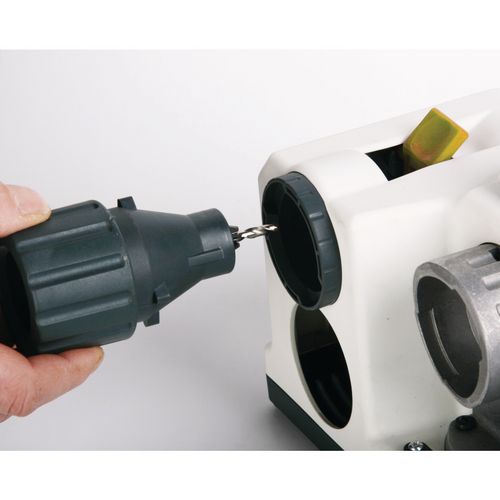

- Tooth drill - Also by slightly turning from stop to stop
| Speed | 4200 min¯¹ |
| Grinding disc external diameter | 78 mm |
| Grinding capacity drill diameter | 3 – 13 mm |
| VPE | 1 |
| Dimensions and weights | |
|---|---|
| Length approx. | 220 mm |
| Width/depth approx. | 200 mm |
| Height approx. | 160 mm |
| Weight approx. | 2.5 kg |
| Electrical Data | |
|---|---|
| Drive motor output | 0.08 kW |
| Supply voltage | 230 V |
| Mains frequency | 50 Hz |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- Diamond grinding wheel
- Collet holder
