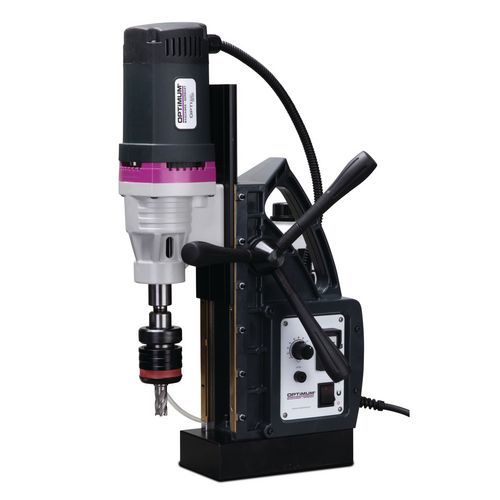

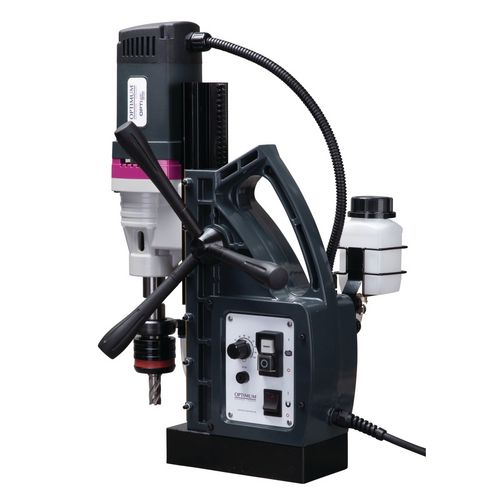

Magnetic core drill
OPTIdrill DM 60V
with continuously variable speed, when you need reliability, precision and economy at work
935,00
EUR excl. Tax / pc(s).
1.112,65 EUR incl. 19% Tax / pc(s).
1.112,65 EUR incl. 19% Tax / pc(s).
Promotional price *
829,00 EUR excl. Tax / pc(s).986,51 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 28.02.2025 in Germany.
Art.-No. 3071160
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Low weight: Die-cast magnesium frame
- Stable drill guide due to long and low-mounted sleeve holder
- Ideal for the construction site: grounded with dual insulation

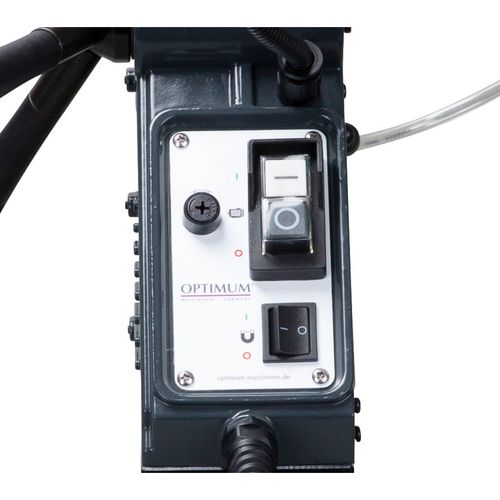

- Safe switch arrangement
- High magnetic holding force
- High quality design

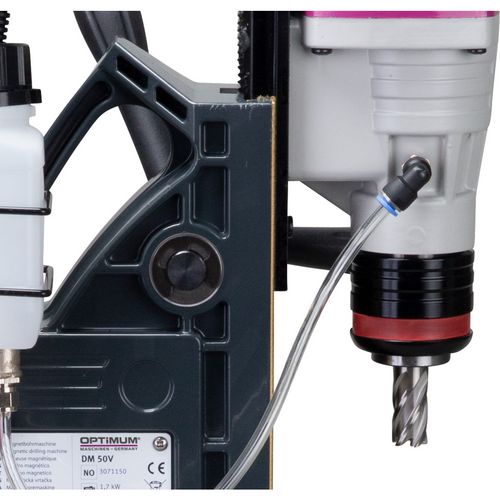

- Automatic internal lubrication: coolant is fed directly to the tip of the core drill
- Internal self-lubricating function for a longer transmission service life
- Conversion from core to full drilling in just a few steps
Equipment details:

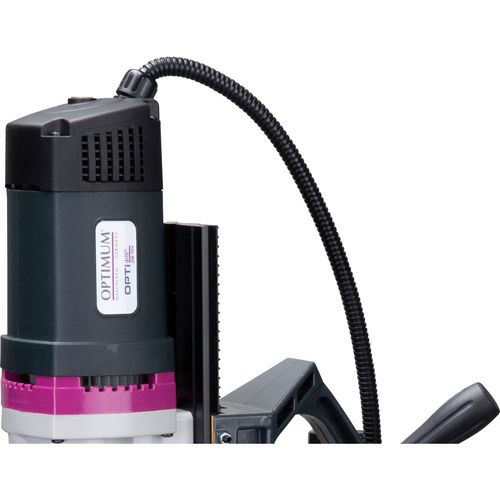

Motor- powerful
- High torque
- Low maintenance
Guides
- Safe guides for stability and precision

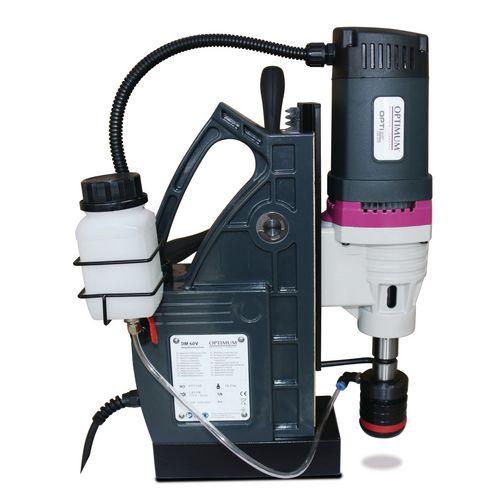

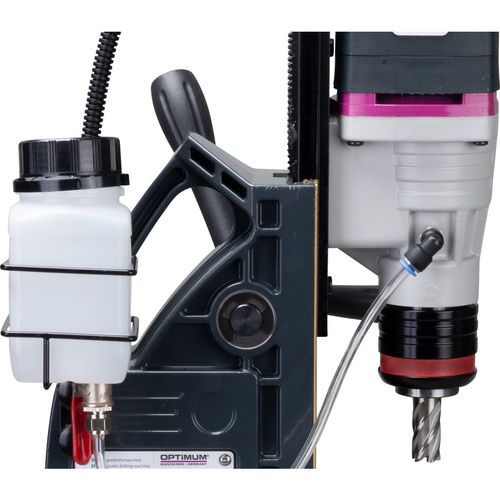

Coolant tank
- removable
- External fastening
- Carefully considered and practical

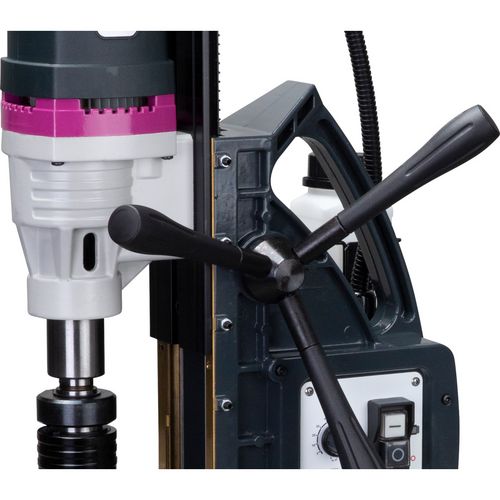

Handles
- Ergonomic and rugged handles for "balanced" holding and fastening of the machine
- Rugged crank

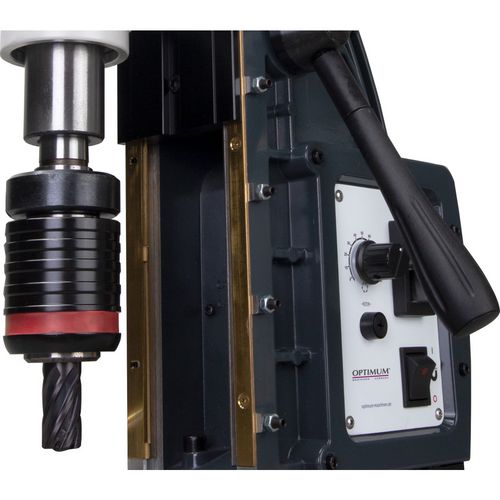

Spindle holder
- MK mount
- Weldon shank
Speed
- Continuously adjustable
| Collet | |
|---|---|
| Spindle | MK2 |
| Drill | Weldon 3/4" |
| Core drills | |
|---|---|
| Core drills Ø max. with manual feed | 60 mm |
| Max. drilling depth core drilling with manual feed | 50 mm |
| Dimensions and weights | |
|---|---|
| Height (product) min. | 450 mm |
| Height (product) max. | 650 mm |
| Length approx. | 330 mm |
| Width/depth approx. | 240 mm |
| Weight approx. | 18.3 kg |
| Drive output | |
|---|---|
| Absorbed power drive motor | 1.89 kW |
| Electrical Data | |
|---|---|
| Supply voltage | 230 V |
| Mains frequency | 50 Hz |
| Full drills | |
|---|---|
| Drill Ø max. full drilling directly mounted | 23 mm |

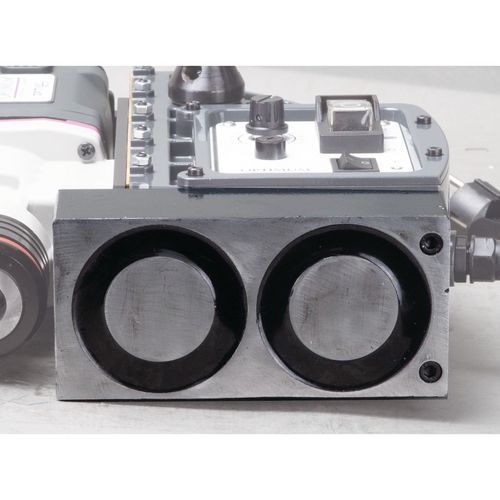

| Magnet | |
|---|---|
| Holding force | 16 kN |
| Magnet base length | 202 mm |
| Magnet base width | 103 mm |
| Speed range | |
|---|---|
| Idle (CW run) | 310 – 550 min¯¹ |
| Speed control | stepless |
| Standards and certifications | |
|---|---|
| EMV-Class | C2 |
| Standard | DIN EN 55011 |
| Protection class | IP 42 |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1

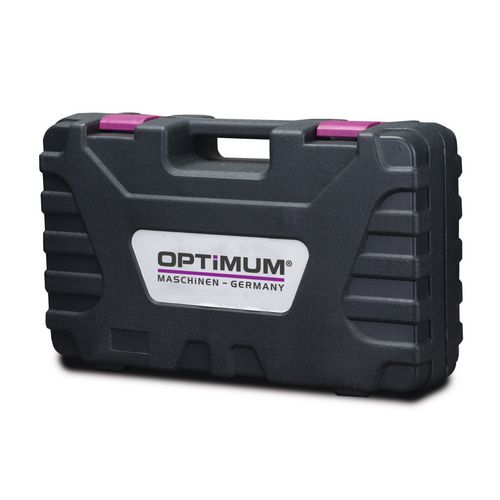

- Transport case
- Coolant tank
- Safety chain
- quick-change drill chuck
- Tool
| Vario drive | ✔ |
| Spindle sleeve feed | Manual |
