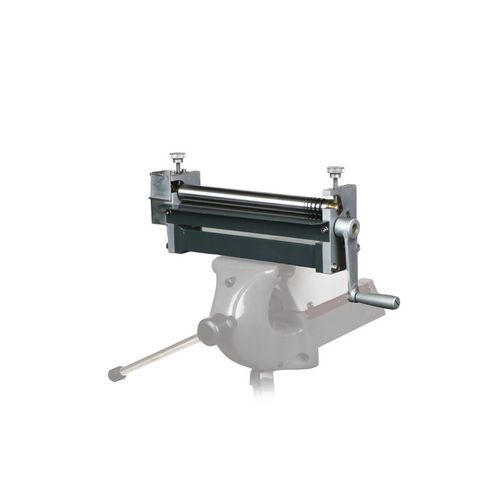

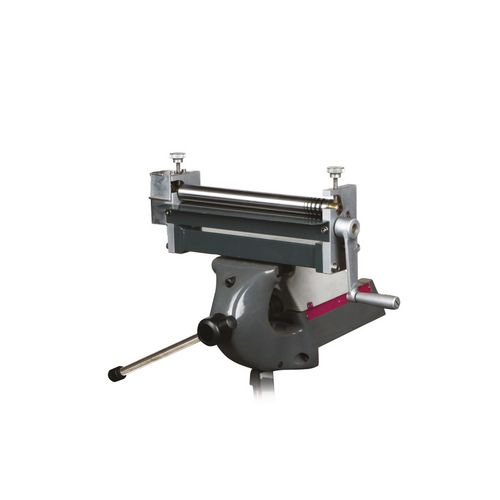

    Three-roll plate rolling machine

    BM 3

    Universally applicable

    209,00 EUR excl. Tax / pc(s).
    248,71 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 3244030

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Bending and rolling of wires, pipes and sheets
    • Ground bending rolls
    • Mounted steel sidewalls (self-lubricating)
    • Two removable rollers

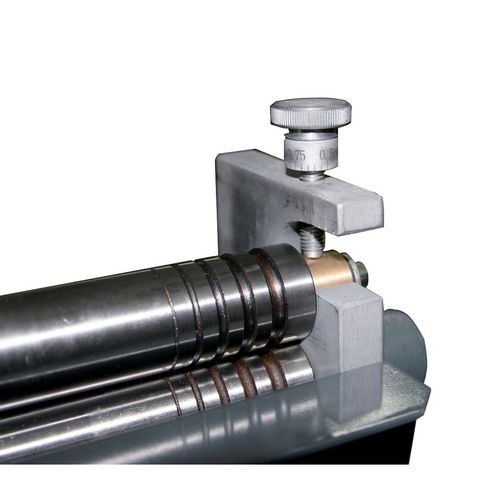

    • Separate adjustment for material thickness and rolling radius
    • For use on the vise
    • Stable support surface
    • Wire insert grooves Ø 1 - 2 - 3 - 4 - 5 mm



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Bending performance
    Max. bending performance in steel 400 N/mm²²1 mm
    Max. bending performance in stainless steel1 mm
    Max. bending performance aluminium2 mm
    Max. bending performance in brass1 mm
    Max. bending performance gold/silver/tin plate2 mm
    Max. bending performance narrow widths3 mm
    Min. bending diameter35 mm
    Max. bending diameterunlimited
    Dimensions and weights
    Max. working width310 mm
    Top roller diameter30 mm
    Wire insert groove diameter1/2/3/4/5 mm
    Length approx.492 mm
    Width/depth approx.190 mm
    Height approx.185 mm
    Weight approx.10 kg
    VPE1
    Unit: pc(s).
    Packaging unit: 1
