| Working width | 4060 mm |
| Cutting performance material tensile strength 400 N/mm² | 10 mm |
| Cutting performance material tensile strength 700 N/mm² | 6 mm |
| Explanation to cutting performances | with limited material length |
| Number of hold-down units | 20 St |
| Number of sheet support arms | 3 St |
| Rear stop adjustment range up to | 1000 mm |
| Rear stop speed | 120 mm/s |
| Side stop length | 1500 mm |
| Motor output rear stop | 0.37 kW |
| Cutting angle | 1,5 ° |
| Max. strokes for full cutting length | 10 /min |
| Cutting kerf adjustment min. | 0.05 mm |
| Cutting kerf adjustment max. | 1 mm |
| Oil tank capacity | 350 l |
| Air consumption per cycle | 40 l |
| VPE | 1 |
Hydraulic swing cut sheet metal shears
HTBS BASIC S 4010
Equipped with metal slide and motorized cutting gap adjustment
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 4205041
Are you interested in this product?
Put a request
Find Trader
Productdetails
Standard version:
- CybTouch 8 touchscreen NC control in the swivel arm
- NC-controlled backgauge (5-1000mm) driven via recirculating ball screws and guided linearly
- Safety light curtain for the rear area
- Motorized cutting gap adjustment via the control unit
- 1500 mm side fence with scale and T-slot
- Front support arms 1000mm with scale and T-slot
- Stainless steel table supports with integrated transfer balls
- Hold-down device with plastic caps to protect the material
- Variable cutting length adjustment via the control unit
- Folding finger guard 1000mm with viewing window inserts
- Sheet chute in the rear area
- Cutting line lighting with silhouette
- Knives suitable for cutting stainless steel
- Upper blade with two cutting edges and lower blade with four cutting edges
- Electrical components from Schneider and Mitsubishi
Equipment options:
- Adjustable angle fence
- Laser cutting line display
- Front light barrier instead of finger guard
- Finger guard can be opened over the entire length
- Additional front support arms
- Additional side stop on the right
- Extensions of the standard support arms, the side or back gauge
- Transfer ball in the side stop and the front support arms
- Servo motor for the back gauge
- Manual or automatic central lubrication
- Pneumatic sheet support systems
- Small parts diverter with pneumatic opening

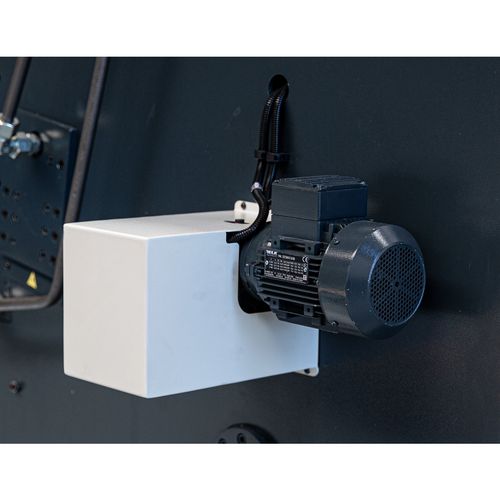

- Oil cooler or oil warmer
- touch screen NC-control CybTouch 8 in swivel arm
- NC-controlled backgauge (5-1000mm) driven by ball screws
- Safety light barrier for the rear area
- motorized cutting gap adjustment via the control
- side stop 1500mm with scale and T-slot
- Two front support arms 1000mm
- Table supports made of stainless steel with integrated transfer balls
- Folding finger guard 1000mm with viewing glass sowingtzen
- upper knife with two and lower knife with four cutting edges
- Extensive options available
| Dimensions and weights | |
|---|---|
| Table length | 4400 mm |
| Table depth | 585 mm |
| Table height | 900 mm |
| Length approx. | 5000 mm |
| Width/depth approx. | 3450 mm |
| Height approx. | 2100 mm |
| Weight approx. | 13800 kg |
| Electrical Data | |
|---|---|
| Drive motor output | 30 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
| Cutting kerf adjustment | ja |
| Lateral stop | ja |
If a guarantee is shown in the article description and/or in the description of the scope of delivery, your legal rights of liability for defects towards your seller remain unaffected. For the scope, duration, content and the guarantor, please refer to the guarantee conditions. We are not liable for printing errors, mistakes or incorrect presentation. Technical and optical changes are reserved. Fig. partly with optional accessories. Delivery is made exclusively according to our terms of delivery and payment. The sale is carried out via the specialized trade.
Optional parts
Optional parts can not be retrofitted and are available only when ordering new machines.
