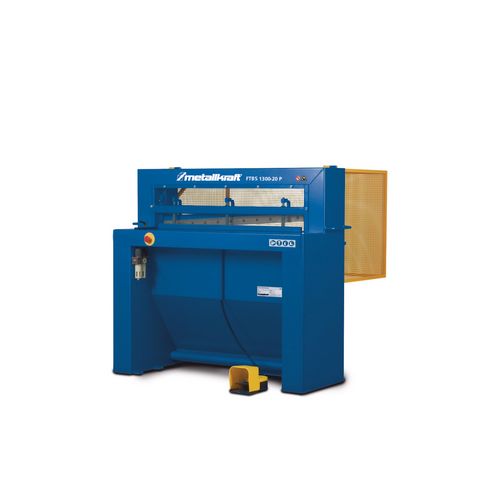

Pneumatic sheet metal shears
FTBS 1300-20 P
With foot control, universally applicable in industry and craft
9.626,00
EUR excl. Tax / pc(s).
11.454,94 EUR incl. 19% Tax / pc(s).
11.454,94 EUR incl. 19% Tax / pc(s).
Promotional price *
8.899,00 EUR excl. Tax / pc(s).10.589,81 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 28.02.2025 in Germany.
Art.-No. 3755020
Are you interested in this product?
Put a request
Find Trader
Productdetails
- P version with two pneumatic auxiliary cylinders and foot switch
- Sturdy and robust welded construction
- Suitable for cutting steel and non-ferrous metals
- Foot operation leaves both hands free for material feed
- Large viewing window made of Plexiglas
- High-quality steel blade
- Baffle guide
- Simple adjustment of the cutting blade via eight screws
- Angle-adjustable side stop with millimeter scale
- Maximum distance from finger guard to work table is 5 mm, ensuring maximum safety
- Cutting line lighting as standard
| Working width | 1330 mm |
| Cutting performance material tensile strength 400 N/mm² | 2.00 mm |
| Rear stop adjustment range up to | 550 mm |
| Side stop length | 200 mm |
| Cutting angle | 3 ° |
| Max. strokes for full cutting length | 14 /min |
| VPE | 1 |
| Dimensions and weights | |
|---|---|
| Length approx. | 1790 mm |
| Width/depth approx. | 1250 mm |
| Height approx. | 1290 mm |
| Weight approx. | 310 kg |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- High-quality cutting knife made of steel
- Line lighting
- back gauge
- Large dimensioned viewing window made of Plexiglas
- Angle adjustable side stop
- millimeter scale
