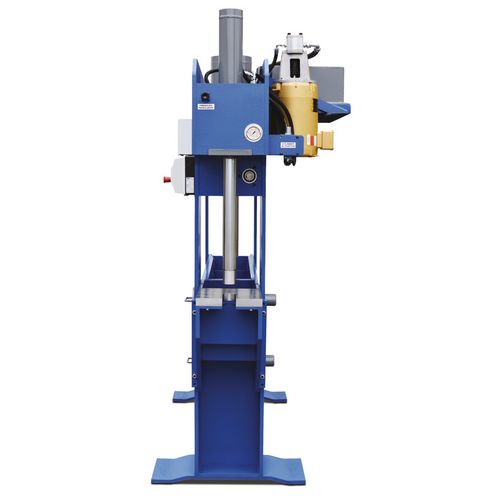

Fully hydraulic workshop press
WPP 50-12 RP
Flexible work by movable master cylinder, with lateral Räumveresse.
18.390,00
EUR excl. Tax / pc(s).
21.884,10 EUR incl. 19% Tax / pc(s).
21.884,10 EUR incl. 19% Tax / pc(s).
Promotional price *
15.899,00 EUR excl. Tax / pc(s).18.919,81 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 28.02.2025 in Germany.
Art.-No. 4051050
Are you interested in this product?
Put a request
Find Trader
Productdetails
- For pressing out and pressing in bearings, bolts and bushings as well as for repair and assembly work, press work, load tests, weld test tests and much more

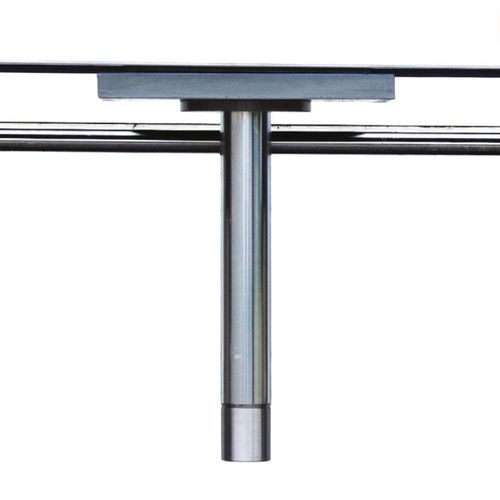

- With pressure mandrel adapter for two different pressing diameters of the cylinders for different applications

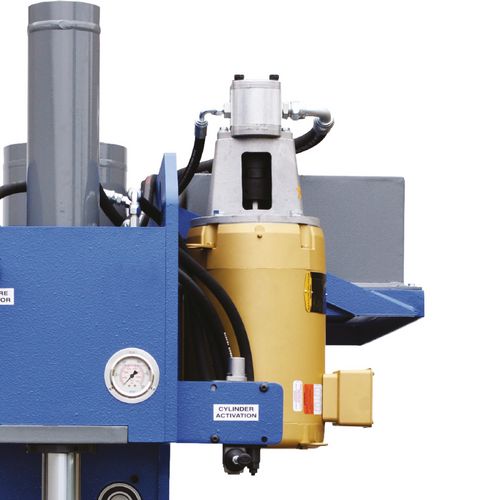

- Hydraulic control of the stroke and the right / left movement of the cylinder and the height adjustment of the table
- Master cylinder laterally movable via lever
- Pressure-sensitive hand levers for regulating the feed rates
- Combined with broaching press
- Pressing pressure readable via manometer
- The low pressure hydraulic system keeps the oil temperature low to ensure greater efficiency and safe operation
Quality Made in Canada
- Two-pressing combination
| Pressure force | 50 t |
| Piston stroke | 406 mm |
| Lowering speed | 6.5 mm/s |
| Press speed | 6.5 mm/s |
| Return speed | 8.0 mm/s |
| VPE | 1 |
| Broaching press | |
|---|---|
| Pressure force | 12 t |
| Piston stroke | 508 mm |
| Lowering speed | 10 mm/s |
| Press speed | 10 mm/s |
| Return speed | 32.8 mm/s |
| Diameter cylinder housing | 114 mm |
| Diameter cylinder | 102 mm |
| Diameter piston rod | 63.5 mm |
| Hole spacing for table height adjustment | 152 mm |
| Work table width | 330 mm |
| Work table length | 273 mm |
| Length of piston nose | 31,75 mm |
| Dimensions and weights | |
|---|---|
| Diameter cylinder | 178 mm |
| Diameter piston rod | 76.2 mm |
| Clear width | 1218 mm |
| Clear height max. | 1015 mm |
| Hole spacing for table height adjustment | 152 mm |
| Frame depth | 279 mm |
| Width/depth of machine feet | 812 mm |
| Work table width | 273 mm |
| Work table length | 1218 mm |
| Depth without foot | 305 mm |
| Length approx. | 2081 mm |
| Width/depth approx. | 812 mm |
| Height approx. | 2157 mm |
| Weight approx. | 1409 kg |
| Electrical Data | |
|---|---|
| Drive motor output | 3.7 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Hydraulic system | |
|---|---|
| Oil capacity (empty cylinder) | 38 l |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
