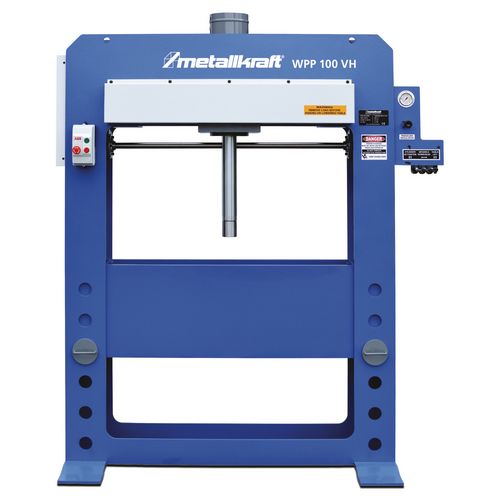

Fully hydraulic workshop press
WPP 100 VH
Robust construction with movable cylinder
20.490,00
EUR excl. Tax / pc(s).
24.383,10
EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 4050100
Are you interested in this product?
Put a request
Find Trader
Productdetails
- For pressing out and pressing in bearings, bolts and bushings as well as for repair and assembly work, press work, load tests, weld test tests and much more

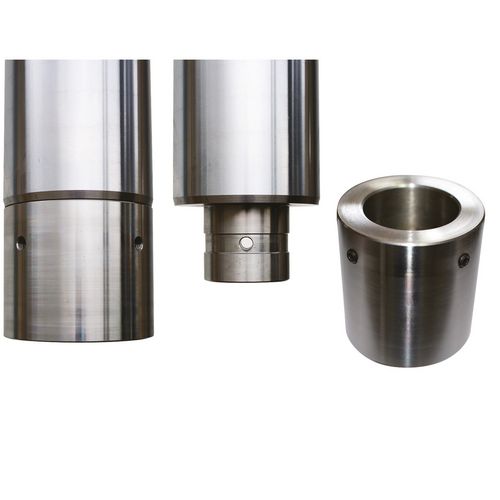

- With pressure mandrel adapter for two different pressing diameters of the cylinders
- Hydraulic control of the stroke and the right / left movement of the cylinder and the height adjustment of the table

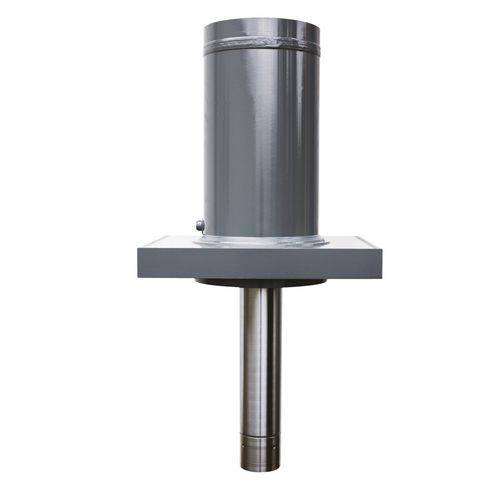

- Cylinder can be moved laterally via lever
- Pressure-sensitive hand levers for regulating the feed rates
- Pressing pressure readable via manometer
Quality Made in Canada
| Pressure force | 100 t |
| Piston stroke | 406 mm |
| Piston travel | 406 mm |
| Lowering speed | 6.7 mm/s |
| Press speed | 6.7 mm/s |
| Return speed | 8.3 mm/s |
| VPE | 1 |
| Dimensions and weights | |
|---|---|
| Diameter cylinder | 228 mm |
| Diameter piston rod | 101.6 mm |
| Diameter piston head | 228 mm |
| Clear width | 1218 mm |
| Clear height max. | 964 mm |
| Hole spacing for table height adjustment | 152 mm |
| Frame depth | 317 mm |
| Width/depth of machine feet | 812 mm |

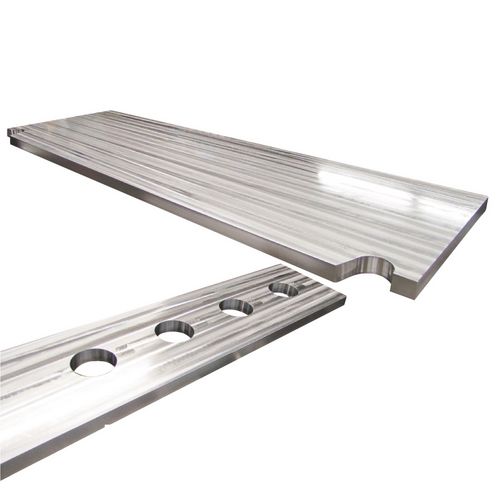

| Work table width | 311 mm |
| Work table length | 1218 mm |
| Length approx. | 1624 mm |
| Width/depth approx. | 812 mm |
| Height approx. | 2157 mm |
| Weight approx. | 1455 kg |
| Electrical Data | |
|---|---|
| Drive motor output | 7,5 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Hydraulic system | |
|---|---|
| Oil capacity (empty cylinder) | 56 l |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
