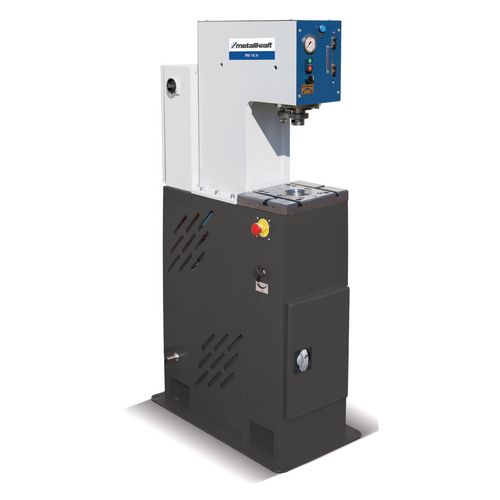

    Productimage for PM 16 H
    Brandimage to Product PM 16 H

    Punching machine

    PM 16 H

    for cutting, punching, deep drawing, punching, levelling and embossing with 16 t press force

    7.929,00 EUR excl. Tax / pc(s).
    9.435,51 EUR incl. 19% Tax / pc(s).
    Promotional price *
    7.399,00 EUR excl. Tax / pc(s).
    8.804,81 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 28.02.2025 in Germany.

    Art.-No. 3818316

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Variable forward and return travel limitation by adjustable inductive limit switches
    • Use of a wide variety of tools possible due to the variable forward and return travel limitation
    • Simple attachment of tools and devices to the work table via M12 holes and T-slots
    • Interchangeable tables make it possiblemade it possible to machine workpieces of different sizes
    • actuation of the lifting cylinder via foot switch
    • pressure adjustment via hydraulic valve
    • Recess in the worktable for cutting waste
    • Storage possibility for punching and cutting tools in the substructure



    • Variable forward and backward movement limitation
    • Use of different tools possible
    • Simple attachment of tools and devices to the work table üvia M12 bores and T-slots
    • Interchangeable tables allow the machining of workpieces of different sizes
    • Pressure adjustment via hydraulic valve



    Dimensions and weights
    Length approx.800 mm
    Width/depth approx.450 mm
    Height approx.1430 mm
    Weight approx.420 kg
    Electrical Data
    Drive motor output2,2 kW
    Supply voltage400 V
    Mains frequency50 Hz
    Punching station
    Punching force16 t
    Diameter x max. sheet thickness (steel 400 N/mm²)12 x 10 mm
    Max. diameter x sheet thickness (steel 400 N/mm²)30 x 4 mm
    Max. lift stroke70 mm
    VPE1
    Unit: pc(s).
    Packaging unit: 1
