HPS 115 DS

Combined machine with up to 5 processing stations and foot operation

29.250,00 EUR excl. Tax / pc(s).
34.807,50 EUR incl. 19% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.

Sicherheitsdatenblatt 2

Safetydatasheet 2

Art.-No. 3819115

Are you interested in this product?

Put a request

Find Trader

Productdetails

Punching station, flat steel shears, angle steel shears, sectional steel shears, available with notching station starting from HPS 45S
DS series with two working cylinders and two foot pedals for simultaneous use with punching station and sectional steel shears
Stepless adjustment of the stroke
Larger reach for punching station with 620 mm optional, available from HPS 55DS
Heavy and rigid welded construction
Standard with notching knife starting from HPS 45S
With powerful 400 Volt motor
V-notching knife, oversized punching device and larger throat depth for punching station available on request
Two-stage foot pedal for inching operation
Stamps and dies No. 1, No. 2, No. 3, No. 30, No. 45, No. 60 can be used with the standard delivery scope of the machine. Use of punch and die No. 4 and No. 80 optional (except HPS 40S)

Advantages of punching over drilling:

High time savings - cycle times
No chips
No cooling

Note:

All hydraulic sectional shears are delivered with oil

Data sheets
Sicherheitsdatenblatt 2
Safetydatasheet 2

Angled steel shears
Cutting capacity 90° L section	150 x 150 x 15 mm
Cutting capacity 45° L section	80 x 10 mm
Cutting capacity U-I section (accessory)	200 x 90 mm
Cutting capacity T section (accessory)	120 x 13 mm
Working height	1215 mm

Dimensions and weights
Length approx.	2040 mm
Width/depth approx.	950 mm
Height approx.	2180 mm
Weight approx.	2920 kg

Electrical Data
Drive motor output	11 kW
Supply voltage	400 V
Mains frequency	50 Hz

Flat steel shears
Material width x max. thickness	380 x 25 mm
Material max. width x thickness	600 x 15 mm
Knife length	610 mm
Angled cut 45° max. leg length x max. thickness	120 x 15 mm
Working height	935 mm

Notching station
Max. material thickness	13 mm
Max. notching width	60 mm
Max. notching depth	100 mm
Working height	100 x 100 x 13 mm

Punching station
Punching force	115 t
Diameter x max. sheet thickness (steel 400 N/mm²)	34 x 26 mm
Max. diameter x sheet thickness (steel 400 N/mm²)	55 x 16 mm
Reach	355 mm
Extended reach (factory option)	620 mm
Max. lift stroke	80 mm
Stroke count	25 /min
Working height	935 mm

Steel bar shears
Capacity round material	55 mm
Capacity square material	50 mm

VPE

Unit: pc(s).
Packaging unit: 1

punching station
Flat shear
Angle Shear

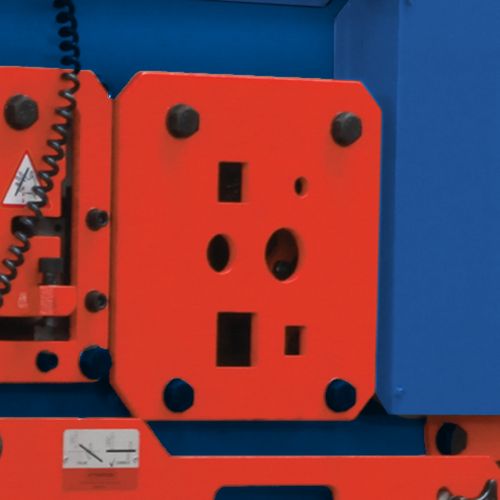

Section steel shears with round and square blade

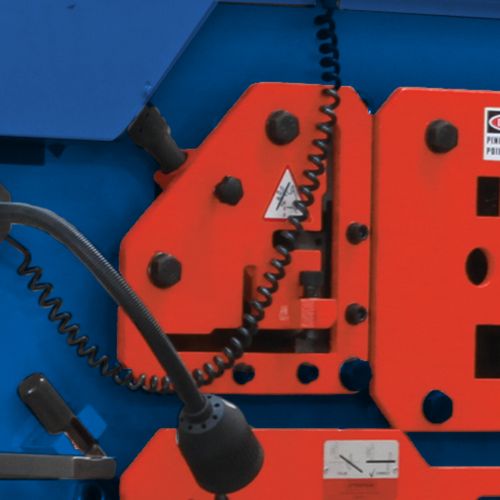

notching
work light
Electrical contact stroke
Stamp holder with bayonet lock
Stamp and Die Reductions # 1, # 2, # 3, # 30, # 45, # 60
Punch with adjustable stop with scale, flat steel scissors and notch with adjustable stops
hook wrench
2 working cylinders and 2 foot pedals
hydraulic oil
