| Work table length | 600 mm |
| Work table width | 460 mm |
| Work table height | 945 mm |
| Explanation about cutting performance | Values for stainless steel (tensile strength 600 N/mm²) only possible with optional blade set |
| Cutting angle | 90 ° |

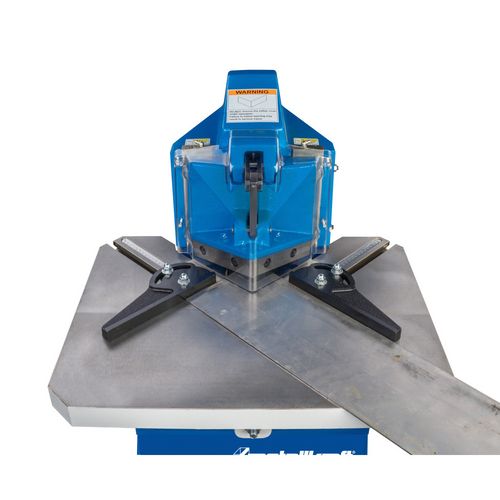

Pneumatic notching machine
AKM P
From
4.125,00
EUR excl. Tax / pc(s).
From 4.908,75 EUR incl. 19% Tax / pc(s).
From 4.908,75 EUR incl. 19% Tax / pc(s).
Promotional price *
From 3.569,00 EUR excl. Tax / pc(s).From 4.247,11 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 28.02.2025 in Germany.
Are you interested in this product?
Put a request
Find Trader
Variations
| General | Dimensions and weights | Price | Promotional price * | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Title | Art.-No. | Cutting pressure max. (t) | Cutting range length (mm) | Cutting range width (mm) | Cutting performance 90° (tensile strength 400 N/mm²) (mm) | Cutting performance 90° (tensile strength 600 N/mm²) (mm) | Number of strokes (/min) | Stroke adjustment (mm) | VPE | Max. length (mm) | Max. width/depth (mm) | Length approx. (mm) | Width/depth approx. (mm) | Weight approx. (kg) | EUR excl. Tax | EUR incl. 19% Tax | EUR excl. Tax | EUR incl. 19% Tax | |
| AKM 150-2 P | 3832150 | 2,2 | 154 | 154 | 2 | 1 | 40 | 2 | 1 | 860 | 800 | 660 | 600 | 170 | 3.779,00 | 4.497,01 | |||
| AKM 130-3 P | 3833130 | 2.2 | 130 | 130 | 3 | 1.5 | 50 | 3 | 1 | 1020 | 660 | 820 | 460 | 160 | 3.569,00 | 4.247,11 | |||
Select Attributes
General
- Cutting pressure max.
- Cutting range length
- Cutting range width
- Cutting performance 90° (tensile strength 400 N/mm²)
- Cutting performance 90° (tensile strength 600 N/mm²)
- Number of strokes
- Stroke adjustment
- VPE
Dimensions and weights
- Max. length
- Max. width/depth
- Length approx.
- Width/depth approx.
- Weight approx.
Price
- excl. Tax
- incl. 19% Tax
Promotional price
- excl. Tax
- incl. 19% Tax
Productdetails
- Stable construction
- For quick rectangular notching of metal sheets
- User-friendly and energy-saving thanks to pneumatic drive
- Solid table with recessed scales and T-slots for precise adjustment of the pivotable stops
- Finger protection cover made of Plexiglas for optimum view of the cutting edge
- Operation via foot pedal
| Dimensions and weights | |
|---|---|
| Max. height | 1260 mm |
| Height approx. | 1260 mm |
| Noise emission | |
|---|---|
| Sound pressure level operation (1m distance) | 68 dB |
| Pneumatic connection | |
|---|---|
| Working preasure | 7 bar |
| Air consumption per cycle | 18 l |
