| Cutting ranges | |
|---|---|
| 0° round (pipe) | 125 mm |
| 0° round (full material) | 87.5 mm |
| 0° rectangle horizontal (hollow) | 125 x 120 mm |
| 0° rectangle upright (hollow) | 120 x 125 mm |
| +45° round (pipe) | 80 mm |
| +45° round (full material) | 56 mm |
| +45° rectangle horizontal (hollow) | 70 x 110 mm |
| +45° rectangle upright (hollow) | 70 x 110 mm |
| +60° round (pipe) | 45 mm |
| +60° round (full material) | 31.5 mm |
| +60° rectangle horizontal (hollow) | 40 x 70 mm |
| +60° rectangle upright (hollow) | 40 x 70 mm |

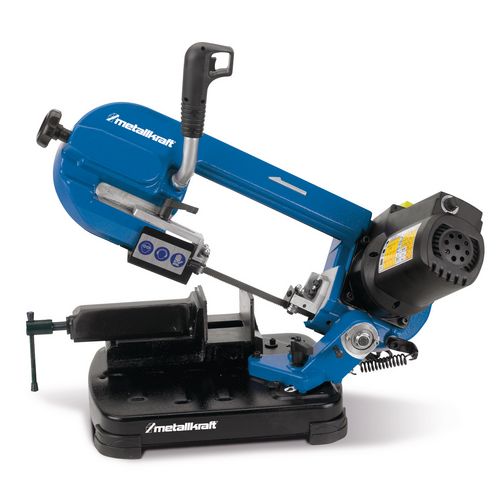

Miter metal band saw
MBS 125
Especially quiet and precise. Ideal for use on construction sites and during assembly
659,00
EUR excl. Tax / pc(s).
784,21 EUR incl. 19% Tax / pc(s).
784,21 EUR incl. 19% Tax / pc(s).
Promotional price *
599,00 EUR excl. Tax / pc(s).712,81 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 28.02.2025 in Germany.
Art.-No. 3630125
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Ideal for sawing steel, aluminum, copper, PVC and Teflon
- Stepless, electronic speed control from 30 - 80 m / min
- Particularly quiet - up to 60% quieter than comparable band saws

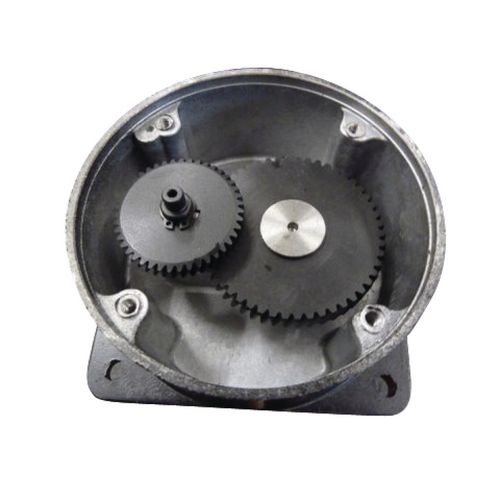

- Low vibration and wear thanks to special gearbox with two large gears made of hardened steel

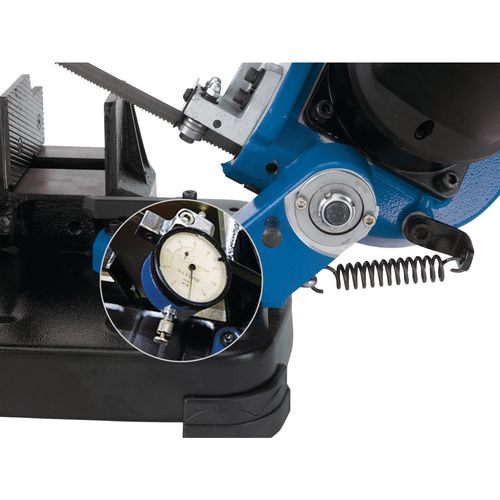

- Guaranteed cutting accuracy of max. 0.3 mm course over 100 mm cutting length
- Each machine individually tested for precision in Italy

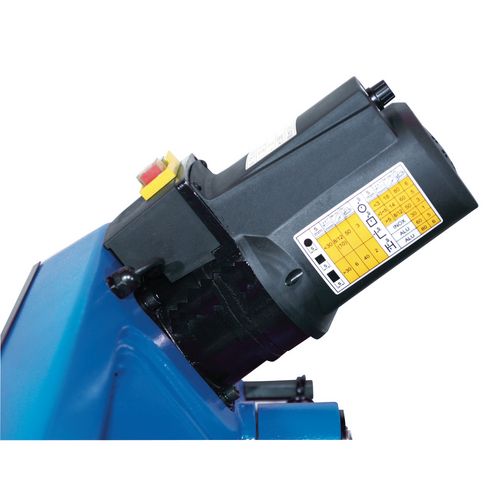

- Low-speed DC drive motor with carbon brushes for up to 10 times longer life
- Electronic temperature and ampere recording monitoring against overload

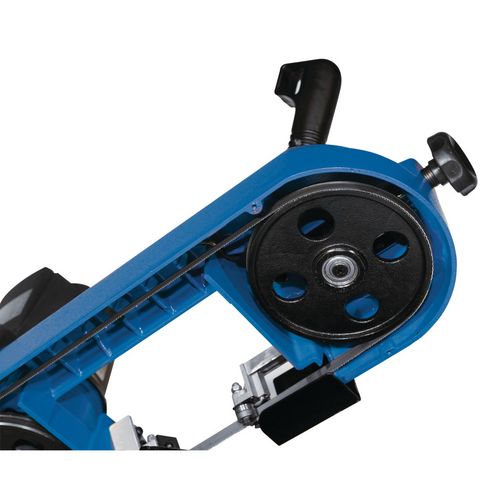

- Cast strip wheels with ground running surface without rubber pads, therefore suitable for dry and wet cutting
- Massive saw bar made of die-cast aluminum (readjustable from MBS 125) and with sturdy transport lock
- Two movable, adjustable saw band guides with chip scraper made of metal
- Particularly stable base plate with non-slip feet
- Very service-friendly, as components are easily accessible
- Impressively quiet!
- Highest life
- Infinitely 30-80 m / min
- Use of coolant on all models possible
| Dimensions and weights | |
|---|---|
| Max. length | 350 mm |
| Max. width/depth | 700 mm |
| Max. height | 660 mm |
| Length approx. | 700 mm |
| Width/depth approx. | 350 mm |
| Height approx. | 410 mm |
| Weight approx. | 23.5 kg |
| Electrical Data | |
|---|---|
| Absorbed power | 1.01 kW |
| Engine efficiency class | IE2 |
| Total connected load | 1010 mm |
| Duty cycle | 60 % |
| Supply voltage | 230 V |
| Mains frequency | 50 Hz |
| Machine data | |
|---|---|
| Saw band speed(s) | 30 – 80 m/min |
| Speed levels | stepless |
| Saw band length | 1440 mm |
| Saw band width | 13 mm |
| Saw band thickness | 0,65 mm |

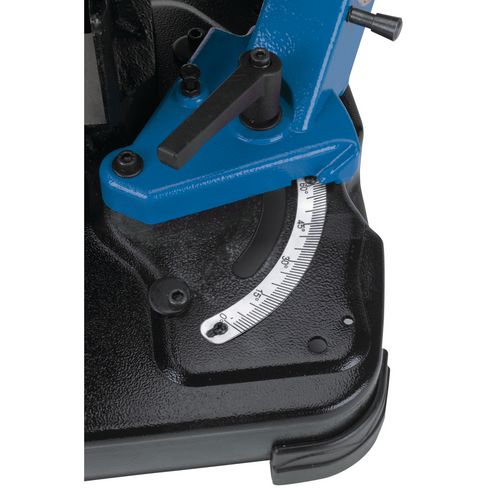

| Cutting angle | 0 – 60 ° |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- material stop
- Bi-metal saw band 1440 x 13 x 0.65 mm M42 Z6-10
