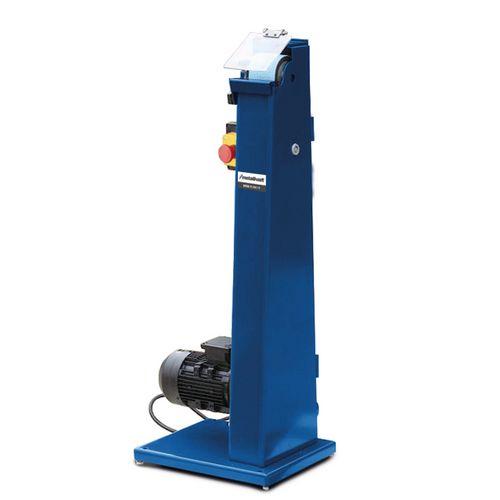

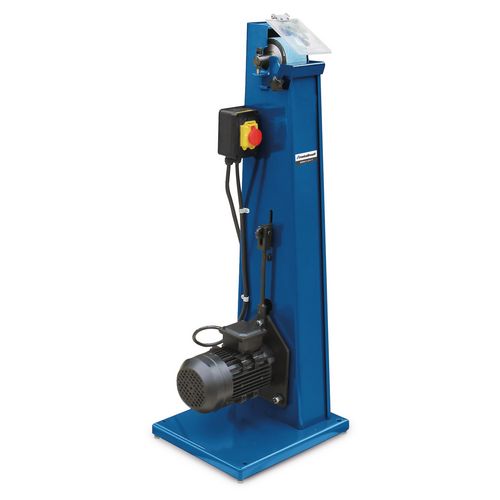

    • Productimage for MBSM 75-200-1 V (230 V)
    • Productimage for MBSM 75-200-1 V (230 V)
    • Productimage for MBSM 75-200-1 V (230 V)
    • Productimage for MBSM 75-200-1 V (230 V)
    Brandimage to Product MBSM 75-200-1 V (230 V)

    Belt sander

    MBSM 75-200-1 V (230 V)

    Vertical metal belt grinder for grinding and rounding

    799,00 EUR excl. Tax / pc(s).
    950,81 EUR incl. 19% Tax / pc(s).
    Promotional price *
    739,00 EUR excl. Tax / pc(s).
    879,41 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 28.02.2025 in Germany.

    Art.-No. 3925070

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Particularly space-saving due to vertical design
    • With powerful motor for high sanding performance
    • Virtually vibration-free operation for the best sanding results
    • Can be used with and without suction
    • Simple adjustment of the belt run via adjusting screw
    • Automatic retensioning of the sanding belt thanks to spring-loaded
    • belt tensioning system
    • Protective disc can be folded away



    Dimensions and weights
    Length approx.420 mm
    Width/depth approx.330 mm
    Height approx.1080 mm
    Weight approx.45 kg
    Electrical Data
    Drive motor output1.1 kW
    Motor speed(s)2800 min¯¹
    Supply voltage230 V
    Mains frequency50 Hz
    Extraction
    Extraction duct nominal width outside76 mm
    Sanding machine
    Max. sanding width75 mm
    Sanding belt length2000 mm
    Sanding belt width75 mm
    Circumferential belt speed(s)26 m/s
    Drive wheel diameter180 mm
    Contact wheel diameter102 mm
    VPE1
    Unit: pc(s).
    Packaging unit: 1
