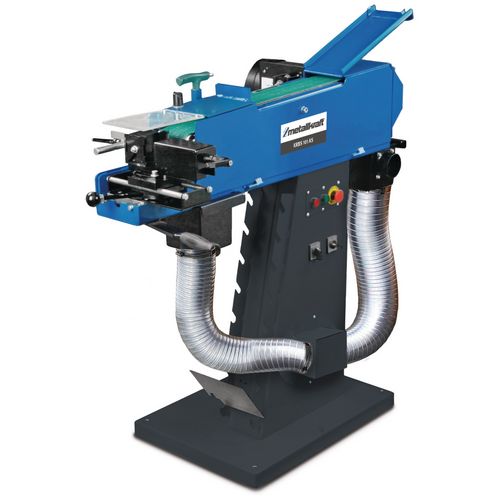

Combined tube, profile and belt sander
KRBS 101 AS
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 3921005
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Integrated extraction system
- For deburring with practical workpiece support and spark box

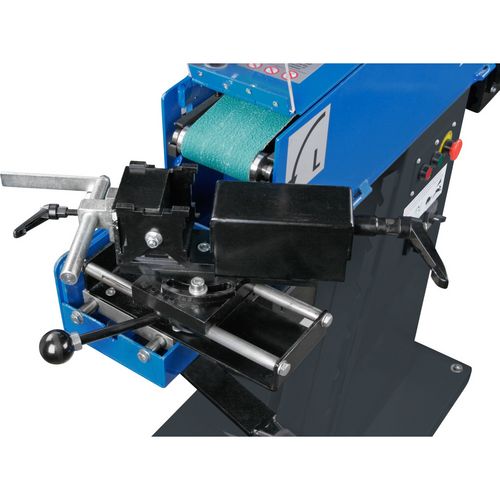

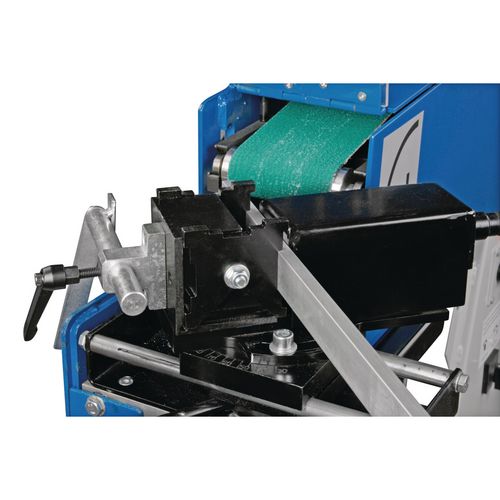

- Convenient operation thanks to easily adjustable clamping device

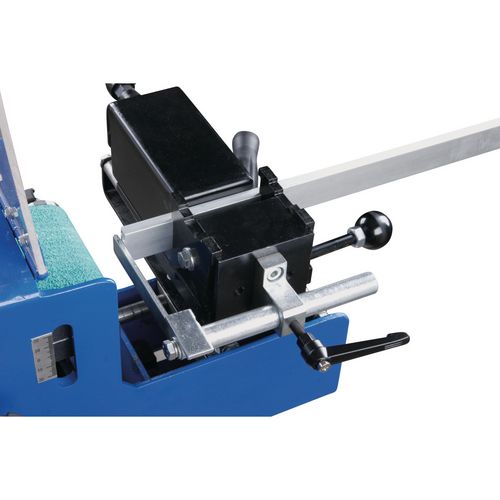

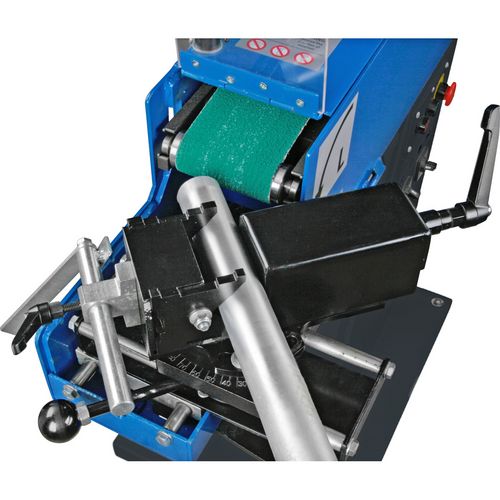

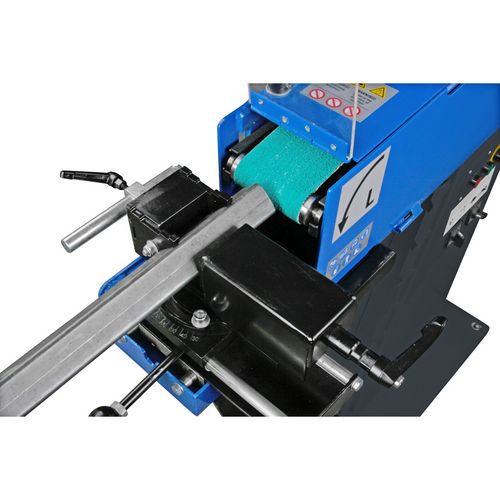

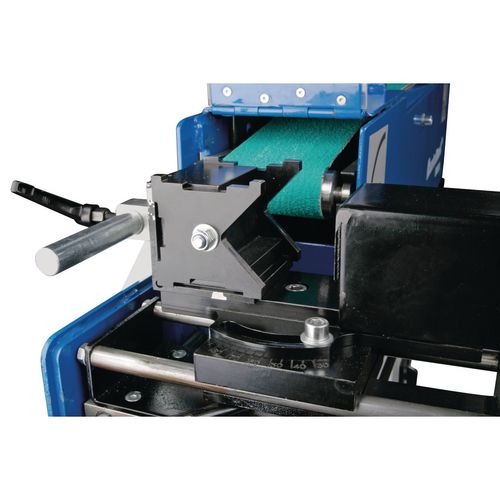

- The rotating clamping jaws of the clamping device enable secure clamping of square tubes, round tubes and flat steel

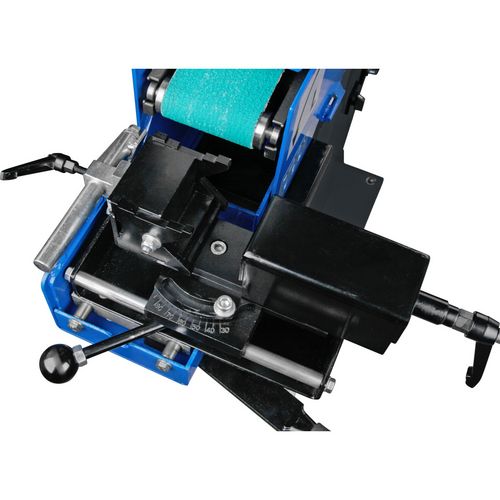

- Adjustable grinding angle from 30 - 90° and from 0° - 60

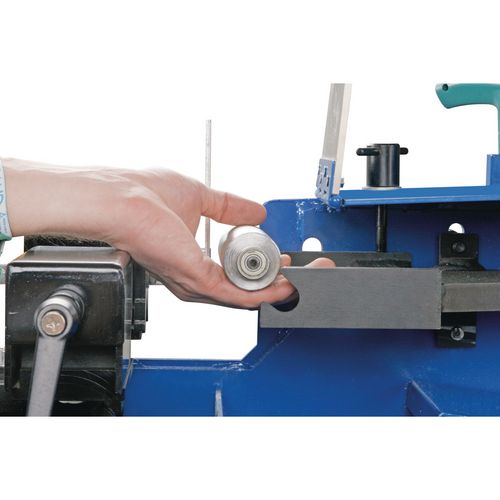

- The front contact roller can be replaced quickly and easily without tools thanks to the optimized quick-change holder
- Particularly durable thanks to larger and improved roller bearings
- Practical contact roller holders integrated in the base frame
- Extensive range of contact rollers for various pipe diameters available as accessories

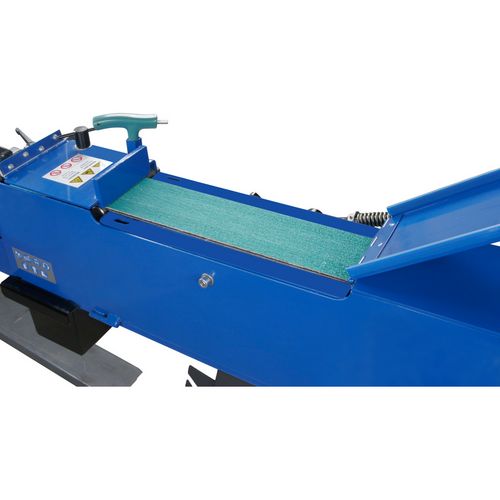

- Quick changeover between pipe grinding and belt grinding possible
- Powerful motor
- Almost all settings can be made without tools (operating tool included in the scope of delivery)

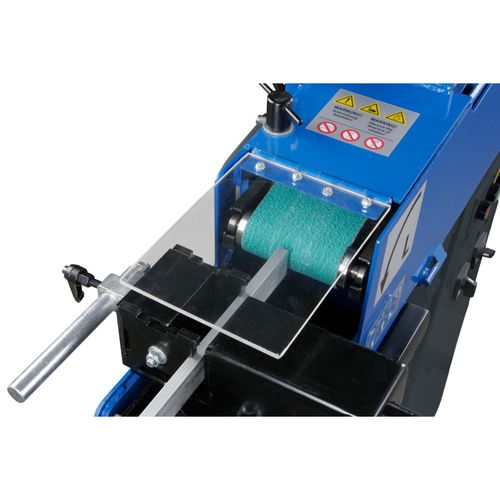

- Large, foldable protective screen with optimum field of vision
- Two belt speeds for optimum adaptation to the respective material (15 m/s ideal for stainless steel and aluminum, 30 m/s perfect for steel)

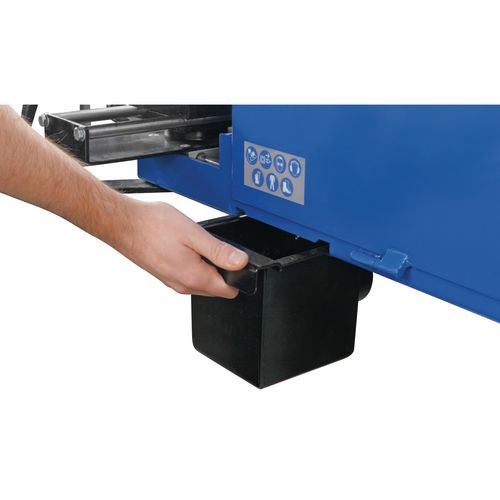

- With two easily removable spark boxes
| Dimensions and weights | |
|---|---|
| Length approx. | 1250 mm |
| Width/depth approx. | 750 mm |
| Height approx. | 1140 mm |
| Weight approx. | 159 kg |
| Electrical Data | |
|---|---|
| Drive motor output | 2.5 / 3.3 kW |
| Motor speed(s) | 1400 / 2800 min¯¹ |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Extraction | |
|---|---|
| Extraction duct nominal width outside | 2 x 74 mm |
| Extraction duct nominal width inside | 2 x 70 mm |
| Sanding machine | |
|---|---|
| Sanding belt length | 2000 mm |
| Sanding belt width | 100 mm |
| Circumferential belt speed(s) | 15/30 m/s |
| Adjustable grinding angle | 30 – 90 (0 – 60) ° |
| Workpiece | |
|---|---|
| Min. pipe diameter | 20 mm |
| Max. pipe diameter | 78 mm |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- 1 x K 40 grit sanding belt for steel and stainless steel
- Two spark boxes
- One wrench
- Contact roller 42 mm
- Dust bag
