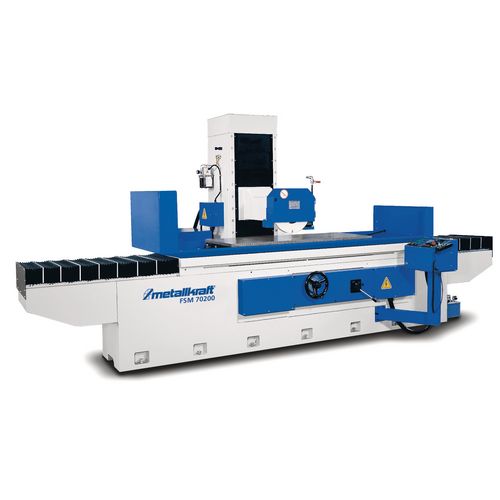

Precision surface grinding machine
FSM 70200
With NC-controlled vertical feed
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 3937020
Are you interested in this product?
Put a request
Find Trader
Productdetails
- For precision surface grinding
- Maximum stiffness and stability thanks to tension-free re-heated and hardened cast iron construction
- High-quality spindle with precision cone roller bearings (circular accuracy 2 microns)
- Electromagnetic clamping plate for fixing the workpiece including automatic demagnetization function
- Automatic central lubrication for all slides and spindles
- Hand scraped and Turcite-B-coated V-flat guides guarantee extremely uniform, low-friction movement and highest precision
- Halogen working light dustproof, completely contact-proof and protected against jet water according to IP65
- Second grinding wheel flange included in delivery

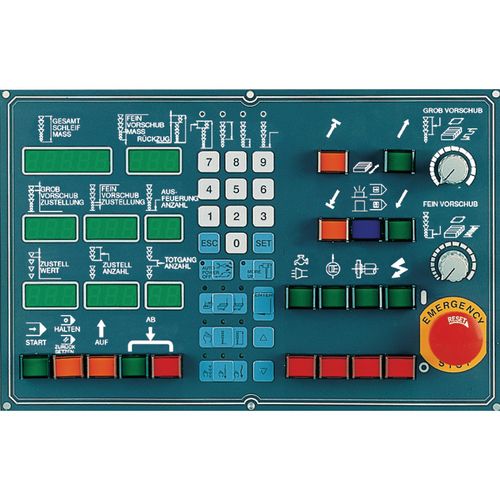

Automatic feed control AD 5

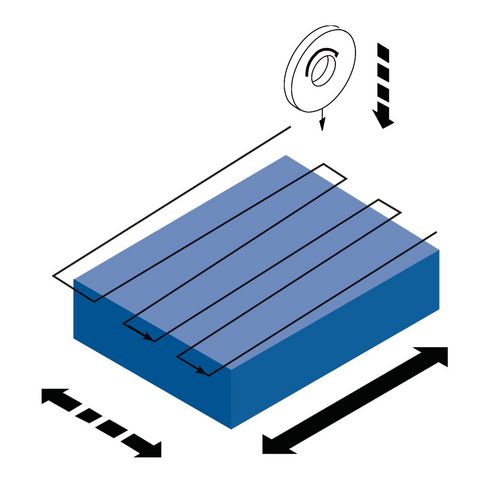

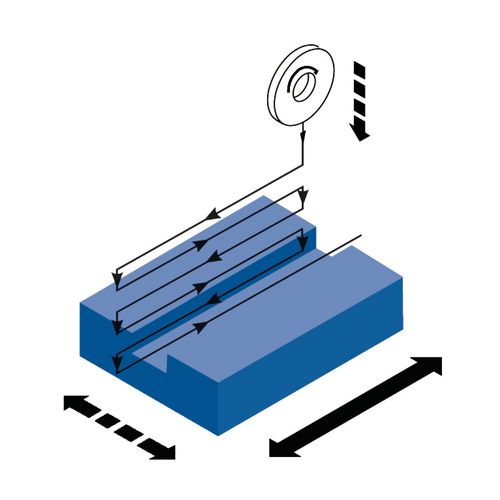

The fsM series models are equipped with automatic feed control (AD 5). Different grinding cycles are available: surface loops with delivery at the starting point, groove loops with delivery at the starting point, groove loops with delivery at the start and end points. The delivery of the grinding wheel can be individually designed depending on the workpiece. The total grinding size is divided into coarse and fine delivery, the delivery steps can be freely entered, depending on the application, with a minimum resolution of up to 0.001mm. The possibility to program dead runs after a certain number of delivery steps as well as passages for firing after reaching the grinding measure provides the best grinding results.
| Dimensions and weights | |
|---|---|
| Length approx. | 6000 mm |
| Width/depth approx. | 2550 mm |
| Height approx. | 2040 mm |
| Weight approx. | 9000 kg |
| Electrical Data | |
|---|---|
| Drive motor output | 7.46 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Grinding wheel(s) | |
|---|---|
| External diameter | 405 mm |
| Width | 50 mm |
| Drill hole | 127 mm |
| Spindle | |
|---|---|
| Speed | 1450 min-1 |
| Surface grinding table | |
|---|---|
| Clamping surface length | 2000 mm |
| Clamping surface width | 700 mm |
| X axis | |
|---|---|
| Travel speed | 5 – 25 m/min |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- Grinding wheel flange
- Grinding wheel
- Balancing mandrour
- Operating tool
| Clamping plate | Electro Magnet |
| Demagnetizing device | Automatic |
| Parallel hone device | ✔ |
| Coolant device | ✔ |
| Work light | Halogen working light according to IP65 |
| Alignment feet | ✔ |
